| range of product | Harmony Relay |
|---|---|
| series name | Interface relay |
| product or component type | Plug-in relay |

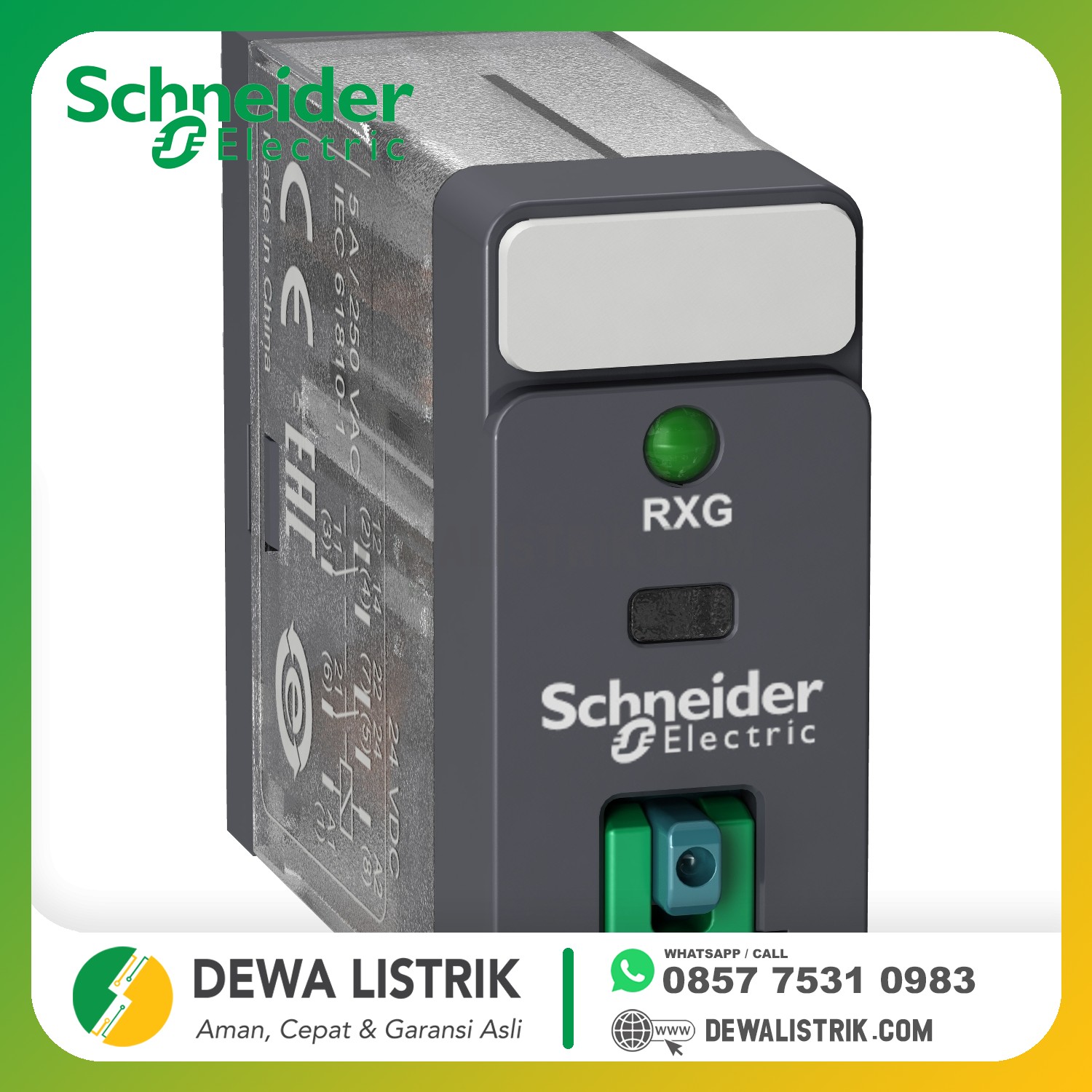

| device short name | RXG |
| contacts type and composition | 2 C/O |
| status LED | With |
|---|---|
| contacts material | Silver alloy (AgSnO2In2O3) |
| Maximum contact resistance | 100 mOhm |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to IEC 5 A at 250 V (AC) conforming to UL |
| maximum switching voltage | 250 V AC 30 V DC |
| load current | 5 A at 250 V AC |
| maximum switching capacity | 1250 VA |
| minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| operating rate | <= 1800 cycles/hour under load <= 18000 cycles/hour no-load |
| utilisation coefficient | 20 % |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 6 kV 1.2/50 µs |
| dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation |
| Coil resistance | 1100 Ohm +/- 10 % |
| insulation resistance | 1000 MOhm at 500 V DC |
| test levels | Level A group mounting |
| mounting position | Any position |
| drop-out voltage threshold | >= 0.1 Uc DC |
| Coil insulation class | Class F |
| Operate time | 20 ms |
| Release time | 20 ms |
| [Uc] control circuit voltage | 24 V DC |
| safety reliability data | B10d = 100000 |
| colour of cover | Standard |
| control type | Lockable test button |
| local signalling | Flag |
| torque value | 0.8 N.m |
| net weight | 0.02 kg |
| device presentation | Complete product |
| vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
|---|---|
| IP degree of protection | IP40 |
| shock resistance | 20 gn in operation 100 gn not in operation |
| protection category | RT I |
| standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| product certifications | UL CE CSA EAC |
| pollution degree | 2 |
| overvoltage category | III |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…70 °C |
| relative humidity | 10…85 % |
