| Range of product | PowerLogic |
|---|---|

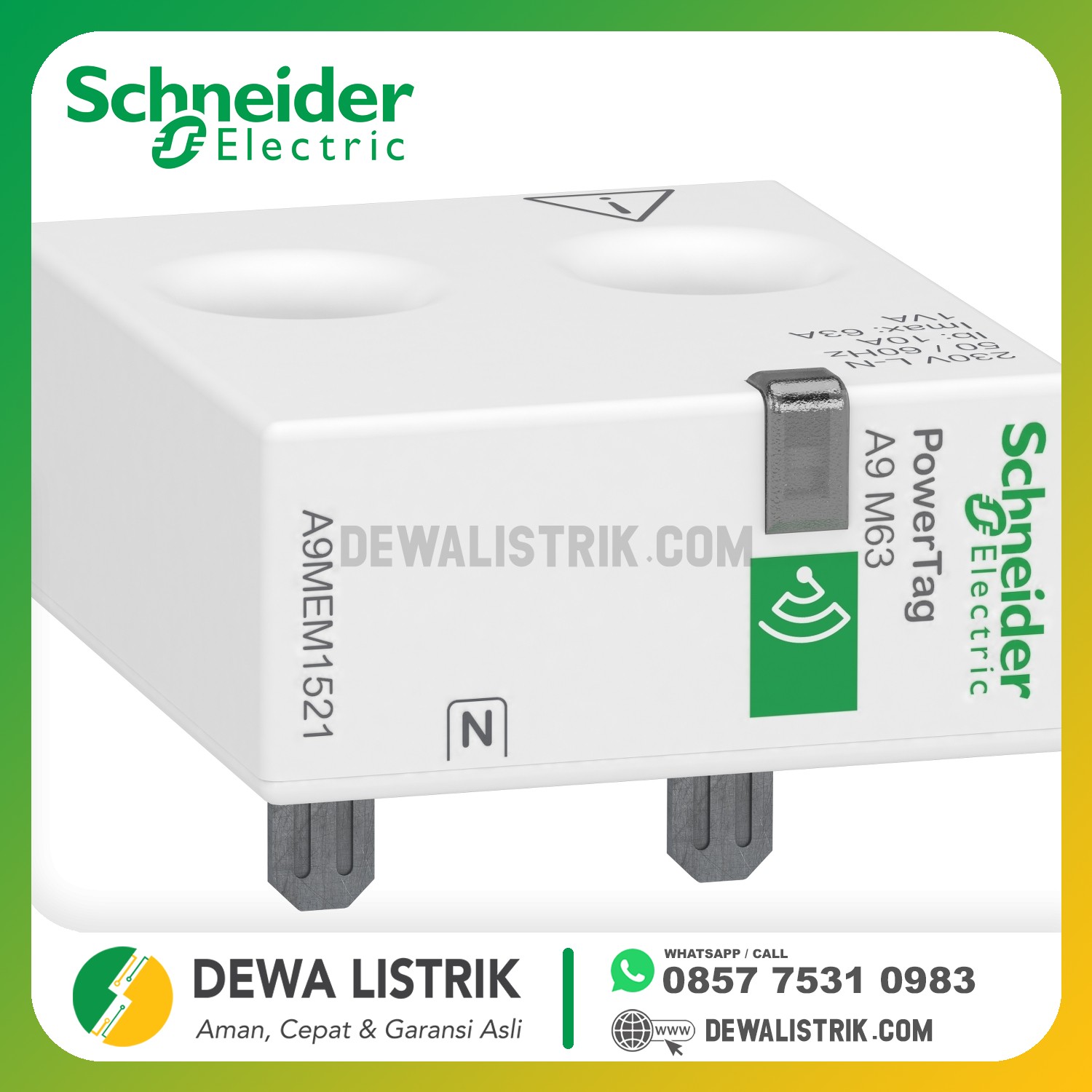

| product name | PowerTag A9 M63 |
| product or component type | Energy sensor |
| Poles | 1P + N |
| Maximum current [Imax] | 63 A |
| [Ib] basic current | 10 A |
| starting current | 40 mA |
| saturation current | 130 A |
| product specific application | Overload alarm Cost allocation Circuit monitoring Load monitoring Energy management |
| Concentrator compatibility | Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD |
| range compatibility | Acti 9 iKQE RCBO Multi 9 C60 Multi 9 ID Multi 9 C32N Multi 9 C65 Acti 9 iID Acti 9 iID K Acti 9 iK60 Acti 9 iKQ Acti 9 K60 Acti 9 Reflex iC60 Acti 9 iC65 Acti 9 DT60 Acti 9 iC60 single terminal |
| type of measurement | Power factor Current Active energy Active power Voltage |
| accuracy class | Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 1 active energy conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12 |
| mounting location | Top |
| mounting support | On circuit breaker |
| product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 |
| maximum emission power | 10 mW |
| mounting mode | By screws (terminals) |
|---|---|
| Electrical connection (voltage sensing & power supply) | Connector tooth |
| cable cross section | 1 rigid cable 1.5…16 mm² 2 stranded cable 1.5…2.5 mm² 2 rigid cable 1.5…2.5 mm² 1 stranded cable 1.5…16 mm² |
| supply voltage | 200...240 V AC, +/- 20 % |
| network frequency | 50 Hz 60 Hz |
| Maximum power consumption | 1 VA |
| standards | IEC 61557-12 IEC 61010-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328 |
| height | 16.5 mm |
| width | 36 mm |
| depth | 43 mm |
| net weight | 17.5 g |
| colour | White (RAL 9003) |
| quality labels | CE |
|---|---|
| directives | 2014/53/EU - radio equipment directive |
| operating altitude | 0...2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| overvoltage category | III conforming to IEC 61010-1 |
| measurement category | Category III conforming to IEC 61010-2-030 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| pollution degree | 3 |
| relative humidity | 0…95 % at 45 °C conforming to IEC 60721-3-3 |
| vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| environmental characteristics | Dustproof class 3S3 conforming to IEC 60721-3-3 Salt mist class 3C2 conforming to IEC 60721-3-3 Indoor use |
