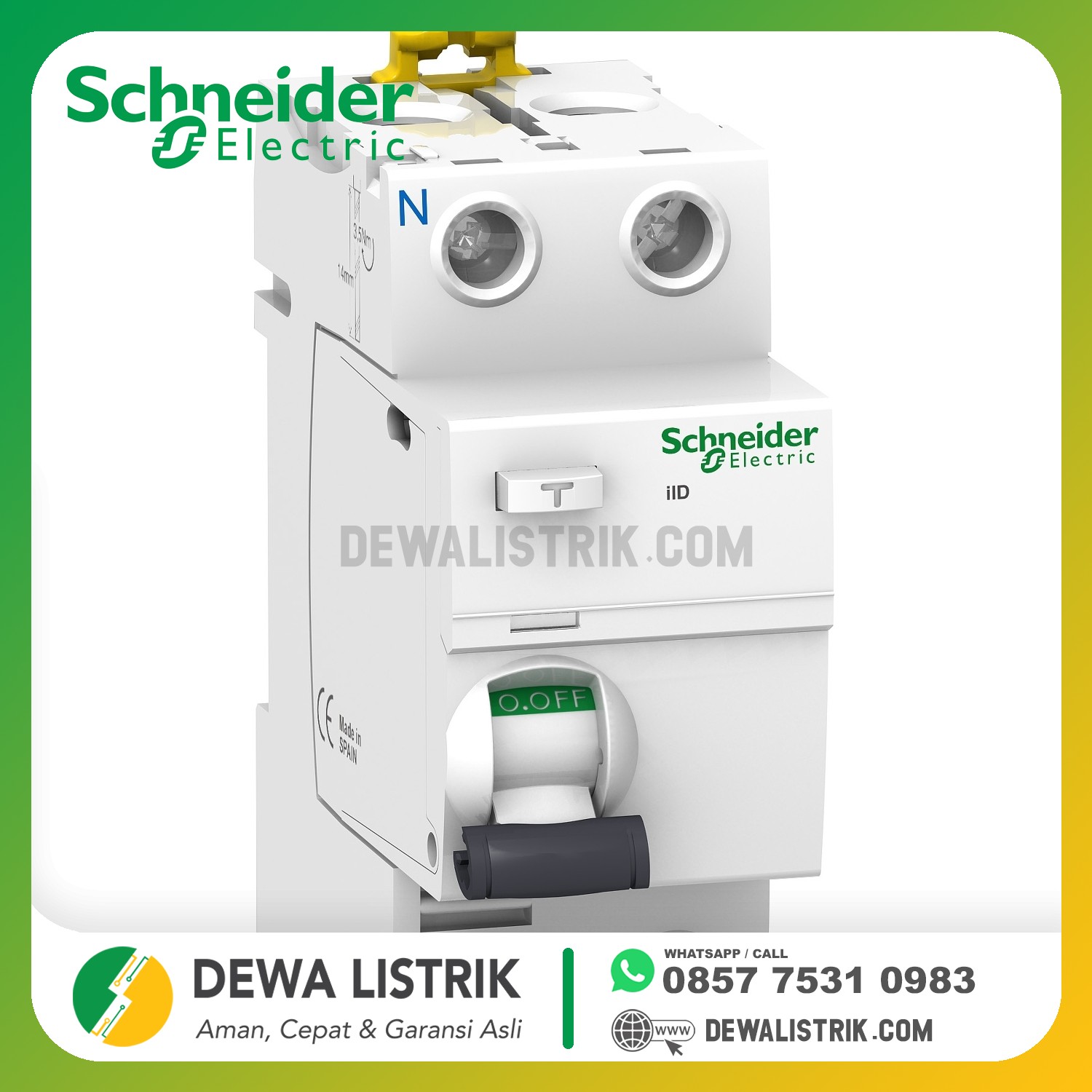

SCHNEIDER - ACTI9 IID 2P 16A 10MA AC-TYPE

Category: ACTI9
No Referensi: A9R10216
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
Acti 9
product name
Acti 9 iID
product or component type
Residual current circuit breaker (RCCB)
device short name
IID
poles description
2P
neutral position
Left
[In] rated current
16 A
network type
AC
earth-leakage sensitivity
10 mA
earth-leakage protection time delay
Instantaneous
earth-leakage protection class
Type AC
Complementary
device location in system
Outgoer
network frequency
50/60 Hz
[Ue] rated operational voltage
220...240 V AC 50/60 Hz
residual current tripping technology
Voltage independent
rated breaking and making capacity
Idm 1500 A
Im 1500 A
rated conditional short-circuit current
10 kA
[Ui] rated insulation voltage
500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
6 kV
surge current
250 A
contact position indicator
Yes
control type
Toggle
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
4
height
91 mm
width
36 mm
depth
73.5 mm
net weight
0.21 kg
colour
White
mechanical durability
20000 cycles
electrical durability
AC-1: 15000 cycles
locking options description
Padlocking device
connections - terminals
Single terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible
Single terminal top or bottom 1…25 mm² flexible with ferrule
wire stripping length
14 mm for top or bottom connection
tightening torque
3.5 N.m top or bottom
Environment
standards
EN/IEC 61008-1
IP degree of protection
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
pollution degree
3
electromagnetic compatibility
8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
ambient air temperature for operation
-5…60 °C
ambient air temperature for storage
-40…85 °C
