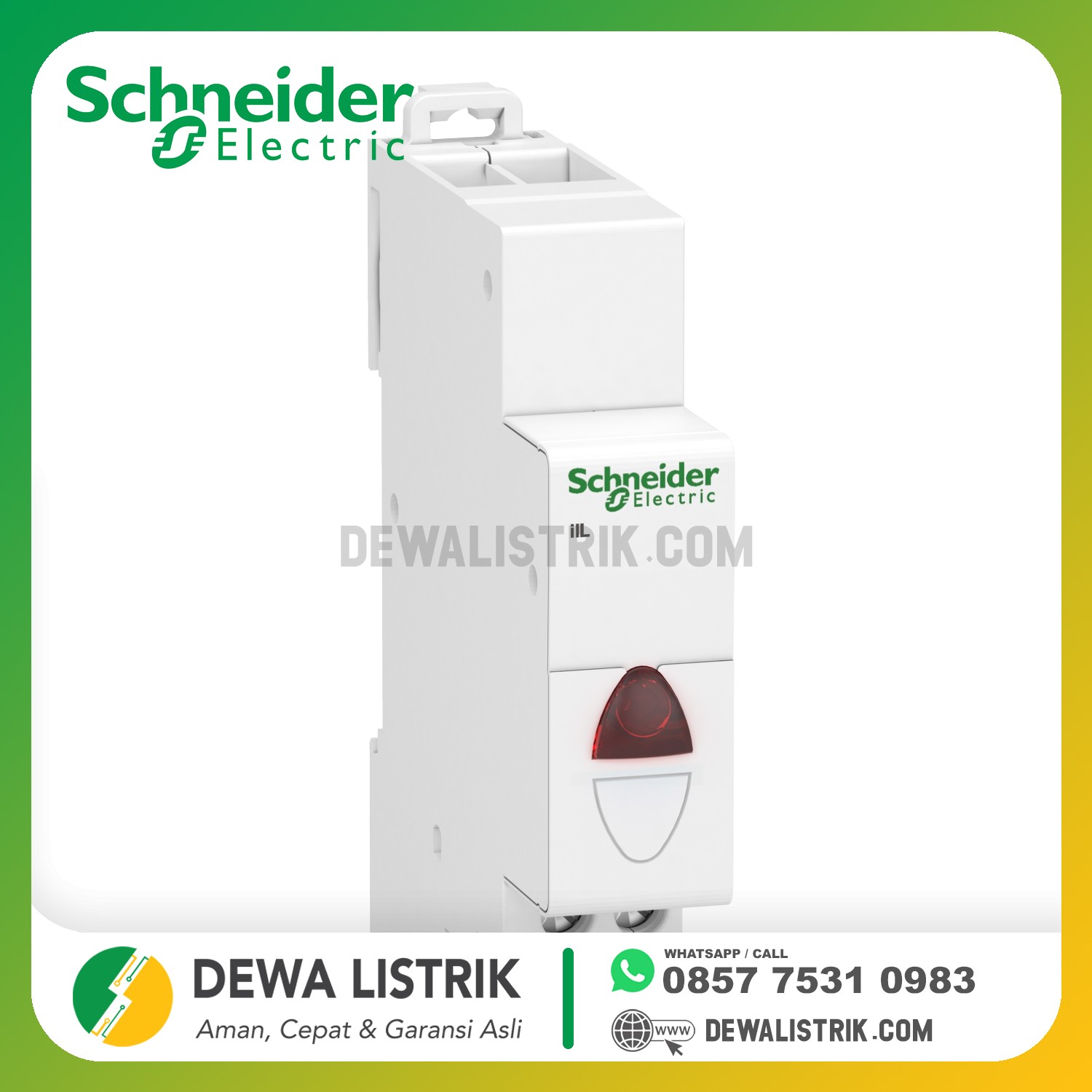

SCHNEIDER - ACTI9 IIL SINGLE INDICATOR LIGHT RED

Category: ACTI9
No Referensi: A9E18320
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Acti 9
product name
Acti 9 iIL
product or component type
Modular pilot ligth
device short name
IIL
[Us] rated supply voltage
110...230 V AC at 50/60 Hz
110...130 V DC
Complementary
indicator light
1 LED red, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
mounting mode
Fixed
mounting support
Symmetrical DIN rail
comb busbar and distribution block compatibility
Upside: ProDis
9 mm pitches
2
height
82 mm
width
18 mm
depth
69.5 mm
colour
White (RAL 9003)
auxiliary connection terminal
Tunnel type terminal 1 cable(s) rigid 0.5 mm²
Tunnel type terminal 2 cable(s) rigid 2.5 mm²
Tunnel type terminal 1 cable(s) flexible 0.5 mm²
Tunnel type terminal 2 cable(s) flexible 2.5 mm²
Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
wire stripping length
9 mm
tightening torque
1 N.m
Environment
standards
IEC 60947-5-1
IP degree of protection
IP2
IPxx B
pollution degree
3
tropicalisation
2
relative humidity
95 % at 55 °C
ambient air temperature for operation
-35…70 °C
ambient air temperature for storage
-40…80 °C
