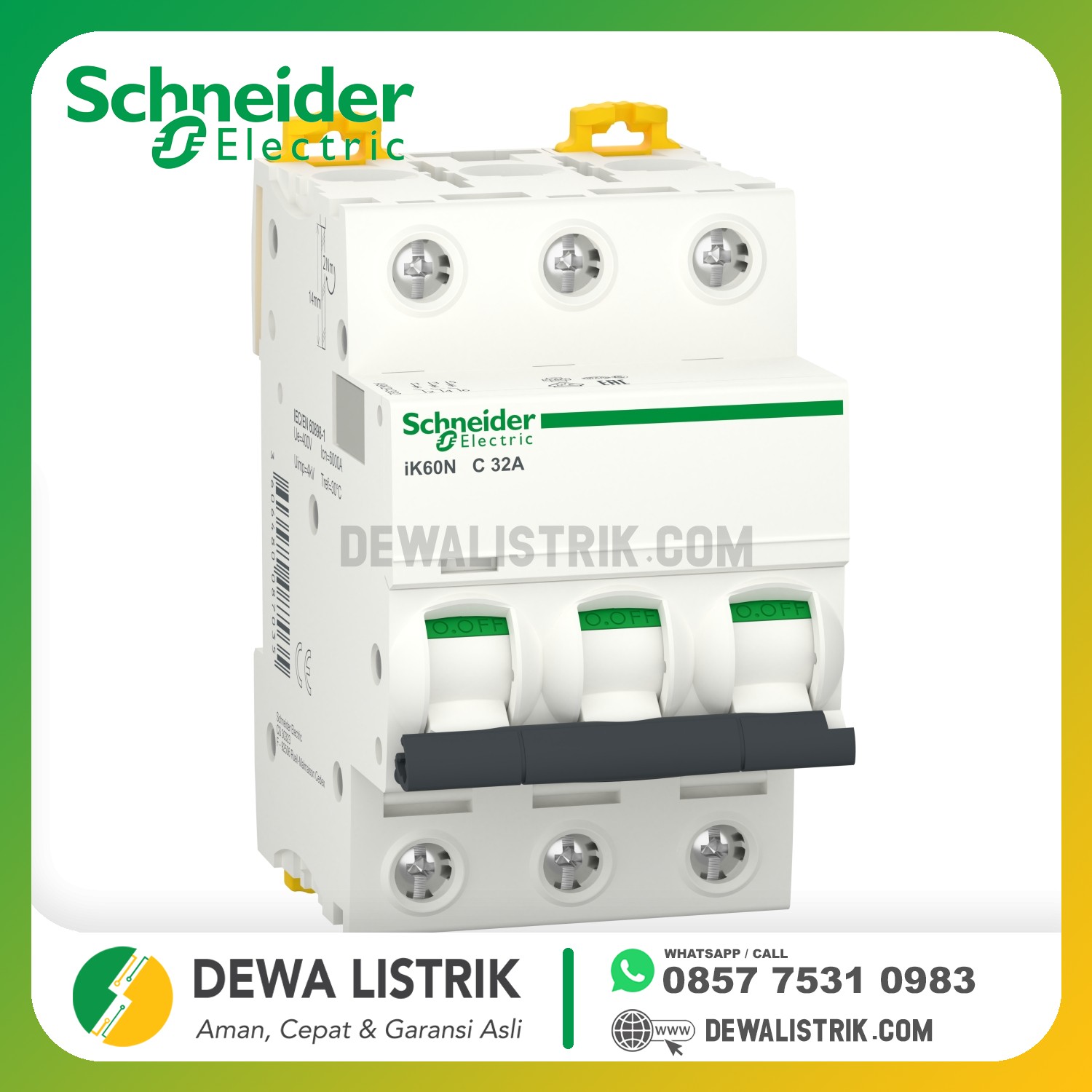

SCHNEIDER - ACTI9 IK60N 3P 32A C MINIATURE

Category: ACTI9
No Referensi: A9K24332
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
device application
Distribution
range
Acti 9
product name
Acti 9 iK60
product or component type
Miniature circuit-breaker
device short name
IK60N
poles description
3P
number of protected poles
3
[In] rated current
32 A at 30 °C
network type
AC
trip unit technology
Thermal-magnetic
curve code
C
breaking capacity
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
suitability for isolation
Yes conforming to EN/IEC 60898-1
standards
EN/IEC 60898-1
product certifications
SNI
Complementary
network frequency
50/60 Hz
magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
6000 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz
limitation class
3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage
440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage
4 kV conforming to EN/IEC 60898-1
contact position indicator
No
control type
Toggle
local signalling
ON/OFF indication
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
6
height
85 mm
width
54 mm
depth
78.5 mm
net weight
300 g
colour
White
mechanical durability
20000 cycles
electrical durability
10000 cycles
locking options description
Padlocking device
connections - terminals
Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
wire stripping length
14 mm for top or bottom connection
tightening torque
2 N.m top or bottom
earth-leakage protection
Without
Environment
IP degree of protection
IP20 conforming to IEC 60529
pollution degree
2 conforming to EN/IEC 60898-1
overvoltage category
II
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
