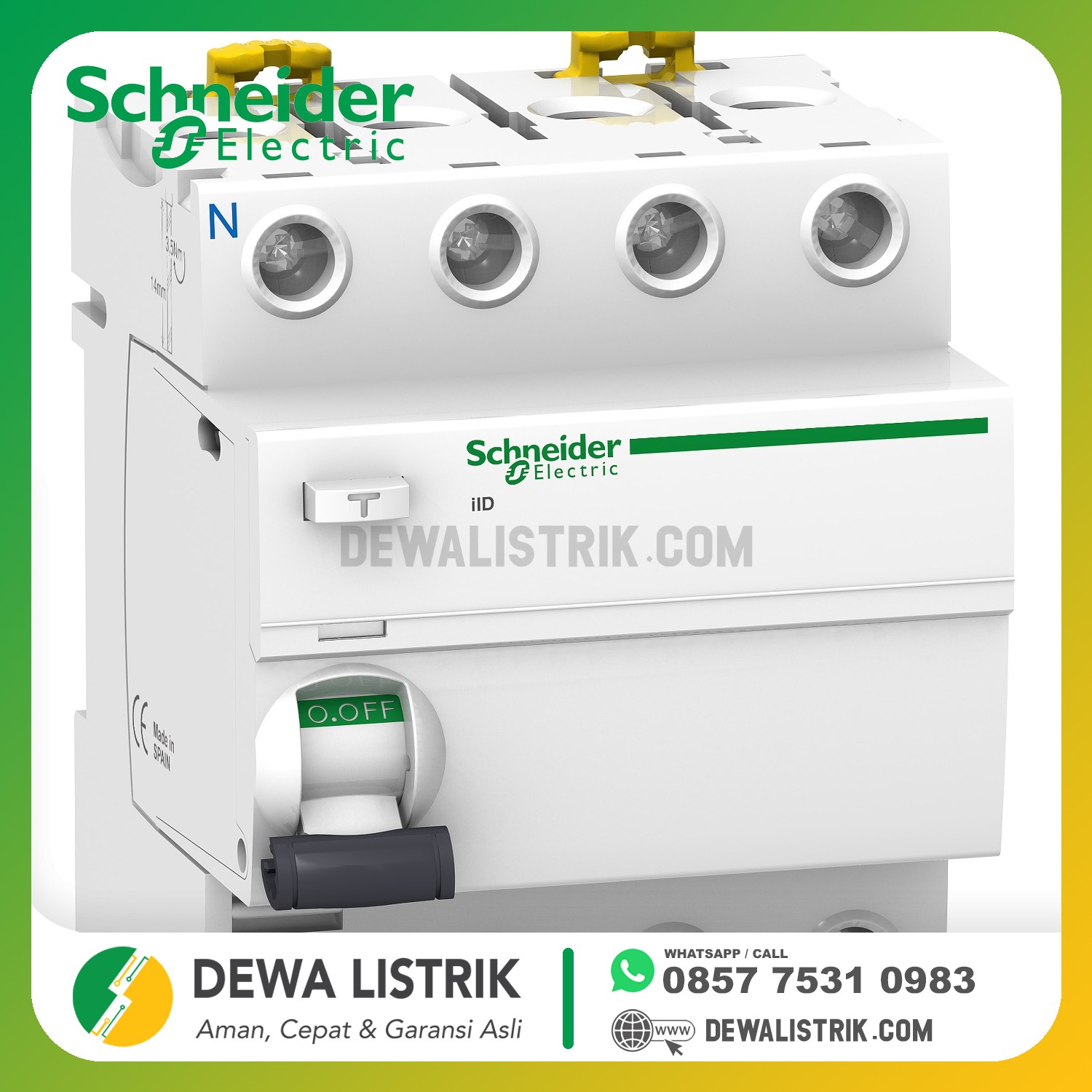

SCHNEIDER - ACTI9 RCCB ILD 4P 40A 300MA

Category: ACTI9
No Referensi: A9R74440
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
Acti 9
product name
Acti 9 iID
product or component type
Residual current circuit breaker (RCCB)
device short name
IID
poles description
4P
neutral position
Left
[In] rated current
40 A
network type
AC
earth-leakage sensitivity
300 mA
earth-leakage protection time delay
Instantaneous
earth-leakage protection class
Type AC
Complementary
device location in system
Outgoer
network frequency
50/60 Hz
[Ue] rated operational voltage
380...415 V AC 50/60 Hz
residual current tripping technology
Voltage independent
rated breaking and making capacity
Im 1500 A
Idm 1500 A
rated conditional short-circuit current
10 kA
[Ui] rated insulation voltage
500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
6 kV
contact position indicator
Yes
control type
Toggle
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
8
height
91 mm
width
72 mm
depth
73.5 mm
product weight
0.37 kg
colour
White
mechanical durability
20000 cycles
electrical durability
15000 cycles AC-1
locking options description
Padlocking device
connections - terminals
Single terminal, top or bottom flexible with ferrule wire(s) 1...25 mm² max
Single terminal, top or bottom rigid wire(s) 1...35 mm² max
Single terminal, top or bottom flexible wire(s) 1...25 mm² max
wire stripping length
14 mm (top or bottom)
tightening torque
3.5 N.m (top or bottom)
Environment
standards
EN/IEC 61008-1
product certifications
SNI
IP degree of protection
IP40 for modular enclosure conforming to IEC 60529
IP20 conforming to IEC 60529
pollution degree
3
electromagnetic compatibility
8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
ambient air temperature for operation
-5...60 °C
ambient air temperature for storage
-40...85 °C
