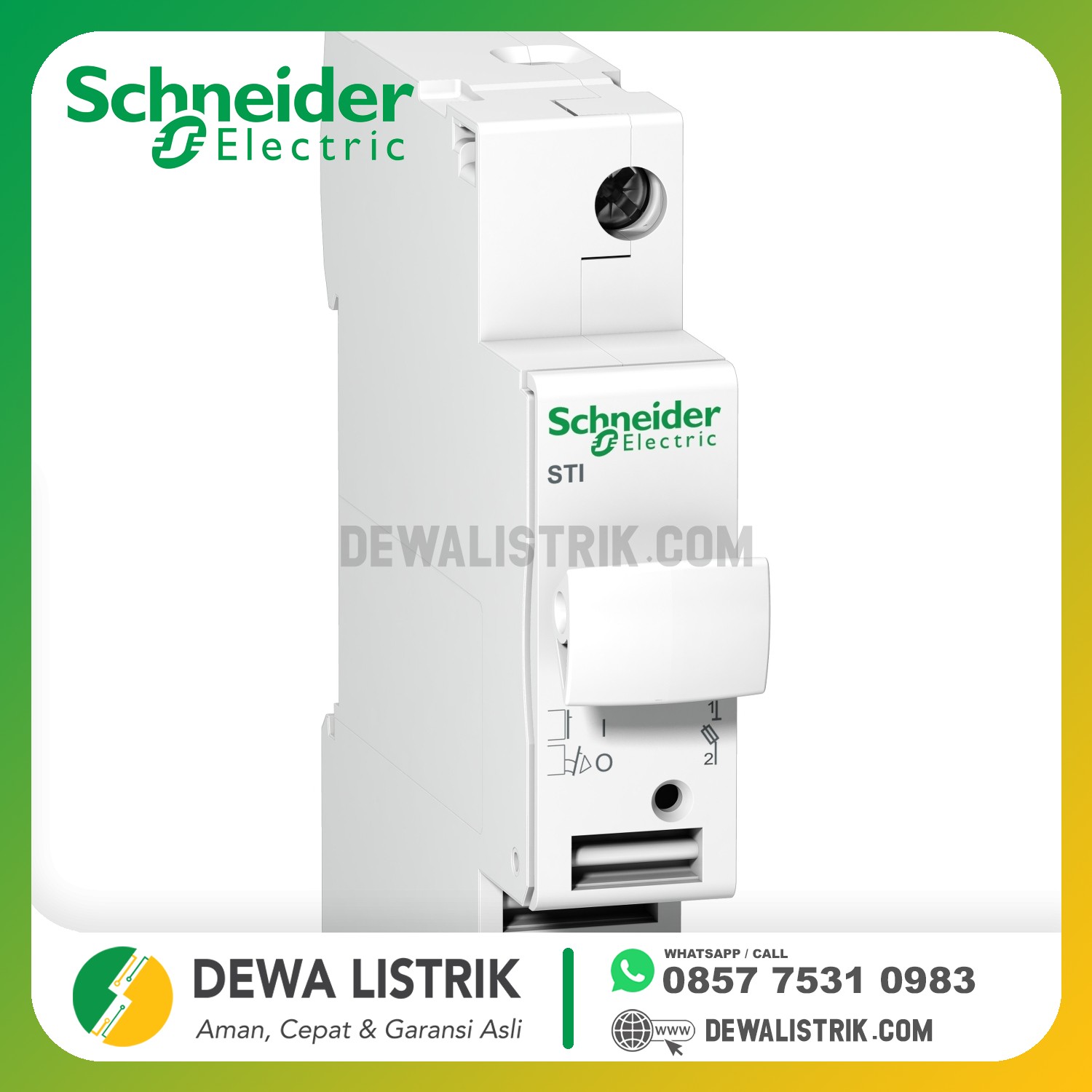

SCHNEIDER - ACTI9 STI 1P 25A FUSE 10.3 X 38 MM FUSE

Category: ACTI9
No Referensi: A9N15636
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
Acti 9
product name
Acti 9 STI
product or component type
Fuse-disconnector
device short name
STI
poles description
1P
Complementary
[In] rated current
2 A
4 A
6 A
10 A
16 A
20 A
25 A
fuse curve
AM
GG
fuse size
10.3 x 38 mm
[Ue] rated operational voltage
500 V AC
[Ui] rated insulation voltage
500 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
2
height
81 mm
width
18 mm
depth
75 mm
colour
White
connections - terminals
Screw clamp terminals1 cable(s) 0.75…10 mm² rigid
Screw clamp terminals1 cable(s) 0.5…6 mm² flexible
Screw clamp terminals2 cable(s) 0.75…4 mm² rigid
Screw clamp terminals2 cable(s) 0.5…6 mm² flexible
wire stripping length
12 mm
tightening torque
2 N.m
Environment
standards
IEC 60269-1/2
IEC EN 60947-3
IP degree of protection
IP20
pollution degree
3
ambient air temperature for operation
-20…60 °C
ambient air temperature for storage
-40…80 °C
