| range | Acti 9 |
|---|---|
| product or component type | Add-on residual current devices |

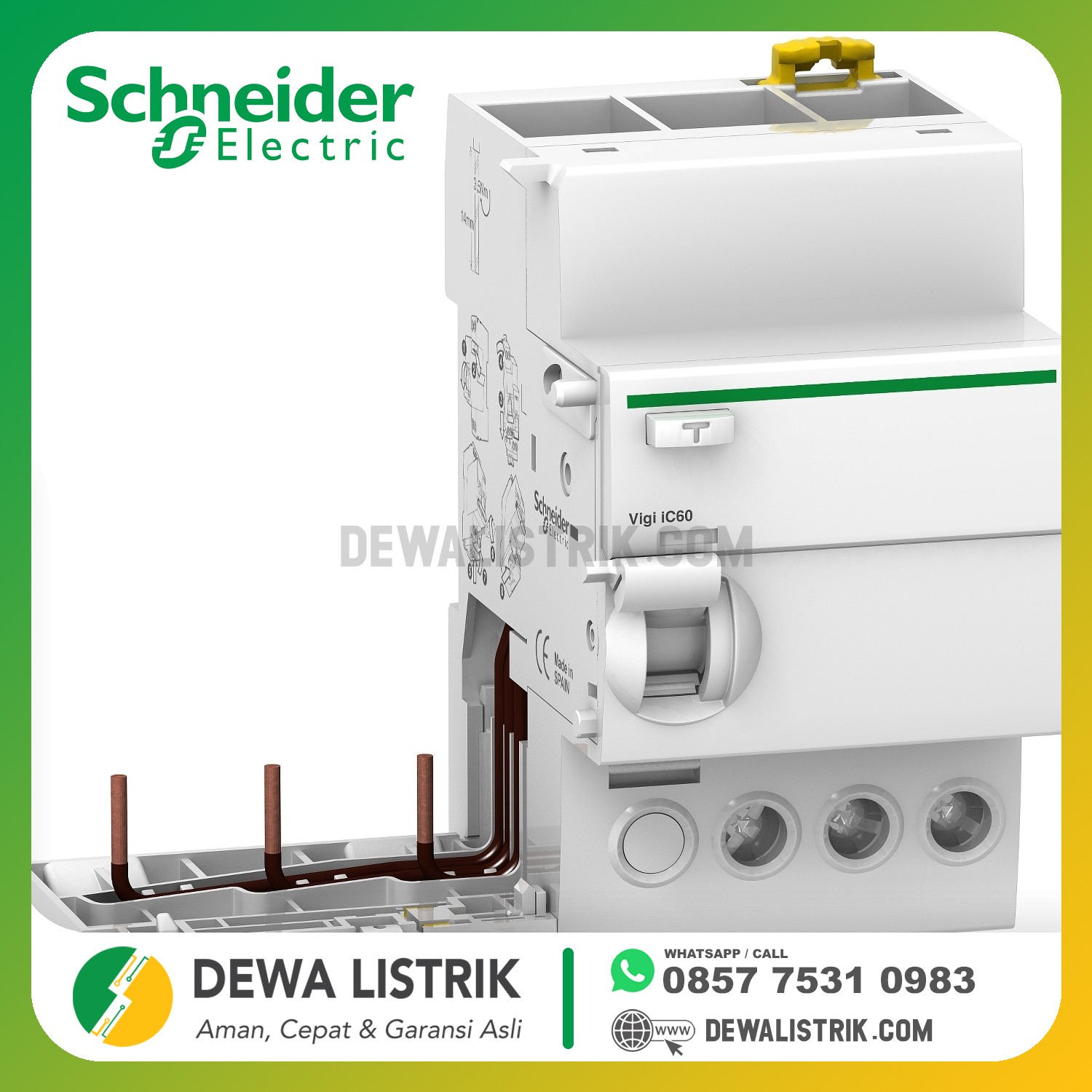

| device short name | Vigi iC60 |
| poles description | 3P |
| [In] rated current | 25 A |
| earth-leakage sensitivity | 300 mA |
| earth-leakage protection time delay | Instantaneous |
| Earth leakage protection type | Type AC |
| network type | AC |
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz conforming to EN 61009-1 400/415 V AC 50/60 Hz conforming to IEC 61009-1 |
| standards | EN 61009-1 IEC 61009-1 |
| 9 mm pitches | 6 |
| device location in system | Outgoer |
|---|---|
| residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| range compatibility | Acti 9 iC60 Acti 9 Reflex iC60 |
| product compatibility | Single terminal |
| local signalling | Trip indicator |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| electrical connection to mcb | By screws |
| comb busbar and distribution block compatibility | Bottom: YES |
| height | 91 mm |
| width | 54 mm |
| depth | 73.5 mm |
| net weight | 0.21 kg |
| connections - terminals | Tunnel type terminal downside for 1 cable(s) 1…25 mm² rigid without cable end Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible without cable end Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible with cable end |
| wire stripping length | 14 mm for bottom connection |
| tightening torque | 2 N.m bottom |
