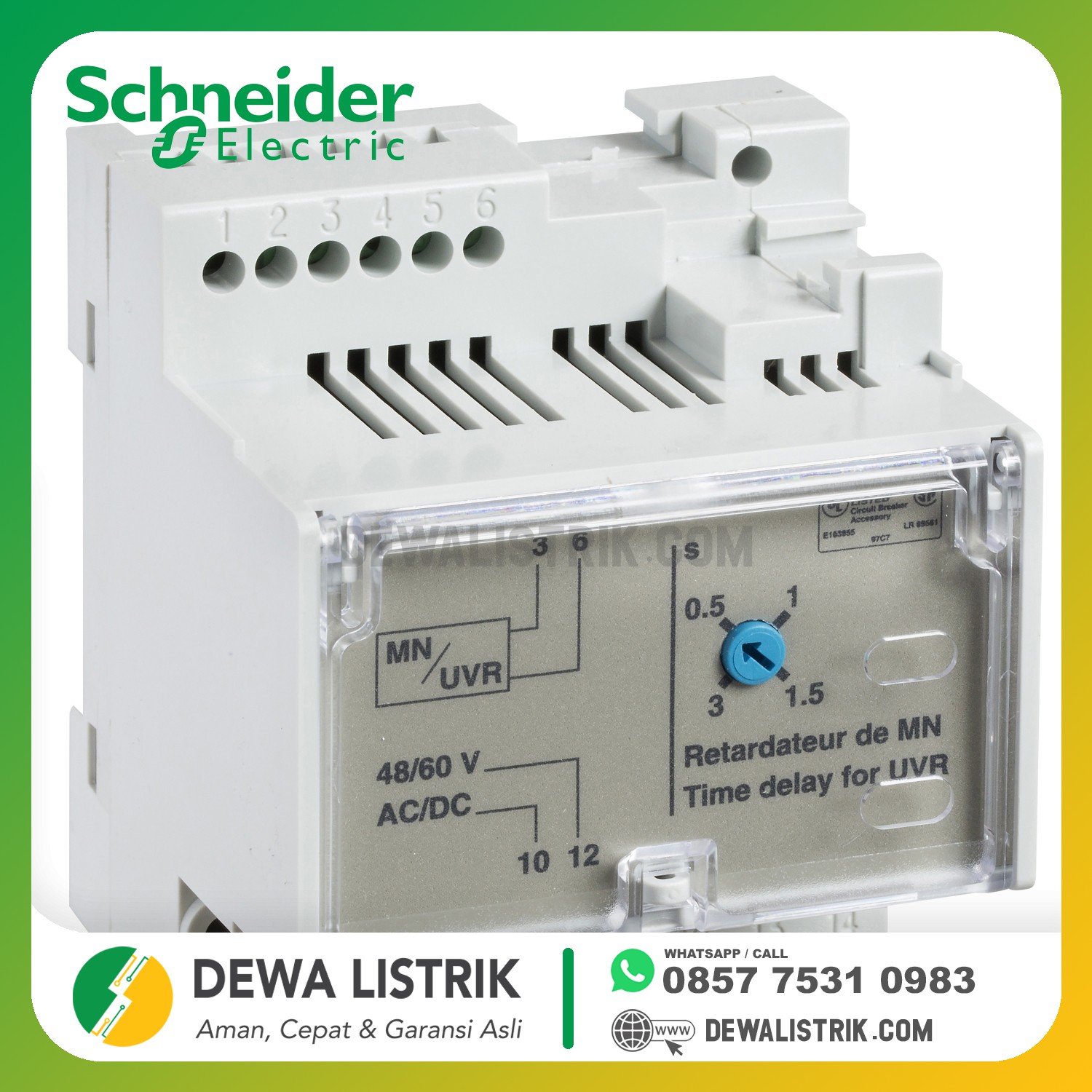

| device short name | MN delay unit |
|---|---|
| product or component type | Time delay auxiliary |
| device application | Control |
| range compatibility | Masterpact - Masterpact NW Masterpact - Masterpact NT Compact - Compact NSX Compact - Compact NS630b...1600 Compact - Compact NS1600b...3200 PowerPact - PowerPact Multistandard |
| offer type | C4 C5 |
| voltage release type | Instantaneous |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz 200...250 V DC |
| impulse duration | 200 ms |
|---|---|
| time delay range | 0.5...3 s |
| threshold tripping voltage | 0.35...0.7 Un - during open time 0.85 Un - during close time |
| supply holding power | 4.5 VA |
| supply inrush power | 200 VA |
| response time | 0.5 s 0.9 s 1.5 s 3 s |
| accessory / separate part category | Spare part Compact NS630b...1600 Spare part Compact NS1600b...3200 |
