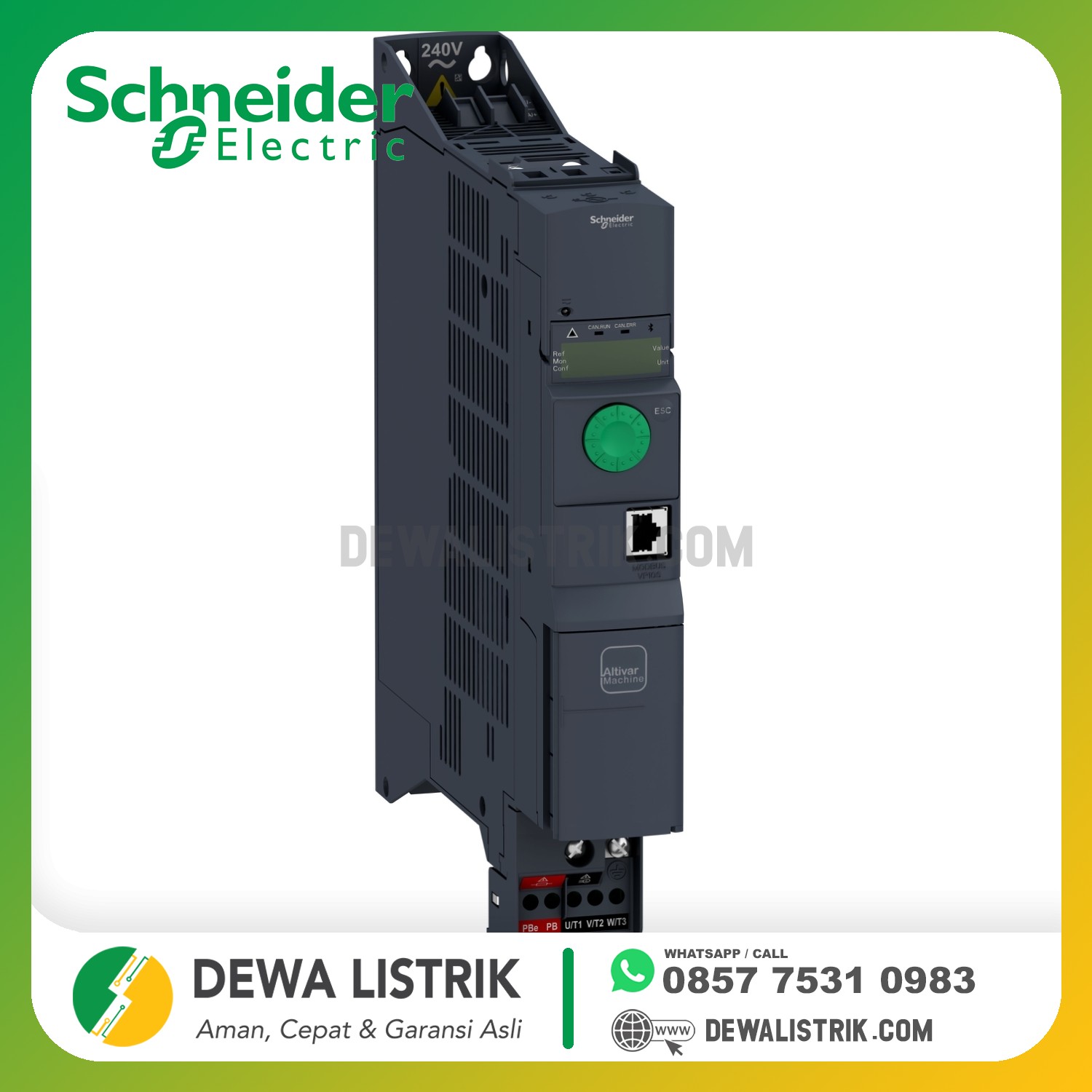

SCHNEIDER - ATV320 0,55KW 400V 3PH BOOK CONTROL VARI

No Referensi: ATV320U06N4B
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Altivar Machine ATV320
product or component type
Variable speed drive
product specific application
Complex machines
variant
Standard version
mounting mode
Cabinet mount
communication port protocol
Modbus serial
CANopen
option card
Communication module, CANopen
Communication module, EtherCAT
Communication module, Profibus DP V1
Communication module, Profinet
Communication module, Ethernet Powerlink
Communication module, Ethernet/IP
Communication module, DeviceNet
[Us] rated supply voltage
380...500 V - 15...10 %
nominal output current
1.9 A
motor power kW
0.55 kW for heavy duty
EMC filter
Class C2 EMC filter integrated
IP degree of protection
IP20
Complementary
discrete input number
7
discrete input type
STO safe torque off, 24 V DC, impedance: 1.5 kOhm
DI1...DI6 logic inputs, 24 V DC (30 V)
DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
discrete input logic
Positive logic (source)
Negative logic (sink)
discrete output number
3
discrete output type
Open collector DQ+ 0…1 kHz 30 V DC 100 mA
Open collector DQ- 0…1 kHz 30 V DC 100 mA
analogue input number
3
analogue input type
AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits
AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits
AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
analogue output number
1
analogue output type
Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits
Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
relay output type
Configurable relay logic R1A 1 NO electrical durability 100000 cycles
Configurable relay logic R1B 1 NC electrical durability 100000 cycles
Configurable relay logic R1C
Configurable relay logic R2A 1 NO electrical durability 100000 cycles
Configurable relay logic R2C
maximum switching current
Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC
Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC
minimum switching current
Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
method of access
Slave CANopen
4 quadrant operation possible
True
asynchronous motor control profile
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor - Energy Saving
Voltage/frequency ratio, 2 points
synchronous motor control profile
Vector control without sensor
maximum output frequency
0.599 kHz
transient overtorque
170…200 % of nominal motor torque
acceleration and deceleration ramps
Linear
U
S
CUS
Ramp switching
Acceleration/deceleration ramp adaptation
Acceleration/deceleration automatic stop with DC injection
motor slip compensation
Automatic whatever the load
Adjustable 0...300 %
Not available in voltage/frequency ratio (2 or 5 points)
switching frequency
2...16 kHz adjustable
4...16 kHz with derating factor
nominal switching frequency
4 kHz
braking to standstill
By DC injection
brake chopper integrated
True
line current
2.8 A at 380 V (heavy duty)
2.2 A at 500 V (heavy duty)
maximum input current
2.8 A
maximum output voltage
500 V
apparent power
1.9 kVA at 500 V (heavy duty)
network frequency
50...60 Hz
relative symmetric network frequency tolerance
5 %
prospective line Isc
5 kA
base load current at high overload
4.1 A
power dissipation in W
Fan: 27.0 W at 380 V, switching frequency 4 kHz
with safety function Safely Limited Speed (SLS)
True
with safety function Safe brake management (SBC/SBT)
False
with safety function Safe Operating Stop (SOS)
False
with safety function Safe Position (SP)
False
with safety function Safe programmable logic
False
with safety function Safe Speed Monitor (SSM)
False
with safety function Safe Stop 1 (SS1)
True
with sft fct Safe Stop 2 (SS2)
False
with safety function Safe torque off (STO)
True
with safety function Safely Limited Position (SLP)
False
with safety function Safe Direction (SDI)
False
protection type
Input phase breaks: drive
Overcurrent between output phases and earth: drive
Overheating protection: drive
Short-circuit between motor phases: drive
Thermal protection: drive
width
45.0 mm
height
325.0 mm
depth
245.0 mm
net weight
2.5 kg
