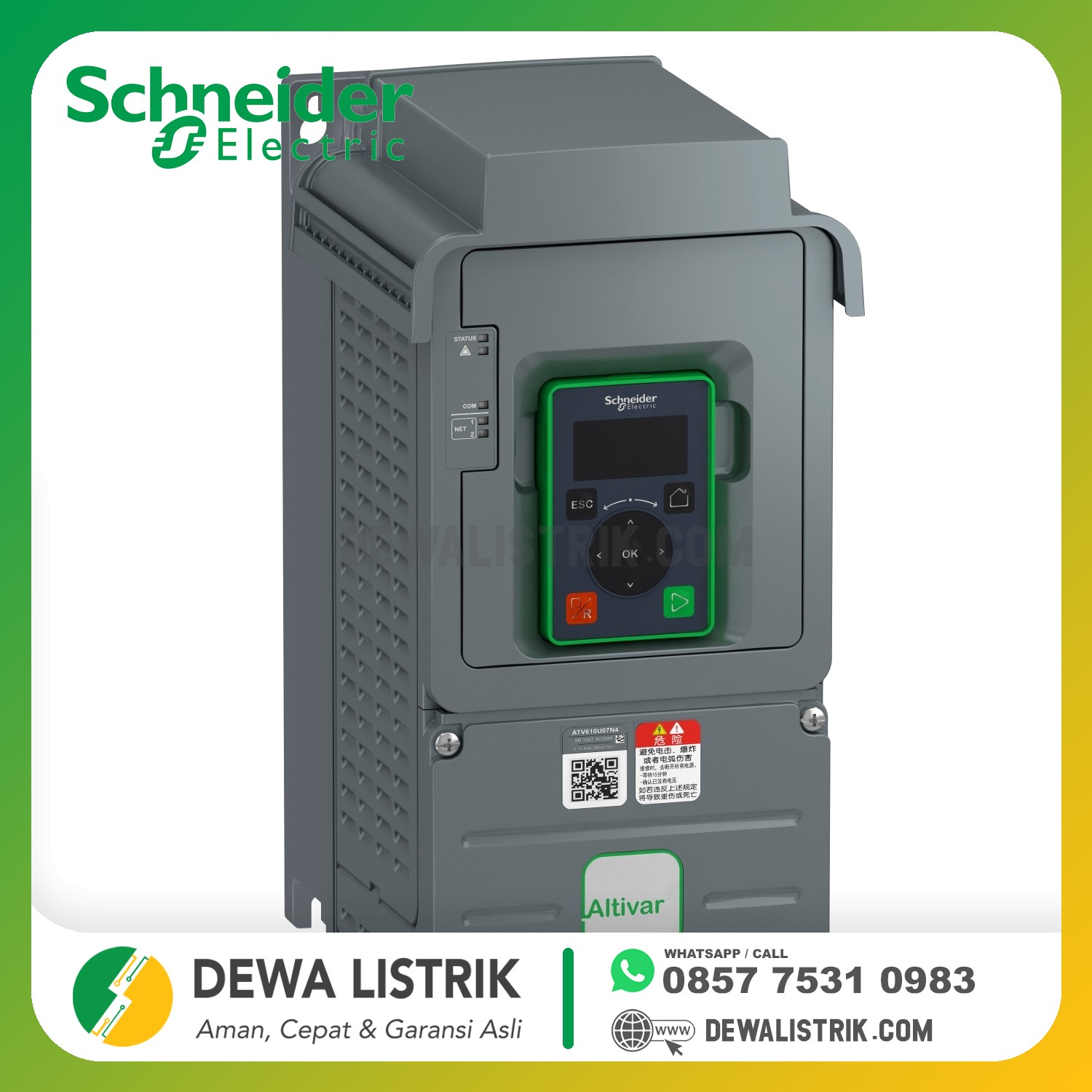

| range of product | Easy Altivar 610 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Fan, pump, compressor, conveyor |
| device short name | ATV610 |
| variant | Standard version |
| product destination | Asynchronous motors |
| mounting mode | Cabinet mount |
| EMC filter | Integrated conforming to EN/IEC 61800-3 category C3 with 50 m |
| IP degree of protection | IP20 |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz +/-5 % |
| network number of phases | 3 phases |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| motor power kW | 4 kW for normal duty 3 kW for heavy duty |
| motor power hp | 5 hp for normal duty |
| line current | 8.8 A at 380 V (normal duty) 7.9 A at 460 V (normal duty) 7.2 A at 380 V (heavy duty) 6.2 A at 460 V (heavy duty) |
| prospective line Isc | 5 kA |
| apparent power | 6.3 kVA at 460 V (normal duty) 4.9 kVA at 460 V (heavy duty) |
| continuous output current | 9.3 A at 4 kHz for normal duty 7.2 A at 4 kHz for heavy duty |
| maximum transient current | 10.2 A during 60 s (normal duty) 10.8 A during 60 s (heavy duty) |
| asynchronous motor control profile | Optimized torque mode Variable torque standard Constant torque standard |
| output frequency | 0.0001…0.5 kHz |
| nominal switching frequency | 4 kHz |
| switching frequency | 2...12 kHz adjustable |
| number of preset speeds | 16 preset speeds |
| communication port protocol | Modbus serial |
| option card | Slot A: communication card, Profibus DP V1 Slot A: digital or analog I/O extension card Slot A: relay output card |
