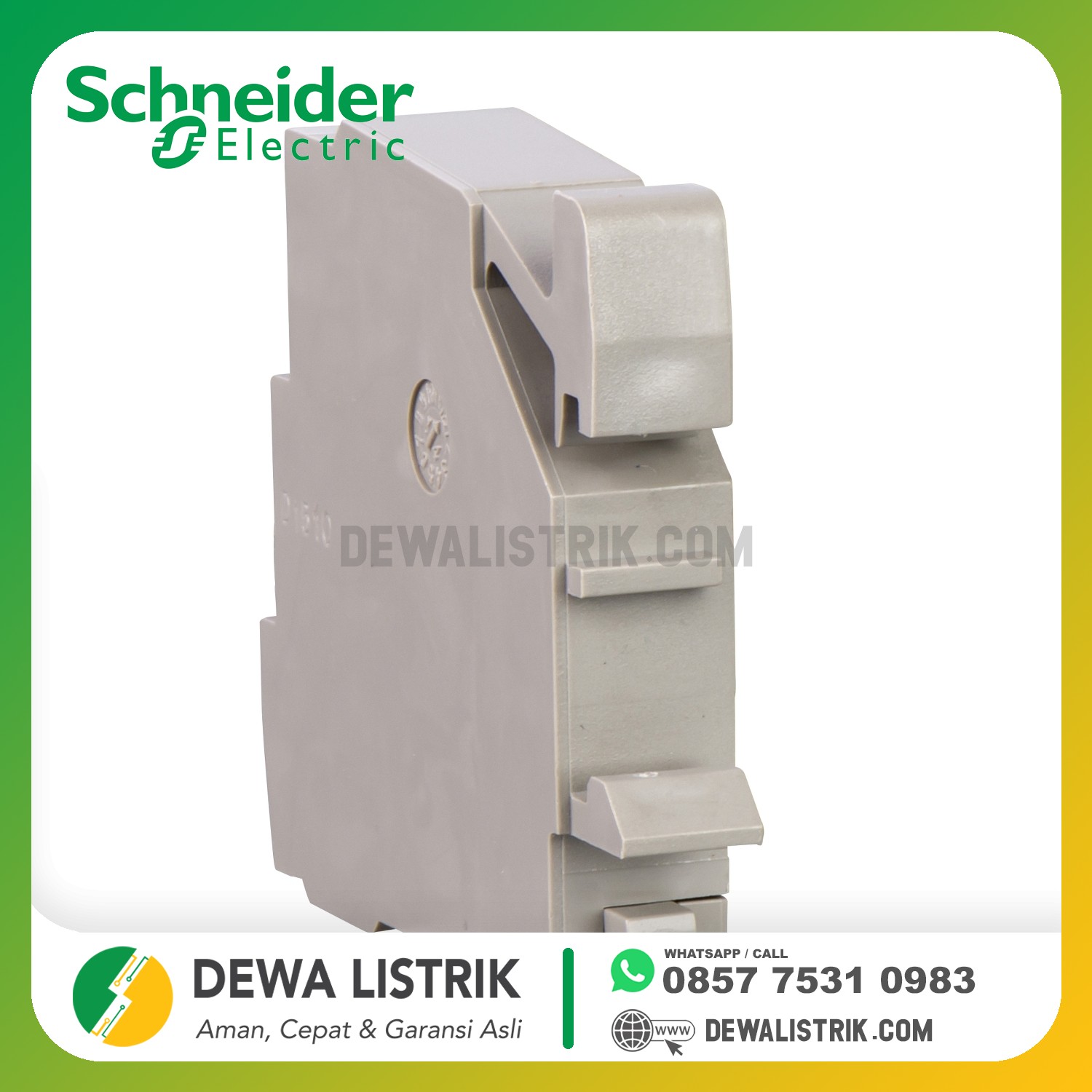

| device short name | Connected position contact |
|---|---|
| product or component type | Auxiliary contact |
| device application | Monitoring |
| range compatibility | MasterPact NT Masterpact NW Masterpact NW DC ComPact NS630b...1600 |
| signal contacts composition | 1 NO/NC |
| auxiliary contacts type | Standard |
|---|---|
| auxiliary contacts operation | Connected position |
| mounting mode | Drawout |
| [Ie] rated operational current | AC-12: 6 A at 690 V AC 50/60 Hz AC-12: 8 A at 240 V AC 50/60 Hz AC-12: 8 A at 380 V AC 50/60 Hz AC-12: 8 A at 480 V AC 50/60 Hz DC-12: 0.8 A at 125 V DC DC-12: 2.5 A at 24/48 V DC DC-12: 0.3 A at 150 V DC |
| minimum load | 100 mA at 24 V |
