| range | TeSys |
|---|---|
| product or component type | Specific contactor coil |

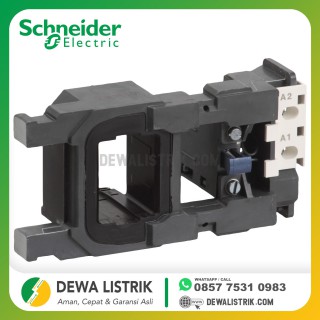

| device short name | LX9FG |
| range compatibility | TeSys F LC1F contactor |
| product compatibility | LC1F185 LC1F225 |
| control circuit type | AC 40...400 Hz low consumption |
| [Uc] control circuit voltage | 220...230 V AC 40...400 Hz |
| average resistance | 1680 Ohm holding at 20 °C 42.1 Ohm inrush at 20 °C |
| inductance of closed circuit | 5.84 H |
| operating time | 130 ms opening 35 ms closing |
| mechanical durability | 10 Mcycles |
| operating rate | <= 2400 cyc/h at <= 55 °C |
| coil technology | Without built-in suppressor module |
|---|---|
| control circuit voltage limits | 0.35...0.55 Uc at 55 °C drop-out 0.85...1.1 Uc at 55 °C operational |
| inrush power in VA | 950...1180 VA at 20 °C 40...400 Hz |
| hold-in power consumption in VA | 8.9...10.9 VA at 20 °C 40...400 Hz |
| heat dissipation | 8...9.8 W |
| ambient air temperature for operation | -5...55 °C |
|---|---|
| product weight | 0.55 kg |
