| range of product | Harmony XAC |
|---|---|

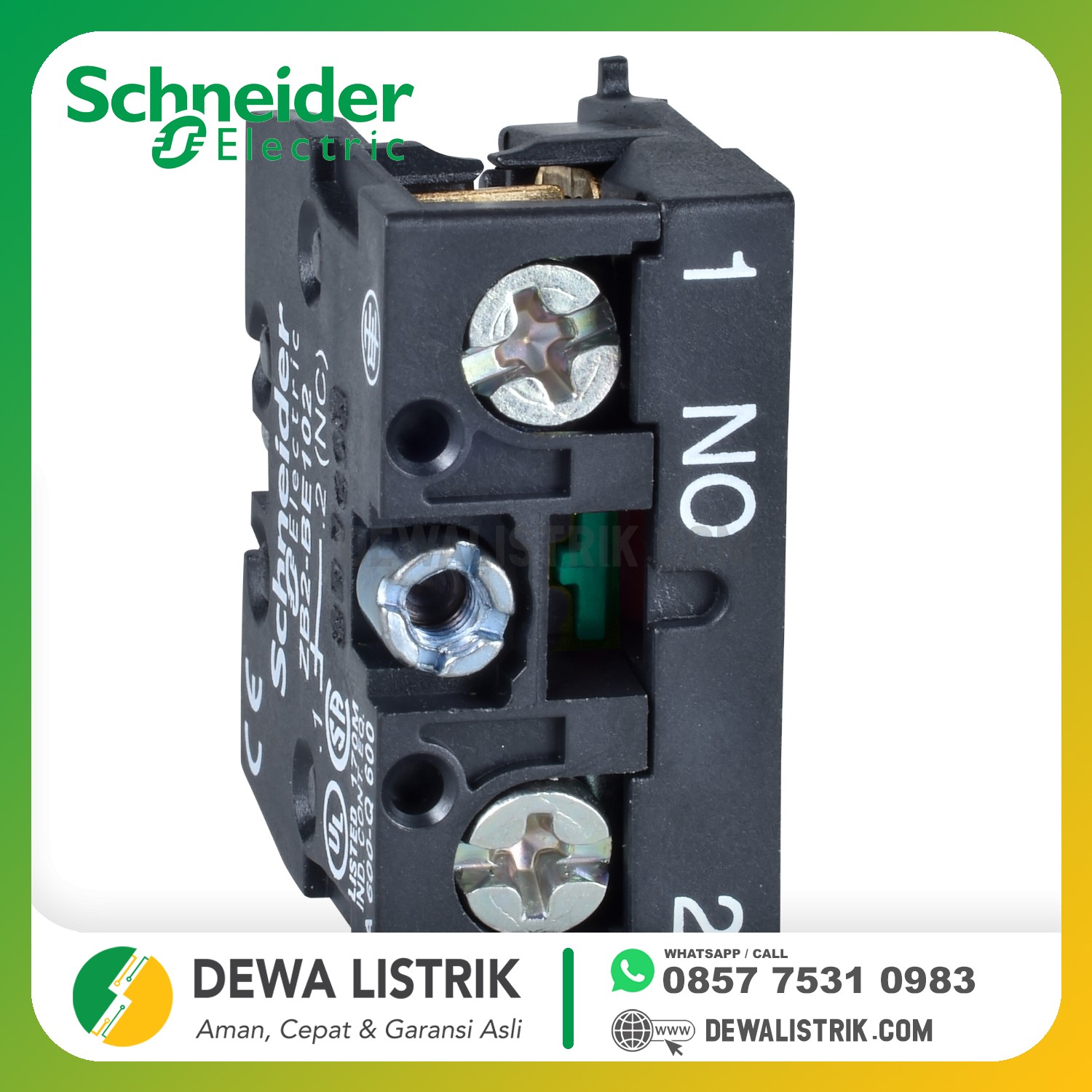

| product or component type | Contact block |
| component name | ZB2 |
| electrical circuit type | Control circuit |
| contact block application | Single speed |
| contact block type | Single |
| type of operator | Spring return |
| product compatibility | XB4 XAPS2 XACA XB5 |
| contacts type and composition | 1 NO |
| mounting of block | Front mounting |
| contact operation | Slow-break |
| connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end Screw clamps terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| mechanical durability | 1000000 cycles |
| contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| maximum resistance across terminals | 25 MOhm |
| operating force | 13…15 N |
| short-circuit protection | 10 A fuse protection by cartridge fuse type gG (gl) |
| rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1 |
| terminals description ISO n°1 | (13-14)NO |
| net weight | 0.02 kg |
