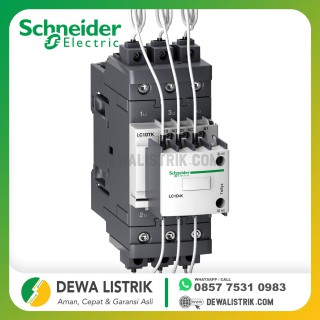

SCHNEIDER - CONTACTOR 40 KVAR KOIL 220V

Category: KAPASITOR
No Referensi: LC1DTKM7
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
TeSys
product name
TeSys LC1D.K
product or component type
Capacitor duty contactor
device short name
LC1DTK
contactor application
Power factor correction
utilisation category
AC-6B
poles description
3P
power pole contact composition
3 NO
device location in system
Line interruption
Inside delta interruption
[Ue] rated operational voltage
<= 690 V AC 50/60 Hz for power circuit
reactive power rating
22 kvar at 230 V AC 50/60 Hz <= 60 °C
43 kvar at 440 V AC 50/60 Hz <= 60 °C
67 kvar at 660...690 V AC 50/60 Hz <= 60 °C
40 kvar at 400...415 V AC 50/60 Hz <= 60 °C
control circuit type
AC 50/60 Hz
[Uc] control circuit voltage
220 V AC 50/60 Hz
auxiliary contact composition
1 NO + 2 NC for signalling circuit
3 NO early make for power circuit
electrical durability
300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
mounting support
DIN rail
Plate
standards
IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
product certifications
CCC
CSA
IEC
UL
EAC
KC
connections - terminals
Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable end
Control circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
Control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Control circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Power circuit : screw clamp terminals 1 cable(s) 1...35 mm² - cable stiffness: solid - without cable end
Power circuit : screw clamp terminals 2 cable(s) 1...25 mm² - cable stiffness: solid - without cable end
Control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - with or without cable end
Power circuit : screw clamp terminals 1 cable(s) 1...35 mm² - cable stiffness: flexible - with or without cable end
Power circuit : screw clamp terminals 2 cable(s) 1...25 mm² - cable stiffness: flexible - with or without cable end
tightening torque
Control circuit : 1.7 N.m - on screw clamp terminals
Power circuit : 5 N.m - on screw clamp terminals - cable 1...25 mm²
Power circuit : 8 N.m - on screw clamp terminals - cable 35 mm²
operating rate
100 cyc/h
Complementary
auxiliary contacts type
Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1
Type mirror contact (1 NC) conforming to IEC 60947-4-1
Environment
IP degree of protection
IP2x conforming to IEC 60529
IP2x conforming to VDE 0106
protective treatment
TH conforming to IEC 60068-2-30
ambient air temperature for operation
-5...60 °C
ambient air temperature for storage
-60...80 °C
operating altitude
3000 m without derating
height
166 mm
width
55 mm
depth
156 mm
product weight
1.3 kg
