| range of product | TeSys D TeSys D control relay TeSys F |
|---|---|
| range | TeSys |

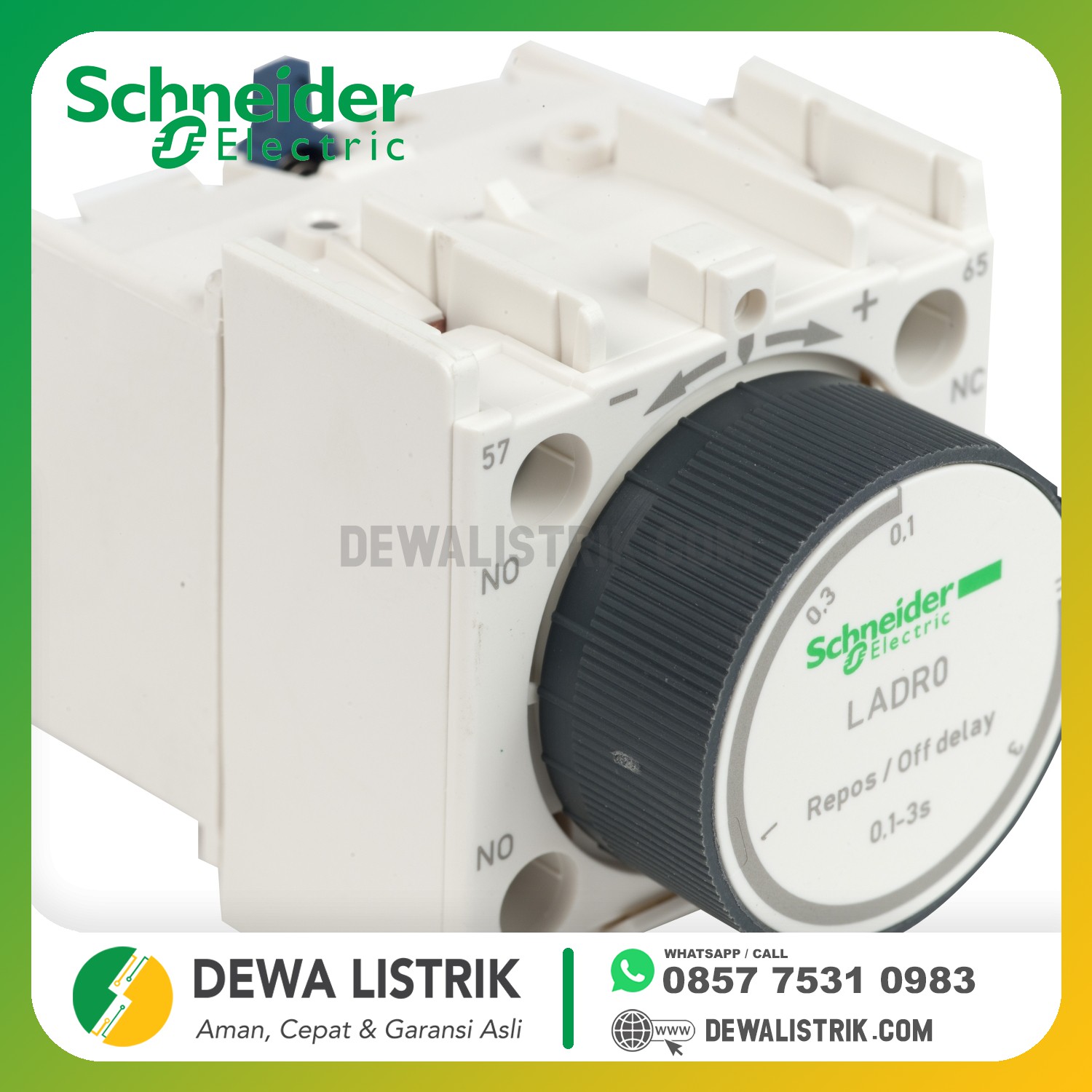

| product or component type | Time delay auxiliary contact block |
| pole contact composition | 1 NO + 1 NC |
| connections - terminals | Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - with cable end Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - without cable end Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - with cable end Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - without cable end Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - with cable end Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - without cable end Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - with cable end Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - without cable end |
| mounting location | Front |
|---|---|
| [Ui] rated insulation voltage | 690 V - conforming to IEC 60947-5-1 600 V - certifications CSA 600 V - certifications UL |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ith] conventional free air thermal current | 10 A at <= 60 °C |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
| permissible short-time rating | 100 A at 60 °C 1 s 120 A at 60 °C 500 ms 140 A at 60 °C 100 ms |
| protection type | GG fuse <= 10 A rating according to operational current for Ue <= 690 V |
| associated fuse rating | 10 A gG IEC 60947-5-1 |
| mechanical durability | 5 Mcycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| non-overlap time | 1.5 ms on de-energisation (no overlap between NC and NO contact) 1.5 ms on energisation (no overlap between NC and NO contact) |
| timer type | Off delay |
| time delay range | 0.1...3 s |
| insulation resistance | > 10 MOhm |
| environmental characteristic | Normal environment |
|---|---|
| standards | BS 4794 EN 60947-5-1 IEC 60947-5-1 NF C 63-140 VDE 0660 |
| product certifications | CSA UL |
| IP degree of protection | IP2x conforming to VDE 0660 |
| protective treatment | TH conforming to IEC 60068 |
| ambient air temperature for operation | -5...60 °C |
| ambient air temperature for storage | -60...80 °C |
| operating altitude | 3000 m |
| Sustainable offer status | Green Premium product |
|---|---|
| RoHS (date code: YYWW) | |
| REACh | |
| Product environmental profile | |
| Product end of life instructions | Need no specific recycling operations |
