| range | PowerLogic |
|---|---|
| product name | CT |

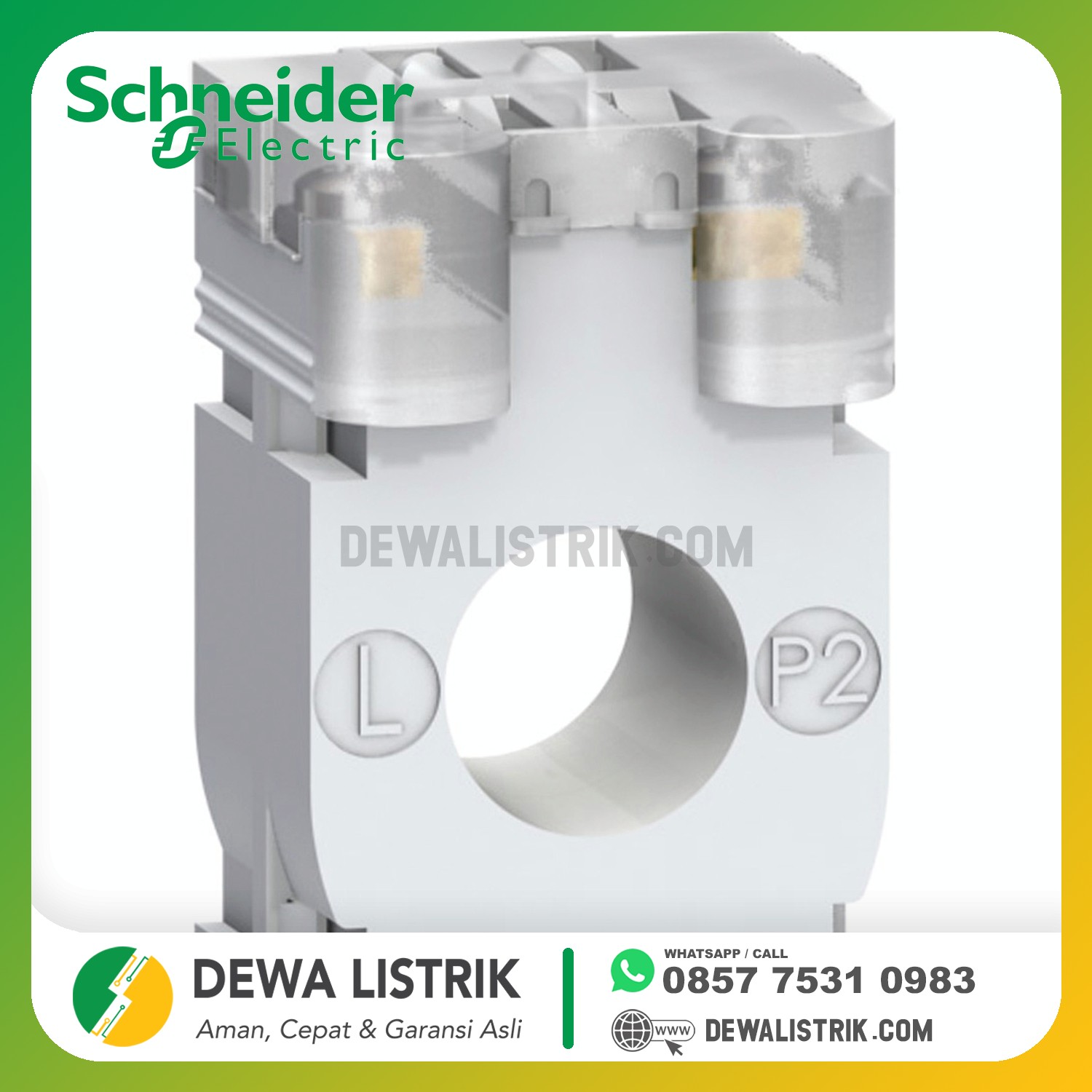

| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 2.5 VA Class 1 at 3.5 VA Class 3 at 4 VA |
| [In] rated current | 125 A |
| current transformer type | Tropicalised for cable |
|---|---|
| current transformer ratio | 125/5 |
| [Ith] conventional free air thermal current | 7.5 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | By screws Clip-on |
| mounting support | DIN rail Mounting plate |
| width | 44 mm outside: |
| height | 65 mm outside: |
| depth | 30 mm frame: 37 mm total: |
| diameter | 21 mm |
| net weight | 0.175 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| cable outer diameter | 21 mm |
| sealing | With |
| standards | VDE 0414 IEC 61869-2 |
|---|---|
| product certifications | EAC CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…60 °C |
