| range | TeSys |
|---|---|
| product name | TeSys LE |
| device short name | LE1M |

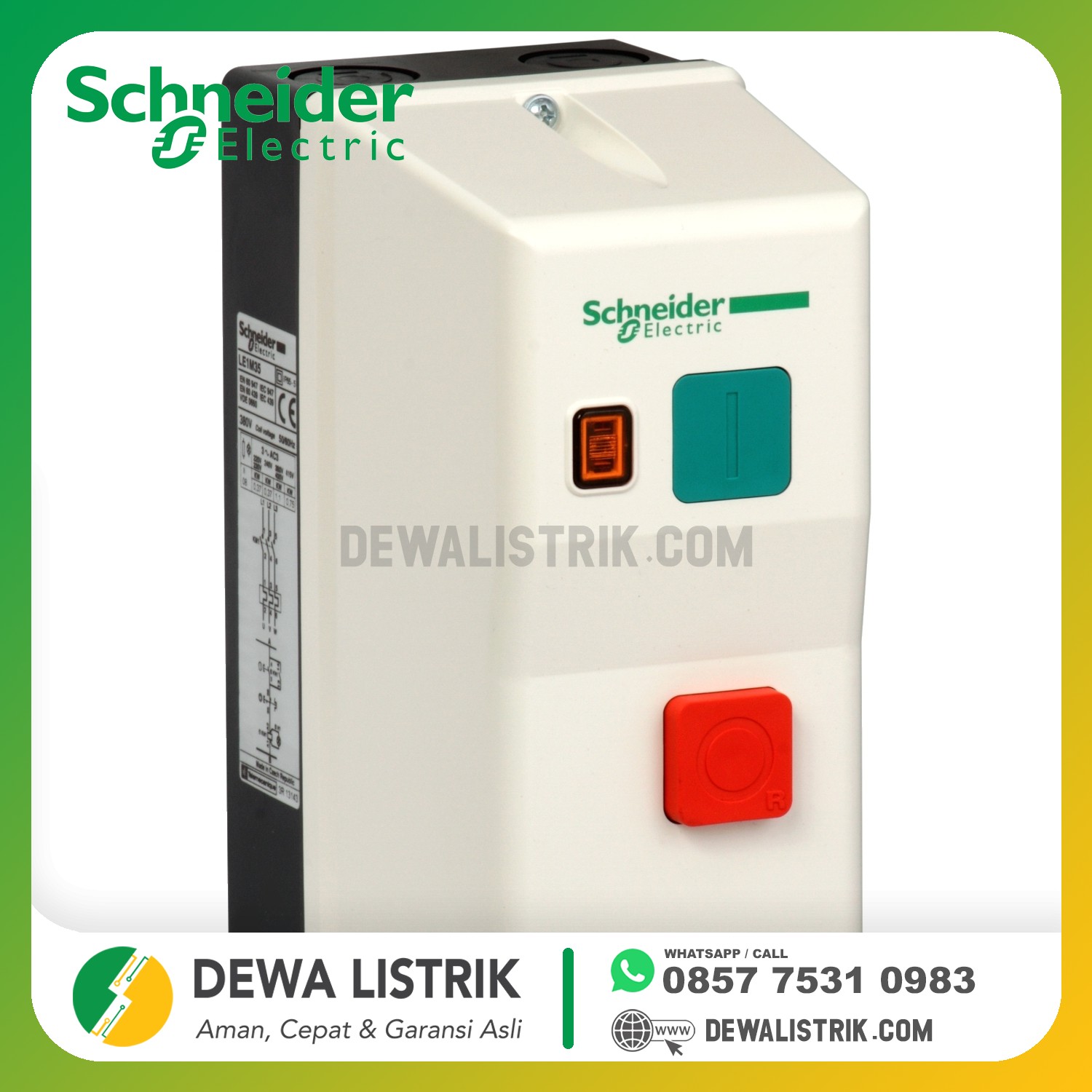

| product or component type | Enclosed DOL starter |
| device application | Standard |
| utilisation category | AC-3 |
| device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
| thermal protection adjustment range | 1.8…2.6 A |
| motor power kW | 0.37 kW at 240 V AC 50/60 Hz 0.75 kW at 415 V AC 50/60 Hz 0.37 kW at 220/230 V AC 50/60 Hz 1.1 kW at 380/400 V AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| control type | Push-button start green I Push-button stop/reset red O |
| local signalling | Operating: LED (yellow) |
|---|---|
| cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
| width | 78 mm |
| height | 160 mm |
| depth | 108 mm |
| net weight | 0.6 kg |
| material | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| standards | IEC 60947-4-1 |
| ambient air temperature for operation | -5…40 °C |
| environmental characteristic | Standard environment |
