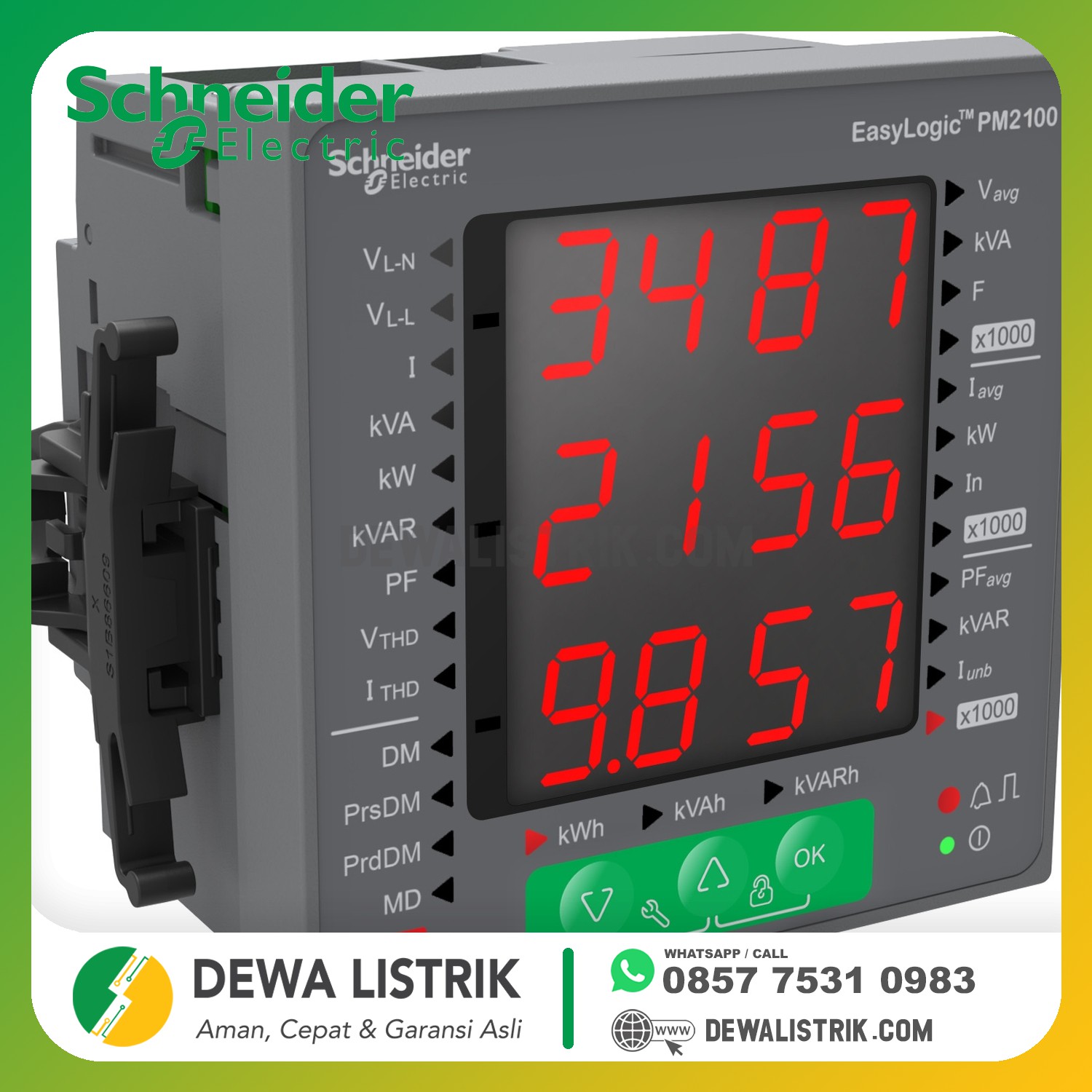

SCHNEIDER - POWER METER PM2120

Category: POWER METER
No Referensi: METSEPM2120
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
EasyLogic
product name
EasyLogic PM2100
device short name
PM2120
product or component type
Power meter
Complementary
device application
Power monitoring
Sub billing
power quality analysis
Up to the 15th harmonic
Total harmonic distortion
type of measurement
Apparent power (min/max, total)
Active and reactive power (min/max, total)
Current (min/max, avg)
Voltage (min/max, avg)
Frequency (min/max, avg)
Total current harmonic distortion THD (I) (per phase)
Total voltage harmonic distortion THD (U) (per phase)
Power factor (min/max, avg)
Apparent energy (total)
Active and reactive energy (total)
metering type
Active power P, P1, P2, P3
Apparent power S, S1, S2, S3
Peak demand currents
Reactive power Q, Q1, Q2, Q3
Unbalance current
Active, reactive, apparent energy (signed, four quadrant)
Calculated neutral current
Demand power P, Q, S
Peak demand power PM, QM, SM
Current I, I1, I2, I3
Voltage U, U21, U32, U13, V, V1, V2, V3
accuracy class
Class 1 (active energy according to IEC 62053-21)
Class 1 (reactive energy according to IEC 62053-24)
Class 5 (harmonic distorsion (I THD & U THD)
measurement accuracy
+/- 0.05 % frequency
+/- 1 % reactive energy
+/- 0.5 % current
+/- 0.5 % voltage
+/- 0.01 power factor
+/- 1 % active power
+/- 1 % apparent power
+/- 1 % active energy
measurement current
5...6000 mA
measurement voltage
35...480 V AC 50/60 Hz between phases
20...277 V AC 50/60 Hz between phase and neutral
480...999000 V AC 50/60 Hz with external VT
frequency measurement range
45...65 Hz
[Us] rated supply voltage
44...277 V AC +/- 10 % (45...65 Hz)
44...277 V DC +/- 10 %
network frequency
50 Hz
60 Hz
ride-through time
100 ms 120 V AC typical
400 ms 230 V AC typical
50 ms 125 V DC typical
[In] rated current
1 A
5 A
power consumption in VA
<= 6 VA at 277 V AC
power consumption in W
<= 3.3 W power lines (AC)
<= 2 W at 277 V power lines (DC)
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
tamperproof of settings
Protected by access code
display type
7 segments LED
display colour
Red
messages display capacity
3 fields of 4 characters
display digits
12 digit(s) - 14.2 mm in height
Demand intervals
Configurable from 1 to 60 min
information displayed
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Demand current past value
Demand current present value
Demand power past value
Demand power present value
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
control type
3 x button
local signalling
Green LED : module operation and integrated communication
Red LED : output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
number of inputs
0
number of outputs
0
communication port protocol
Modbus RTU 2 wires, : 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, even/odd or none, insulation: 2500 V
communication port support
Screw terminal block : RS485
data recording
Time stamping
Min/max for 8 parameters
function available
Real time clock
sampling rate
64 samples/cycle
cybersecurity
Enable/disable communication ports
communication service
Remote monitoring
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
EAC
CULus conforming to CSA C22.2 No 61010-1
RCM
C-Tick
mounting mode
Clip-on
mounting position
Vertical
mounting support
Framework
provided equipment
Installation guide 1
measurement category
Category III up to 480 V
Category II up to 480...600 V
electrical insulation class
Class II
Double insulation
flame retardance
V-0 conforming to UL 94
connections - terminals
Current transformer : bottom screw connection x 6
Voltage inputs : top screw connection x 4
material
Polycarbonate
width
96 mm
depth
76.09 mm total
61.64 mm embedded
height
96 mm
product weight
300 g
compatibility code
PM2120
Environment
service life
7 yr
IP degree of protection
IP30 (body) conforming to IEC 60529
IP54 (front) conforming to IEC 60529
relative humidity
5...95 % 50 °C
pollution degree
2
ambient air temperature for operation
-10...60 °C
ambient air temperature for storage
-25...70 °C
operating altitude
<= 2000 m
electromagnetic compatibility
Electrostatic discharge conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Emission tests conforming to FCC part 15 class A
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
overvoltage category
III
