SCHNEIDER - ELECTR.RELAY 1,2 A 7A 220 AC

Category: THERMAL OVERLOAD
No Referensi: LR97D07M7
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

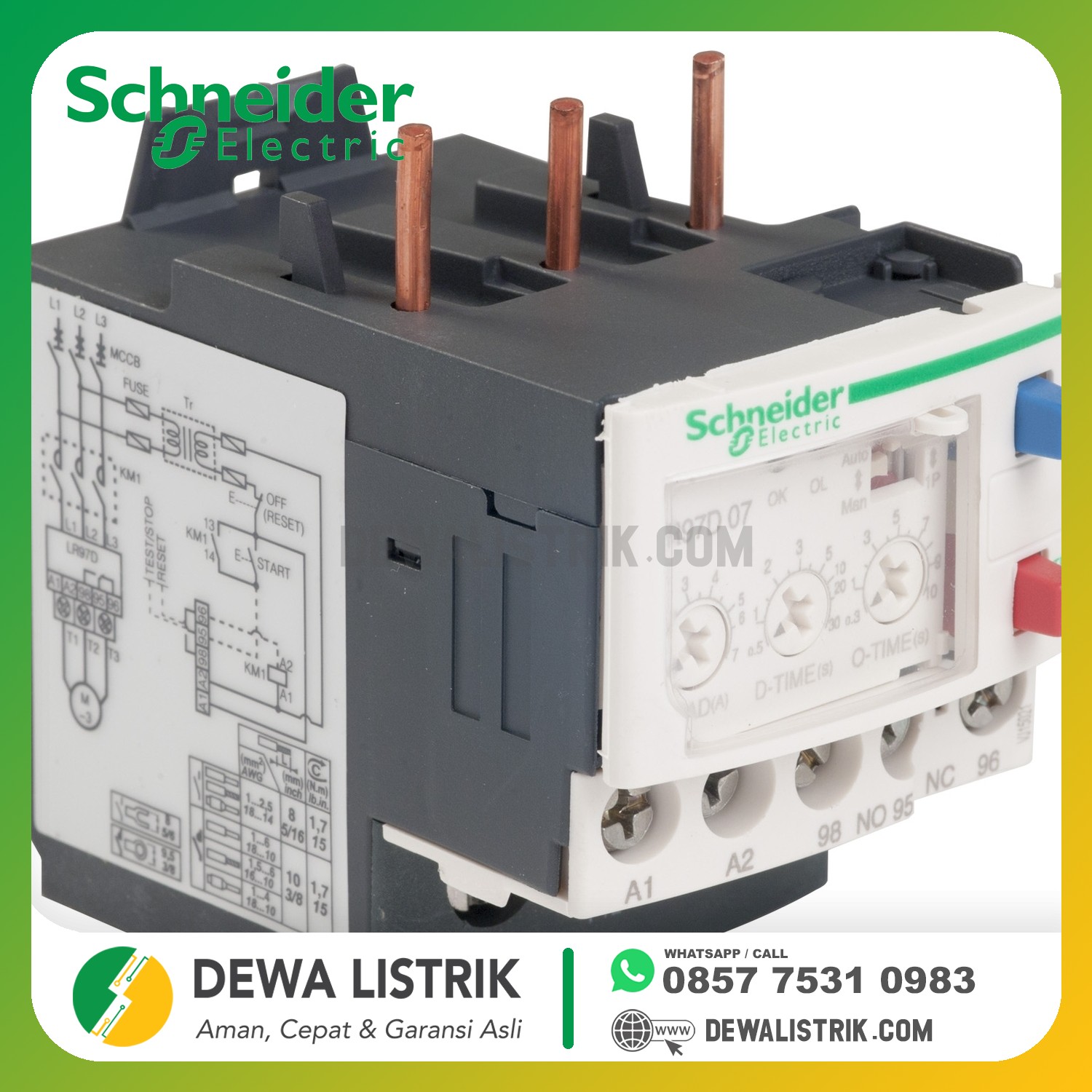

Electronic overload relay for motor TeSys - 1.2...7 A - 200...240 V AC

Main
range
TeSys
product name
TeSys D
device short name
LR97
product or component type
Electronic overcurrent relay
relay application
Sensitivity to phase failure
Locked rotor, mechanical jamming I > 3 x Isetting
Overload Imax > Isetting
product compatibility
LC1D09...D38
network type
AC
[Us] rated supply voltage
200...240 V AC
thermal protection adjustment range
1.2…7 A
[Ue] rated operational voltage
600 V AC 50/60 Hz for power circuit conforming to CSA
600 V AC 50/60 Hz for power circuit conforming to UL
690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1
Quantity per set
Set of 10
Complementary
network frequency
50...60 Hz
mounting support
Direct on contactor
Rail
tripping threshold
1.2...6 A
surge withstand
6 kV conforming to IEC 61000-4-5
contacts type and composition
1 C/O
[Ith] conventional free air thermal current
3 A for control circuit
protection type
BS fuse 3 A - for control circuit
GB2 circuit breaker 3 A - for control circuit
GG fuse 3 A - for control circuit
maximum power
28 W at 110 V DC conforming to IEC 60947
28 W at 220 V DC conforming to IEC 60947
55 W at 24 V DC conforming to IEC 60947
55 W at 48 V DC conforming to IEC 60947
140 VA at 48 V AC conforming to IEC 60947
360 VA at 110 V AC conforming to IEC 60947
360 VA at 220 V AC conforming to IEC 60947
70 VA at 24 V AC conforming to IEC 60947
[Ui] rated insulation voltage
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 kV
phase failure sensitivity
< 3 s
reset
Automatic reset 120 s fixed
Electrical by interruption of power supply for minimum 0.1 s
Manual reset
time range
0.2...10 s - O-time knob
0.3...10 s - O-time knob
0.5..30 s - D-time knob
signalling function
2 LEDs
connections - terminals
Control circuit: cable 1 x 1…25 mm²flexible with cable end
Control circuit: cable 1 x 1…25 mm²flexible without cable end
Power circuit: cable 1 x 1…4 mm²flexible with cable end
Power circuit: cable 1 x 1.5…10 mm²flexible without cable end
Power circuit: lug-clamp 1 x 1…4 mm²flexible with cable end
Power circuit: lug-clamp 1 x 1.5…10 mm²flexible without cable end
Control circuit: cable 2 x 1…25 mm²flexible with cable end
Control circuit: cable 2 x 1…25 mm²flexible without cable end
Control circuit: lug-clamp 1 x 1…25 mm²flexible with cable end
Control circuit: lug-clamp 1 x 1…25 mm²flexible without cable end
Control circuit: lug-clamp 2 x 1…25 mm²flexible with cable end
Control circuit: lug-clamp 2 x 1…25 mm²flexible without cable end
tightening torque
Control circuit: 0.6...1.2 N.m on lug-clamp
Power circuit: 2 N.m on cable
height
67.5 mm
width
45 mm
depth
67.5 mm
net weight
0.172 kg
