| range of product | Acti 9 |
|---|---|

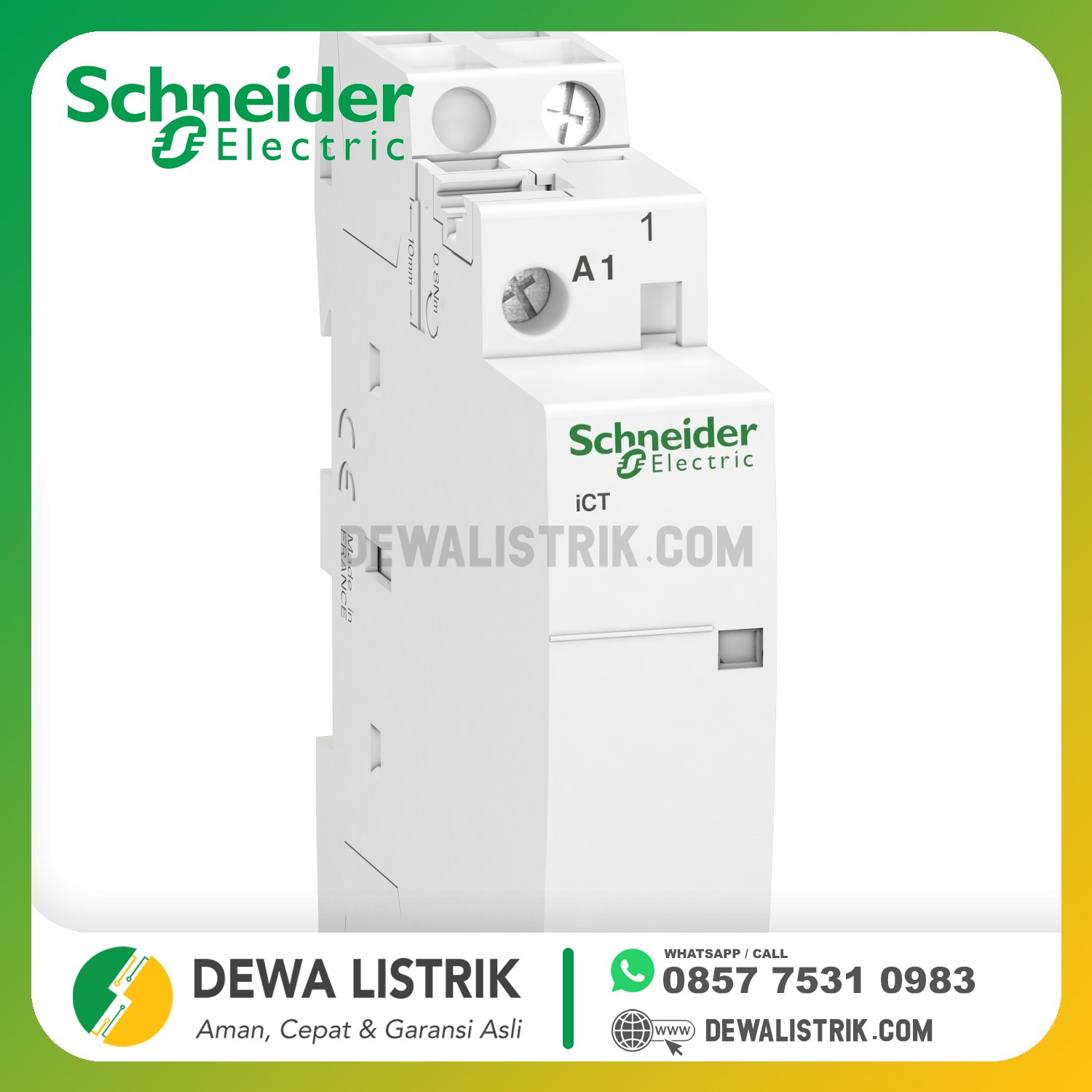

| product name | Acti 9 iCT |
| product or component type | Contactor |
| device short name | ICT |
| device application | Motor-heating-lighting |
| Poles | 1P |
| [Ie] rated operational current | 25 A AC-7A 8.5 A AC-7B |
| pole contact composition | 1 NO |
| network type | AC |
| control type | Remote control |
| [Uc] control circuit voltage | 230...240 V AC 50 Hz |
| network frequency | 50 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| maximum power | 1.2 W at 250 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| control signal type | Maintained |
| switching frequency | 100 switching operations/day |
| local signalling | Action indicator |
| hold-in power consumption in VA | 2.7 VA |
| inrush power in VA | 9.2 VA |
| mounting mode | Clip-on |
| mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| height | 81 mm |
| width | 18 mm |
| depth | 60 mm |
| colour | White |
| mechanical durability | 1000000 cycles |
| electrical durability | 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5A 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5B |
| connections - terminals | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible |
| tightening torque | Control circuit: 0.8 N.m Power circuit: 0.8 N.m |
| product compatibility | IACTc IACTs IATEt IACTp |
| compatibility code | ICT |
| market segment | Small commercial Residential |
| standards | IEC/EN 61095 |
|---|---|
| noise level | 30 dB |
| heat dissipation | 0.9 W at 50/60 Hz |
| IP degree of protection | IP20 |
| pollution degree | 2 |
| tropicalisation | 2 conforming to EN 60947-4-1 2 conforming to EN 61095 2 conforming to IEC 1095 |
| relative humidity | 95 % at 55 °C |
| operating altitude | 2000 m |
| ambient air temperature for operation | -5…60 °C |
| ambient air temperature for storage | -40…70 °C |
