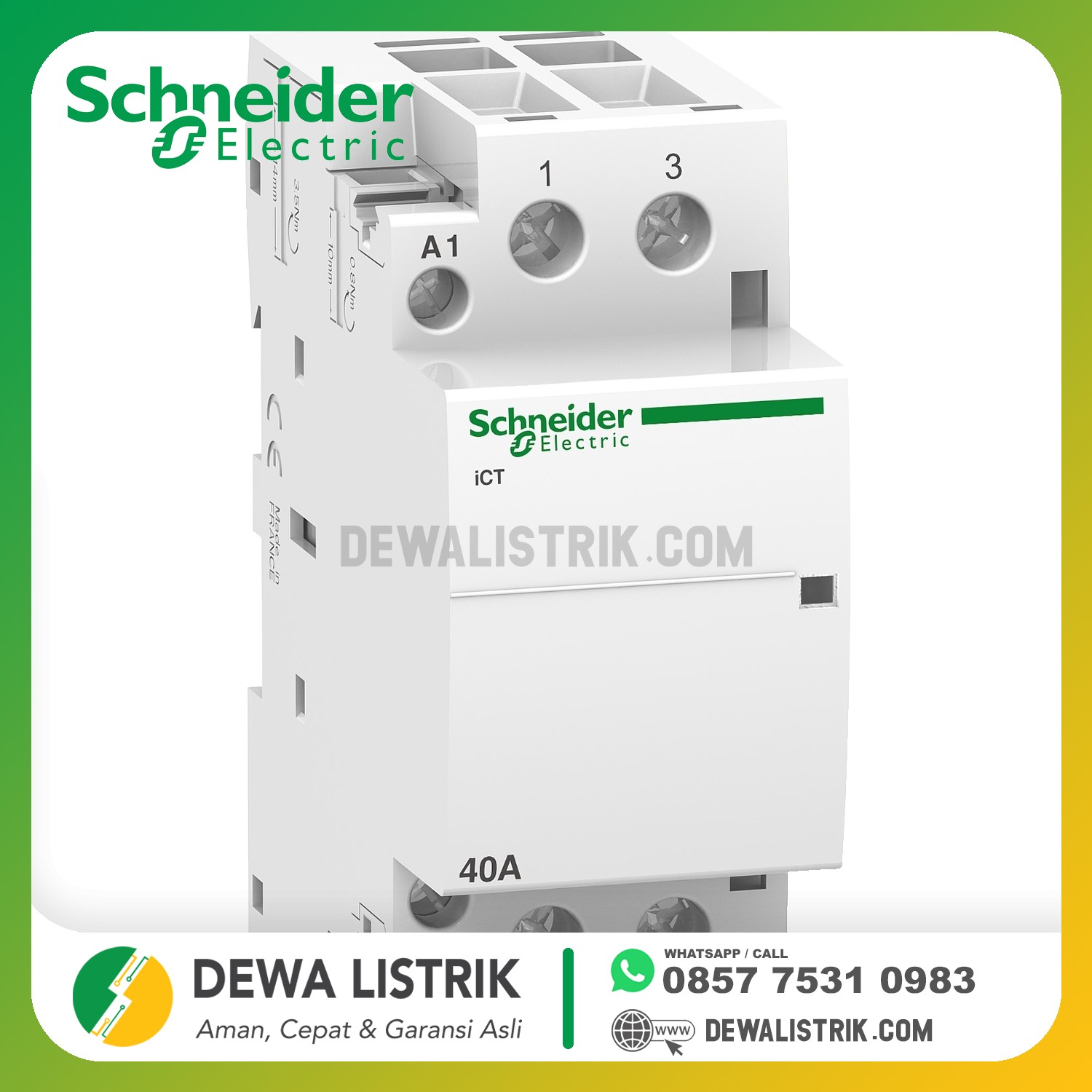

SCHNEIDER - ICT 40A 2NO 220..240VAC 50HZ CONTACTOR

Category: CIRCUIT BREAKER
No Referensi: A9C20842
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Acti 9
product name
Acti 9 iCT
product or component type
Contactor
device short name
ICT
device application
Motor-heating-lighting
Poles
2P
[Ie] rated operational current
40 A AC-7A
15 A AC-7B
pole contact composition
2 NO
network type
AC
control type
Remote control
[Uc] control circuit voltage
220...240 V AC 50 Hz
Complementary
network frequency
50 Hz
[Ue] rated operational voltage
250 V AC 50 Hz
maximum power
1.6 W at 250 V AC
[Ui] rated insulation voltage
500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
4 kV
control signal type
Maintained
switching frequency
100 switching operations/day
local signalling
Action indicator
hold-in power consumption in VA
4.6 VA
inrush power in VA
34 VA
mounting mode
Clip-on
mounting support
35 mm symmetrical DIN rail
9 mm pitches
4
height
85 mm
width
36 mm
depth
60 mm
colour
White
mechanical durability
1000000 cycles
electrical durability
100000 cycles IEC/EN 61095 40 A 50 Hz AC-7A
30000 cycles IEC/EN 61095 15 A 50 Hz AC-7B
30000 cycles IEC/EN 61095 50 Hz AC-7C
100000 cycles EN/IEC 60947-4-1 50 Hz AC-1
30000 cycles EN/IEC 60947-4-1 50 Hz AC-3
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
connections - terminals
Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid
Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid
Power circuit: tunnel type terminals1 cable(s) 6…16 mm² flexible
Power circuit: tunnel type terminals1 cable(s) 6…25 mm² rigid
Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
tightening torque
Control circuit: 0.8 N.m
Power circuit: 3.5 N.m
product compatibility
IACTc
IACTs
IACTp
IATEt
compatibility code
ICT
market segment
Small commercial
Residential
