| range | Acti 9 |
|---|---|

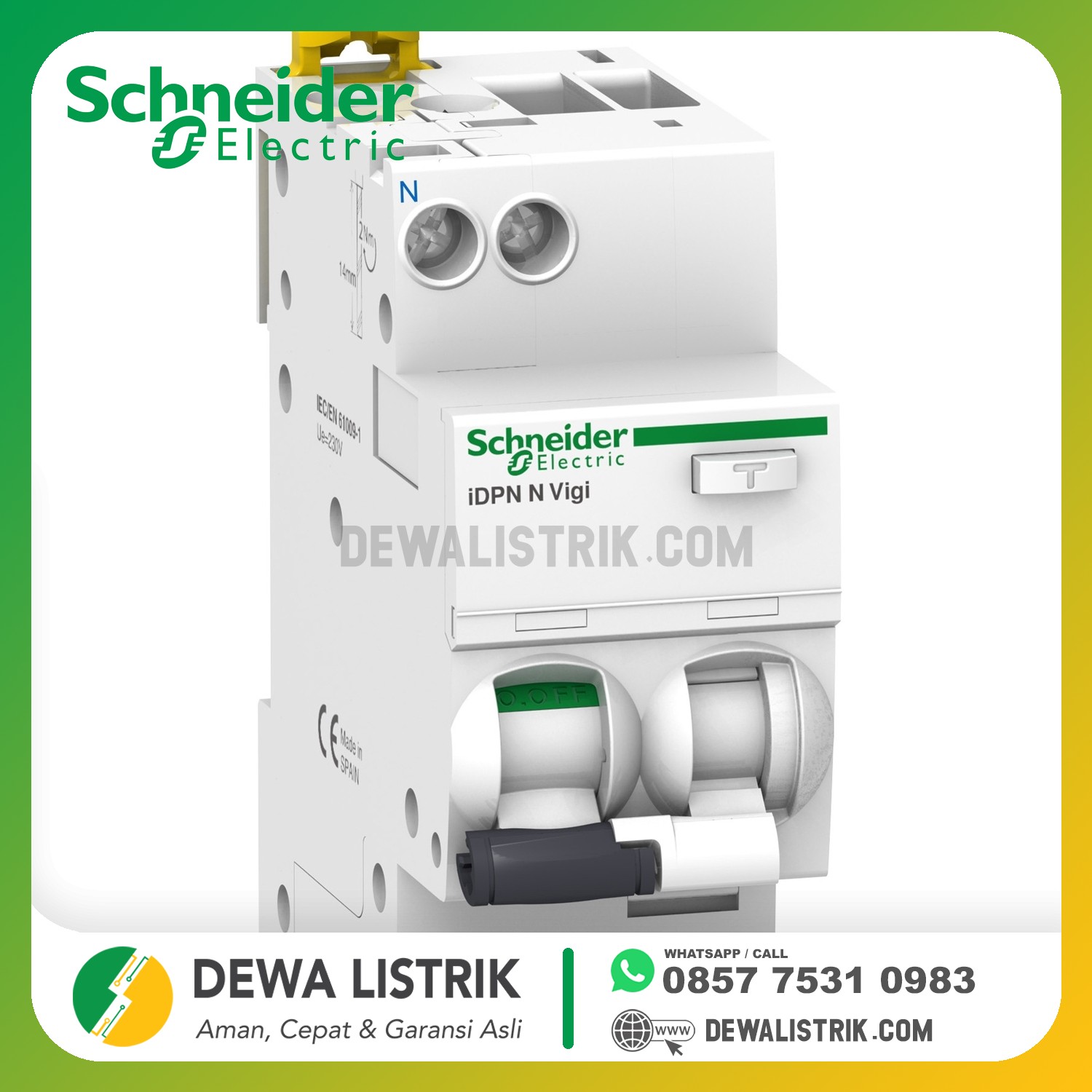

| product name | Acti 9 iDPN Vigi |
| product or component type | Residual current breaker with overcurrent protection (RCBO) |
| device short name | IDPN N Vigi |
| device application | Distribution |
| poles description | 1P + N |
| number of protected poles | 1 |
| neutral position | Left |
| [In] rated current | 25 A |
| network type | AC |
| trip unit technology | Thermal-magnetic |
| curve code | C |
| earth-leakage sensitivity | 30 mA |
| earth-leakage protection time delay | Instantaneous |
| earth-leakage protection class | Type AC |
| breaking capacity | 6000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| device location in system | Outgoer |
|---|---|
| network frequency | 50 Hz |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| magnetic tripping limit | 5...10 x In |
| residual current tripping technology | Voltage independent |
| [Ics] rated service breaking capacity | 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| rated breaking and making capacity | Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| limitation class | 3 conforming to EN/IEC 61009-2-1 |
| [Ui] rated insulation voltage | 400 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| contact position indicator | Yes |
| control type | Toggle |
| local signalling | ON, OFF, fault trip |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 4 |
| height | 85 mm |
| width | 36 mm |
| depth | 73 mm |
| net weight | 125 g |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability | 10000 cycles |
| locking options description | Padlocking device |
| connections - terminals | Single terminal top or bottom 1…16 mm² rigid Single terminal top or bottom 1…10 mm² flexible Single terminal top or bottom 1…10 mm² flexible with ferrule |
| wire stripping length | 15 mm for top or bottom connection |
| tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Integrated |
| standards | EN/IEC 61009-2-1 |
|---|---|
| product certifications | VDE GOST |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| pollution degree | 3 |
| overvoltage category | III conforming to IEC 60364 |
| electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1 |
| tropicalisation | 2 conforming to IEC 60068-1 |
| relative humidity | 95 % at 55 °C |
| ambient air temperature for operation | -5…60 °C |
| ambient air temperature for storage | -40…85 °C |
