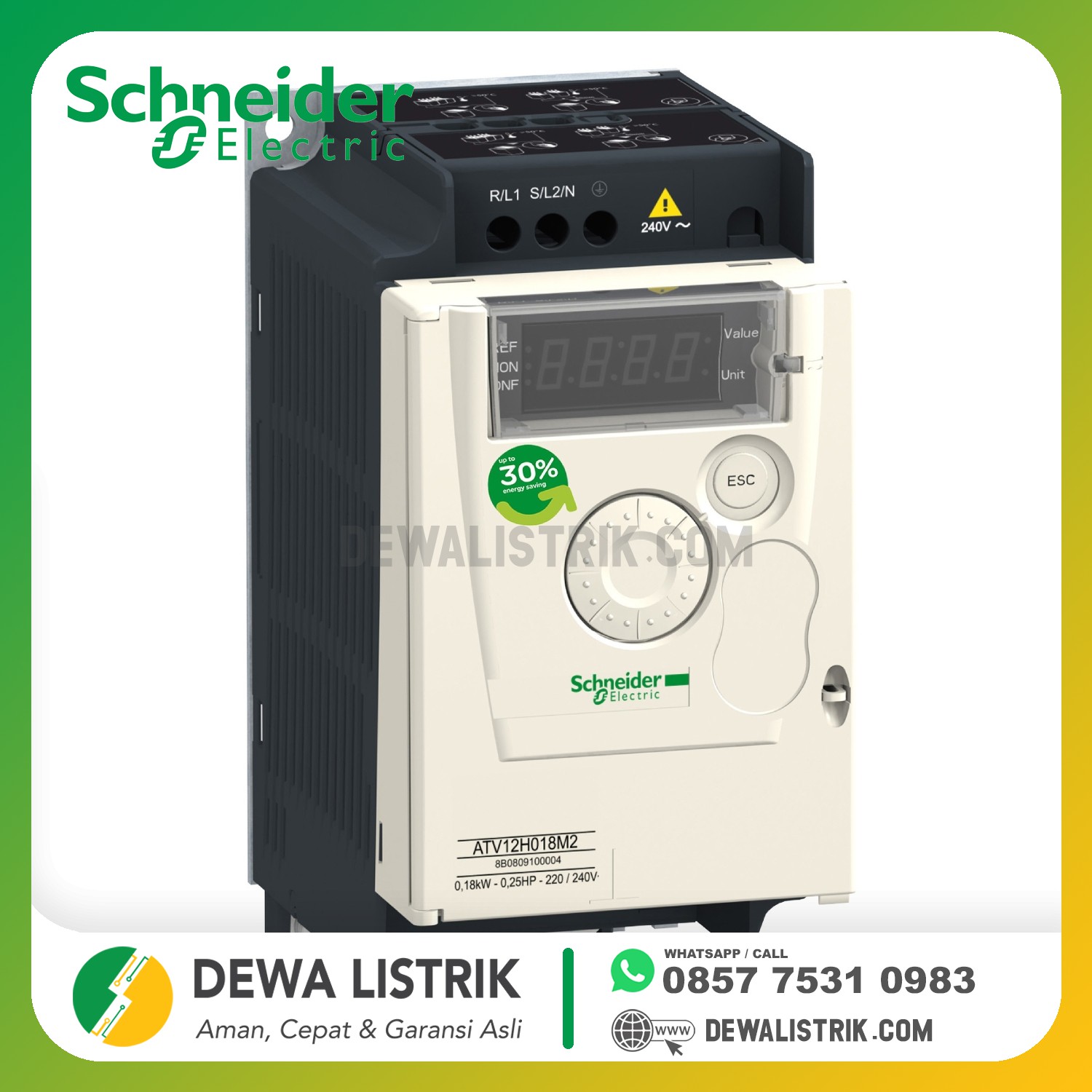

| range of product | Altivar 12 |
|---|---|
| product or component type | Variable speed drive |
| product destination | Asynchronous motors |
| product specific application | Simple machine |
| assembly style | With heat sink |
| component name | ATV12 |
| quantity per set | Set of 1 |
| EMC filter | Integrated |
| built-in fan | Without |
| network number of phases | 1 phase |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| motor power kW | 0.37 kW |
| motor power hp | 0.55 hp |
| communication port protocol | Modbus |
| line current | 5.9 A 200 V 4.9 A 240 V |
| speed range | 1...20 |
| transient overtorque | 150...170 % of nominal motor torque depending on drive rating and type of motor |
| asynchronous motor control profile | Quadratic voltage/frequency ratio Sensorless flux vector control Voltage/frequency ratio (V/f) |
| IP degree of protection | IP20 without blanking plate on upper part |
| noise level | 0 dB |
| supply frequency | 50/60 Hz +/- 5 % |
|---|---|
| connector type | 1 RJ45 Modbus on front face |
| physical interface | 2-wire RS 485 Modbus |
| transmission frame | RTU Modbus |
| transmission rate | 4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s |
| number of addresses | 1...247 Modbus |
| communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| prospective line Isc | <= 1 kA |
| continuous output current | 2.4 A 4 kHz |
| maximum transient current | 3.6 A 60 s |
| speed drive output frequency | 0.5...400 Hz |
| nominal switching frequency | 4 kHz |
| switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| braking torque | Up to 70 % of nominal motor torque without braking resistor |
| motor slip compensation | Adjustable Preset in factory |
| output voltage | 200...240 V 3 phases |
| electrical connection | Terminal 3.5 mm² AWG 12 L1, L2, L3, U, V, W, PA, PC |
| tightening torque | 0.8 N.m |
| insulation | Electrical between power and control |
| supply | Internal supply for reference potentiometer 5 V DC 4.75...5.25 V 10 mA overload and short-circuit protection Internal supply for logic inputs 24 V DC 20.4...28.8 V 100 mA overload and short-circuit protection |
| analogue input number | 1 |
| analogue input type | Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm Configurable current AI1 0...20 mA 250 Ohm |
| discrete input number | 4 |
| discrete input type | Programmable LI1...LI4 24 V 18...30 V |
| discrete input logic | Negative logic (sink) > 16 V < 10 V 3.5 kOhm Positive logic (source) 0...< 5 V > 11 V |
| sampling duration | 20 ms +/- 1 ms logic input 10 ms analogue input |
| linearity error | +/- 0.3 % of maximum value analogue input |
| analogue output number | 1 |
| analogue output type | Software-configurable voltage AO1 0...10 V 470 Ohm 8 bits Software-configurable current AO1 0...20 mA 800 Ohm 8 bits |
| discrete output number | 2 |
| discrete output type | Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O |
| minimum switching current | 5 mA 24 V DC logic relay |
| maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay |
| acceleration and deceleration ramps | Linear from 0 to 999.9 s S U |
| braking to standstill | By DC injection <= 30 s |
| protection type | Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases |
| frequency resolution | 0.1 Hz display unit Converter A/D, 10 bits analog input |
| time constant | 20 ms +/- 1 ms for reference change |
| marking | CE |
| operating position | Vertical +/- 10 degree |
| height | 143 mm |
| width | 72 mm |
| depth | 121.2 mm |
| product weight | 0.7 kg |
| functionality | Basic |
| specific application | Commercial equipment |
| Variable speed drive application selection | Commercial equipment : mixer Commercial equipment : other application Textile : ironing |
| motor starter type | Variable speed drive |
| electromagnetic compatibility | Immunity to conducted disturbances level 3 EN/IEC 61000-4-6 Surge immunity test level 3 EN/IEC 61000-4-5 Voltage dips and interruptions immunity test EN/IEC 61000-4-11 Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3 |
|---|---|
| electromagnetic emission | Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable 5 m Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2...12 kHz shielded motor cable 5 m Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable 10 m Conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable 20 m Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable 50 m Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable 50 m |
| product certifications | CSA C-Tick GOST NOM UL |
| vibration resistance | 1 gn EN/IEC 60068-2-6 13...200 Hz 1.5 mm peak to peak EN/IEC 60068-2-6 3...13 Hz drive unmounted on symmetrical DIN rail |
| shock resistance | 15 gn EN/IEC 60068-2-27 11 ms |
| relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| ambient air temperature for storage | -25...70 °C |
| ambient air temperature for operation | -10...40 °C protective cover from the top of the drive removed 40...60 °C with current derating 2.2 % per °C |
| operating altitude | > 1000...2000 m with current derating 1 % per 100 m <= 1000 m without derating |
