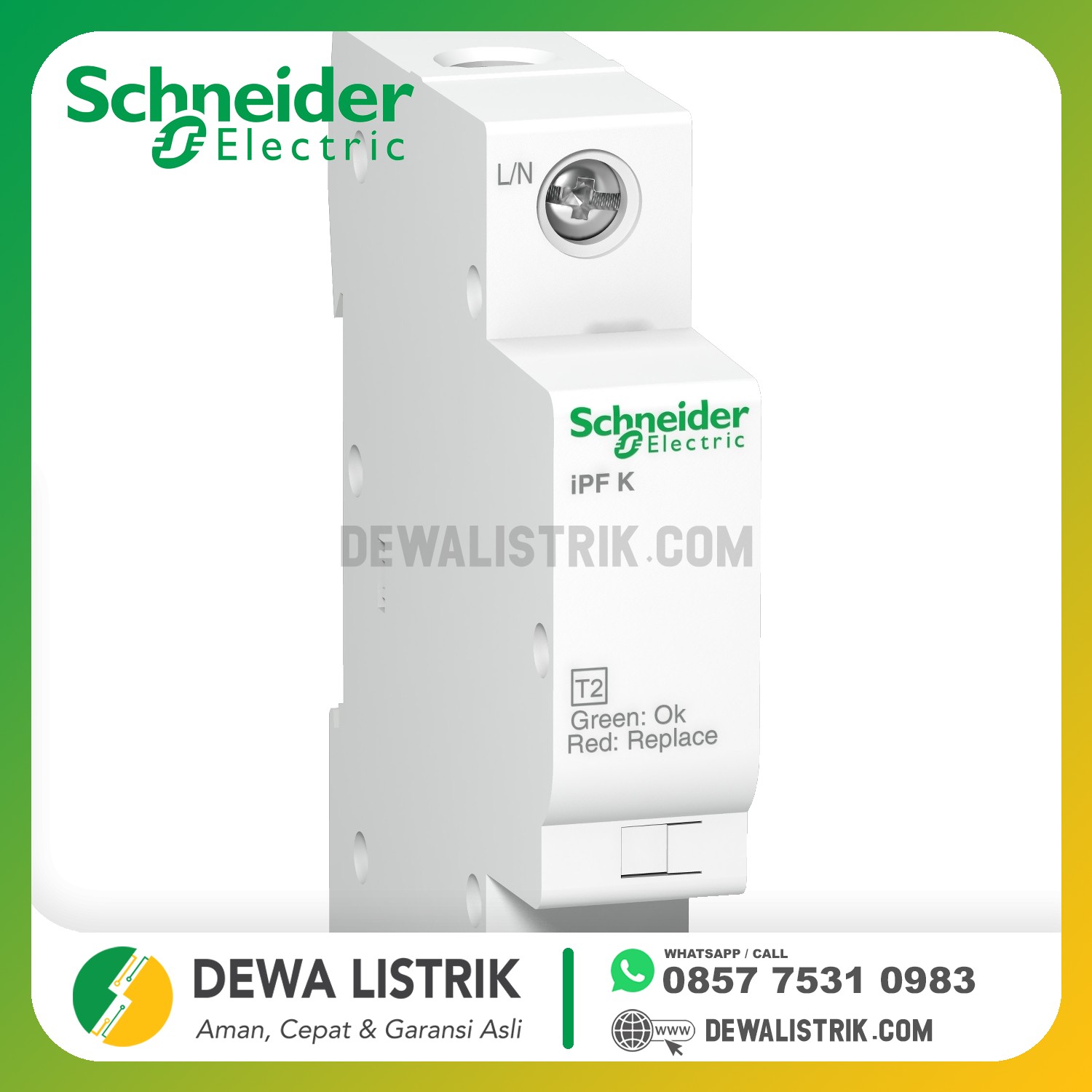

SCHNEIDER - IPF 40 40 KA 340V 1P SURGE ARRESTER

Category: ACTI9
No Referensi: A9L15686
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Acti 9
product name
Acti 9 iPF K
product or component type
Surge arrester
device short name
IPF K
device application
Distribution
poles description
1P
remote signalling
Without
surge arrester type
Electrical distribution network
earthing system
IT 230
TN-C
Complementary
surge arrester class type
Type 2
surge arrester technology
MOV
[Ue] rated operational voltage
230 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current
Common mode: 15 kA (L/PE)
Common mode: 15 kA (N/PE)
[Imax] maximum discharge current
Common mode: 40 kA L/PE
[Uc] maximum continuous operating voltage
Common mode: 340 V L/PE
maximum [Up] voltage protection level
Common mode <1.5 kV type 2 L/PE
[Ut] temporary overvoltage
337 V L/N 5 s withstand
442 V L/PE 5 s withstand
1200 V N/PE 200 ms withstand
1453 V L/PE 200 ms withstand
disconnector device type
Associated circuit breaker iK60N 40 A curve C - Icu 6 kA
Associated fuse gG 63 A - Icu 25 kA
[Isccr] short-circuit current rating
25 kA
signalling circuit voltage
0.25 A/250 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
2
height
81 mm
width
18 mm
depth
69 mm
net weight
125 g
colour
White (RAL 9003)
response time
<= 25 ns
[Ipe] Ground residual current
5 mA
connections - terminals
Tunnel type terminal (top or bottom) 25 mm² rigid
Tunnel type terminal (top or bottom) 16 mm² flexible
Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule
wire stripping length
11 mm
tightening torque
3.5 N.m
