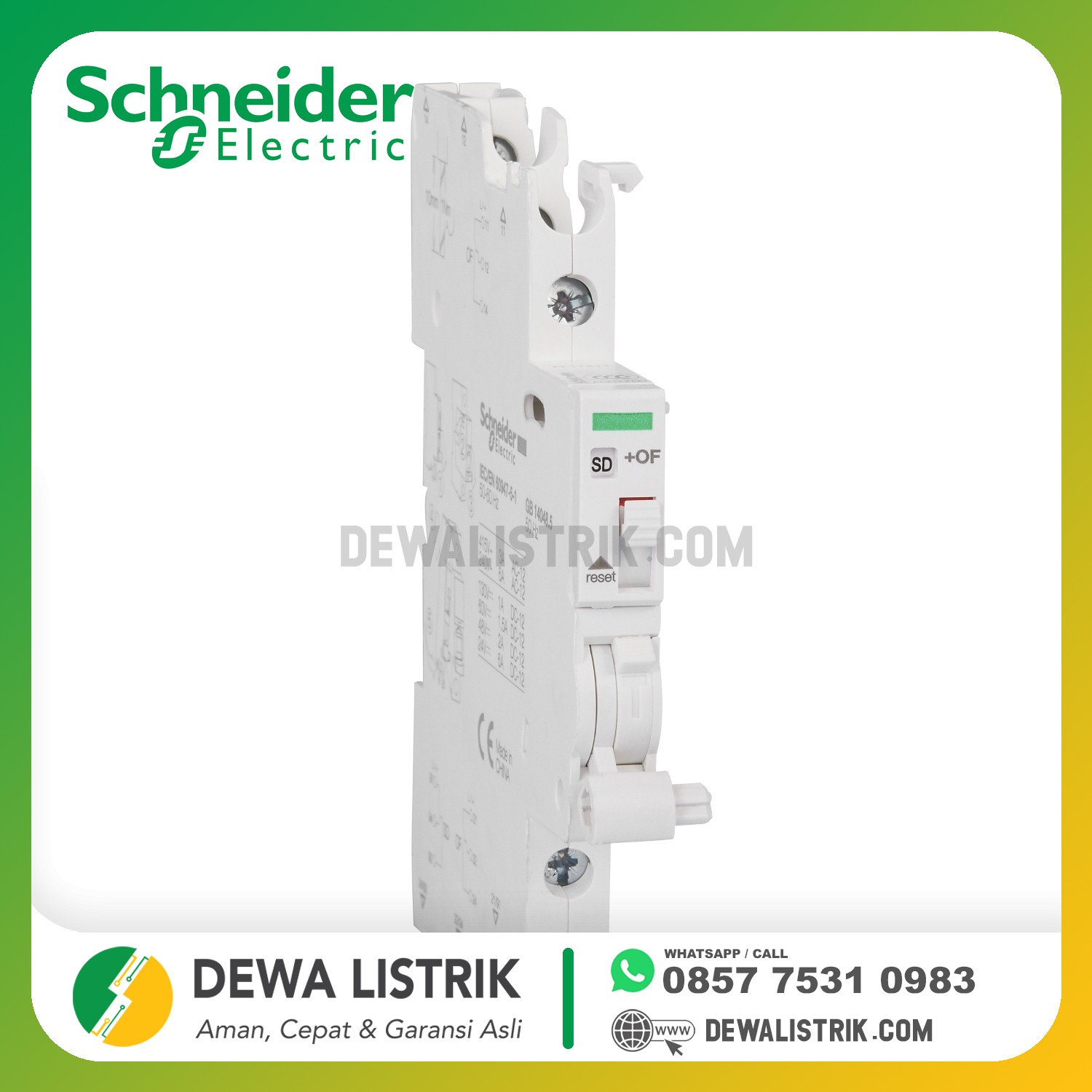

SCHNEIDER - ISD AUXILIARY CONTACT

Category: AKSESORIS
No Referensi: A9A26929
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Acti 9
product or component type
Double OC or fault contact
device short name
IOF/SD+OF
signal contacts composition
2 C/O
[In] rated current
1 A at 130 V DC
1.5 A at 60 V DC
2 A at 48 V DC
6 A at 24 V DC
3 A at 415 V AC - 50/60 Hz
6 A at 240 V AC - 50/60 Hz
9 mm pitches
1
Complementary
range compatibility
Acti 9 iC60
Acti 9 iDPN Vigi
Acti 9 iID
Acti 9 iSW-NA
Acti 9 iC60 RCBO
Acti 9 iC65
Acti 9 ARA
Acti 9 RCA
Acti 9 iDPN (China version)
Acti 9 iC40
[Ui] rated insulation voltage
4 kV
local signalling
Mechanical indicator
mounting mode
Fixed
mounting support
DIN rail
height
90 mm
width
9 mm
depth
73 mm
product weight
43 g
colour
White
connections - terminals
Screw clamp terminal 2 cable(s) 2.5 mm² rigid
Screw clamp terminal 1 cable(s) 0.5...2.5 mm² flexible
Screw clamp terminal 1 cable(s) 1...4 mm² rigid
Screw clamp terminal 2 cable(s) 1.5 mm² flexible with ferrule
wire stripping length
10 mm
tightening torque
1 N.m
Environment
standards
EN/IEC 60947-5-1
tropicalisation
2 conforming to EN/IEC 60947-5-1
ambient air temperature for operation
-35...70 °C
ambient air temperature for storage
-40...85 °C
