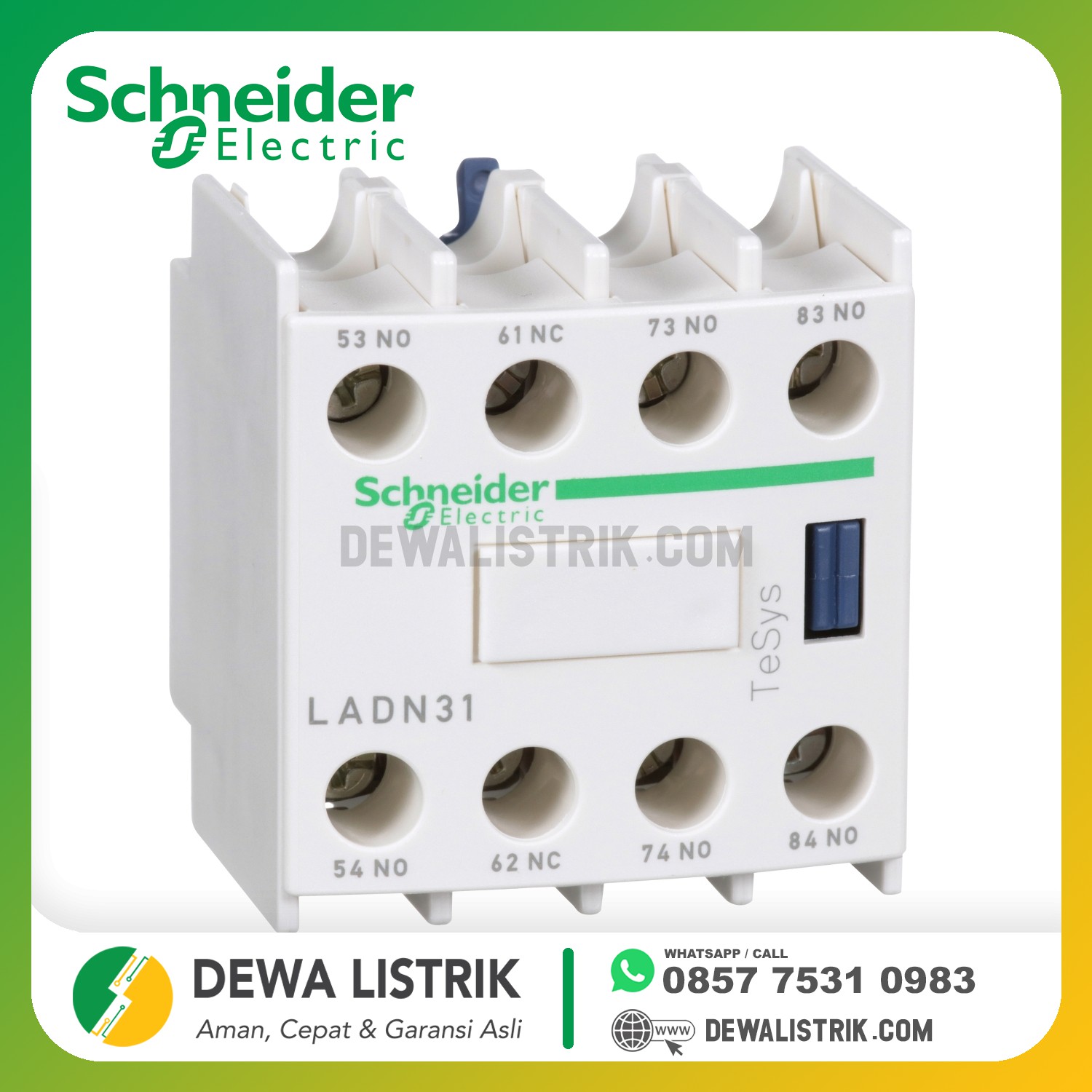

SCHNEIDER - KONTAK BLOK BANTU 3NO+1NC LAD LADN

TeSys D
TeSys D control relay
TeSys F

TeSys

LADN

Auxiliary contact block

TeSys D CR1F contactor

Instantaneous

3 NO + 1 NC

Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - with cable end
Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: flexible - without cable end
Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - with cable end
Screw clamp terminals 1 cable 1...2.5 mm² - cable stiffness: solid - without cable end
Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - with cable end
Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - without cable end
Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - with cable end
Screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: solid - without cable end

Front

690 V - conforming to IEC 60947-5-1
600 V - certifications CSA
600 V - certifications UL

690 V AC 25...400 Hz

10 A at <= 60 °C

140 A at <= 690 V AC conforming to IEC 60947-5-1
250 A at <= 690 V DC conforming to IEC 60947-5-1

100 A at 60 °C 1 s
120 A at 60 °C 500 ms
140 A at 60 °C 100 ms

GG fuse <= 10 A rating according to operational current for Ue <= 690 V

10 A gG IEC 60947-5-1

30 Mcycles

5 mA

17 V

1.5 ms on de-energisation (no overlap between NC and NO contact)
1.5 ms on energisation (no overlap between NC and NO contact)

1.5 ms

> 10 MOhm

0.05 kg

Normal environment

BS 4794
EN 60947-5-1
IEC 60947-5-1
NF C 63-140
VDE 0660

CSA
UL

IP2x conforming to VDE 0106

TH conforming to IEC 60068

-5...60 °C

-60...80 °C

3000 m without derating
