range of product | Harmony XB5 |
---|---|

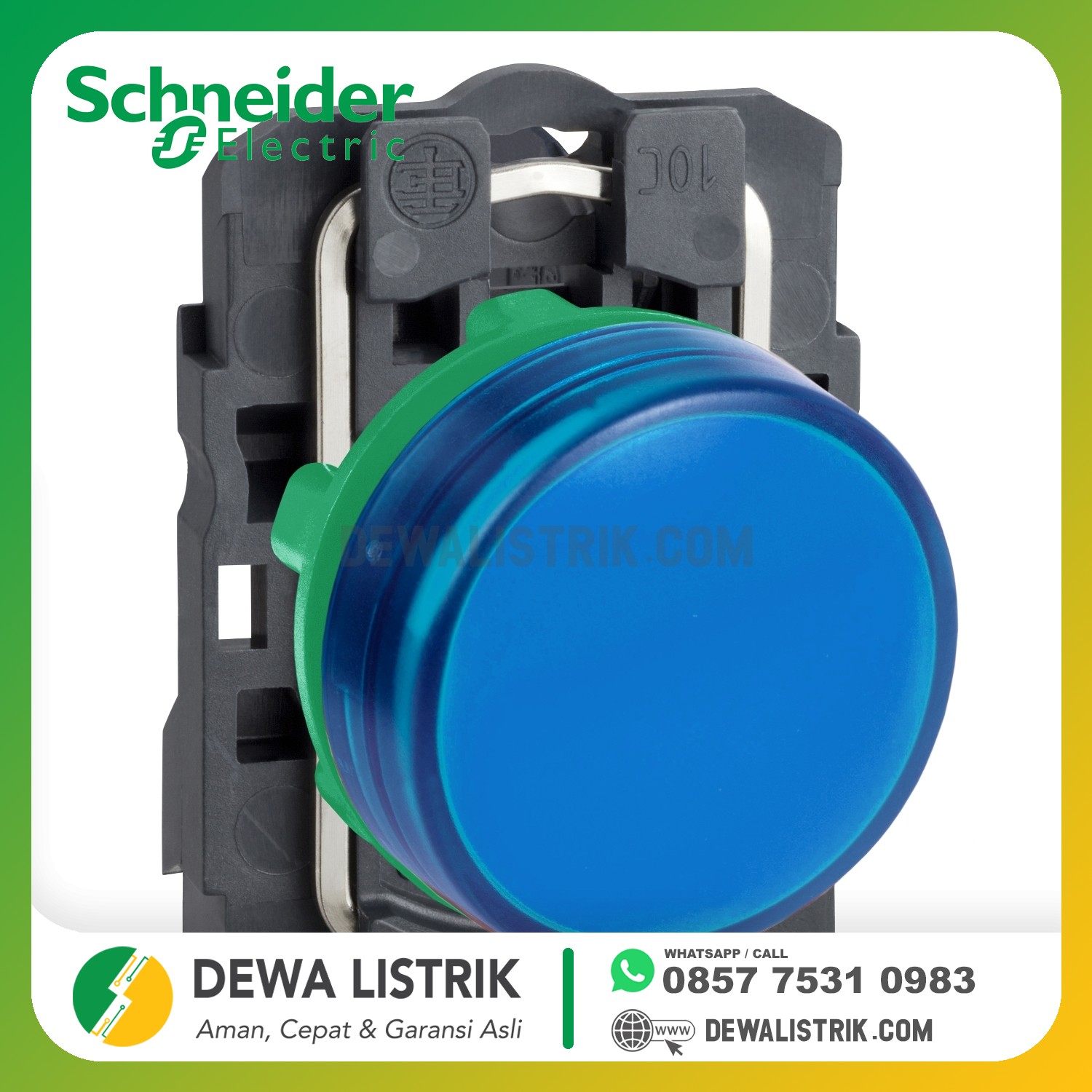

product or component type | Pilot light |
device short name | XB5 |
bezel material | Dark grey plastic |
fixing collar material | Plastic |
head type | Standard |
mounting diameter | 22 mm |
sale per indivisible quantity | 1 |
shape of signaling unit head | Round |
cap/operator or lens colour | Blue |
operator additional information | With plain lens |
light source | Protected LED |
bulb base | Integral LED |
light source colour | Blue |
[Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
device presentation | Complete product |
height | 42 mm |
---|---|
width | 30 mm |
depth | 54 mm |
terminals description ISO n°1 | (X1-X2)PL |
net weight | 0.038 kg |
resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
[Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
signalling type | Steady |
GCR BRIDGE | XB5AVCUST05 |
compatibility code | XB5 |
supply voltage limits | 195…264 V AC |
current consumption | 14 mA |
service life | 100000 h at rated voltage and 25 °C |
surge withstand | 1 kV conforming to IEC 61000-4-5 |
