range of product | Harmony XB5 |
---|---|

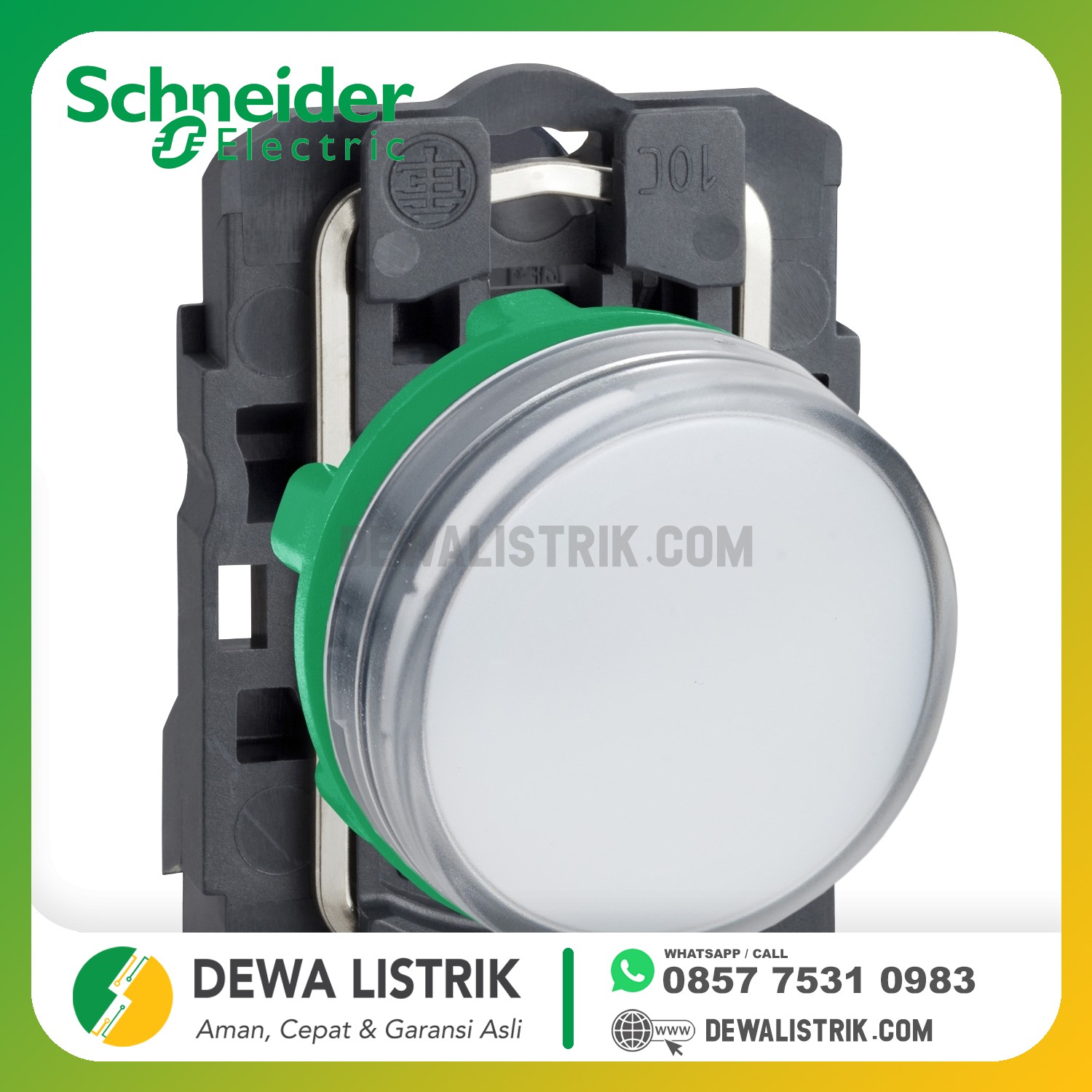

product or component type | Pilot light |
device short name | XB5 |
bezel material | Dark grey plastic |
fixing collar material | Plastic |
head type | Standard |
mounting diameter | 22 mm |
sale per indivisible quantity | 1 |
shape of signaling unit head | Round |
cap/operator or lens colour | White |
operator additional information | With plain lens |
light source | Protected LED |
bulb base | Integral LED |
light source colour | White |
[Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
device presentation | Complete product |
height | 42 mm |
---|---|
width | 30 mm |
depth | 54 mm |
terminals description ISO n°1 | (X1-X2)PL |
net weight | 0.038 kg |
resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
[Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
[Uimp] rated impulse withstand voltage | EN 60947-1 4 kV |
signalling type | Steady |
GCR BRIDGE | XB5AVCUST03 |
compatibility code | XB5 |
supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
current consumption | 18 mA |
service life | 100000 h at rated voltage and 25 °C |
surge withstand | 1 kV conforming to IEC 61000-4-5 |
protective treatment | TH |
---|---|
ambient air temperature for storage | -40…70 °C |
ambient air temperature for operation | -40…70 °C |
overvoltage category | Class II conforming to IEC 60536 |
IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653 |
NEMA degree of protection | NEMA 13 NEMA 4X |
IK degree of protection | IK05 conforming to IEC 50102 |
standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 EN/IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
product certifications | UL listed CSA |
vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
shock resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
electromagnetic compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electromagnetic emission class B conforming to IEC 55011 |
resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
electromagnetic emission | Class B conforming to IEC 55011 |
