SCHNEIDER - LAMPU INDIKASI LENGKAP KUNING

Category: PUSH BUTTON
No Referensi: XB4BVG5
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

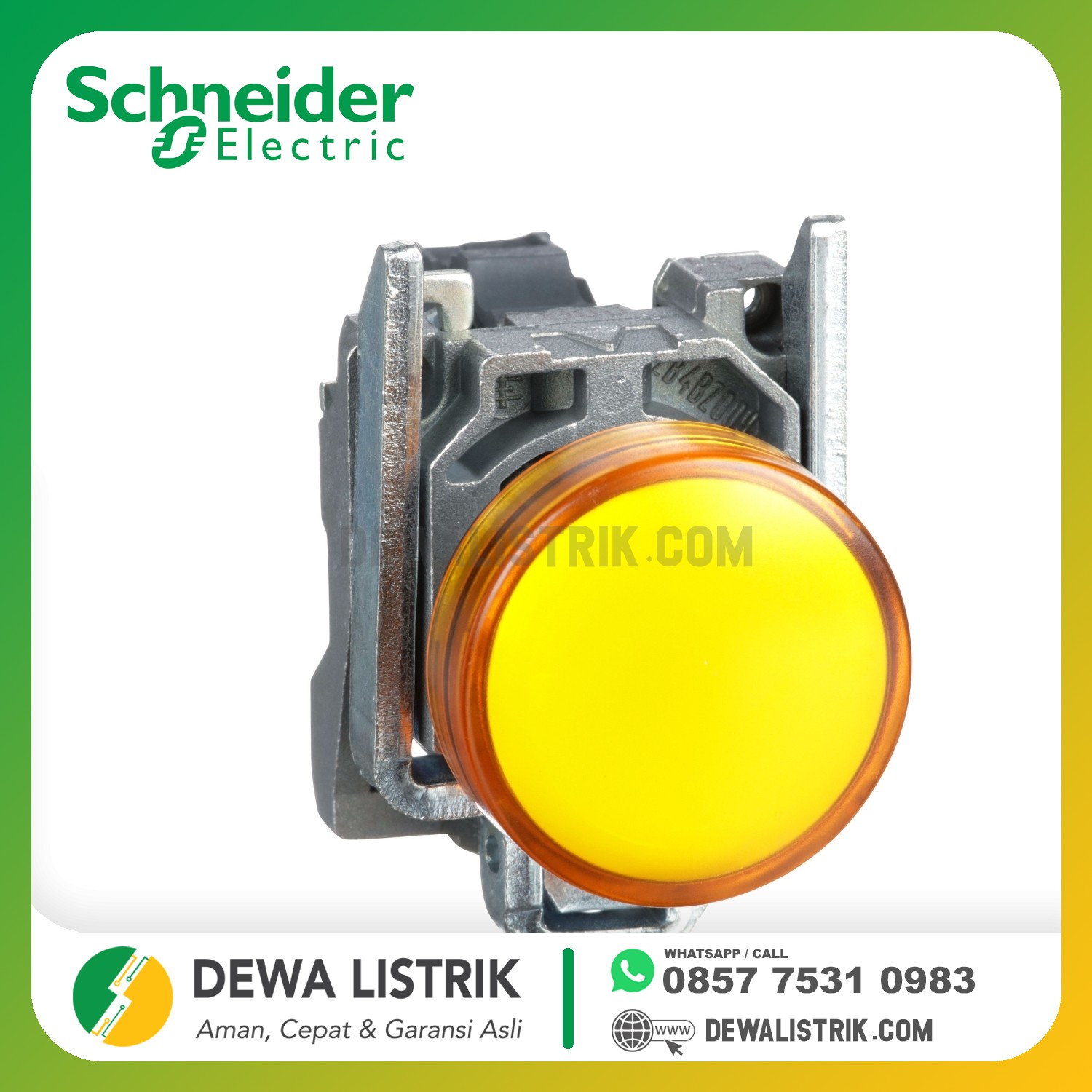

Pilot light, metal, orange, Ø22, plain lens with integral LED, 110…120 VAC

Main
range of product
Harmony XB4
product or component type
Pilot light
device short name
XB4
bezel material
Chromium plated metal
fixing collar material
Zamak
mounting diameter
22 mm
head type
Standard
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Orange
operator additional information
With plain lens
light source
Protected LED
bulb base
Integral LED
light source colour
Orange
[Us] rated supply voltage
110...120 V AC 50/60 Hz
Complementary
height
47 mm
width
30 mm
depth
54 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0.08 kg
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
EN 60947-1 4 kV
signalling type
Steady
current consumption
14 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
device presentation
Complete product
supply voltage limits
100…132 V AC
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
electrical shock protection class
Class I conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
standards
EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-5
EN/IEC 60947-5-4
JIS C8201-5-1
JIS C8201-1
product certifications
UL listed
CSA
vibration resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
electromagnetic emission
Class B conforming to IEC 55011
