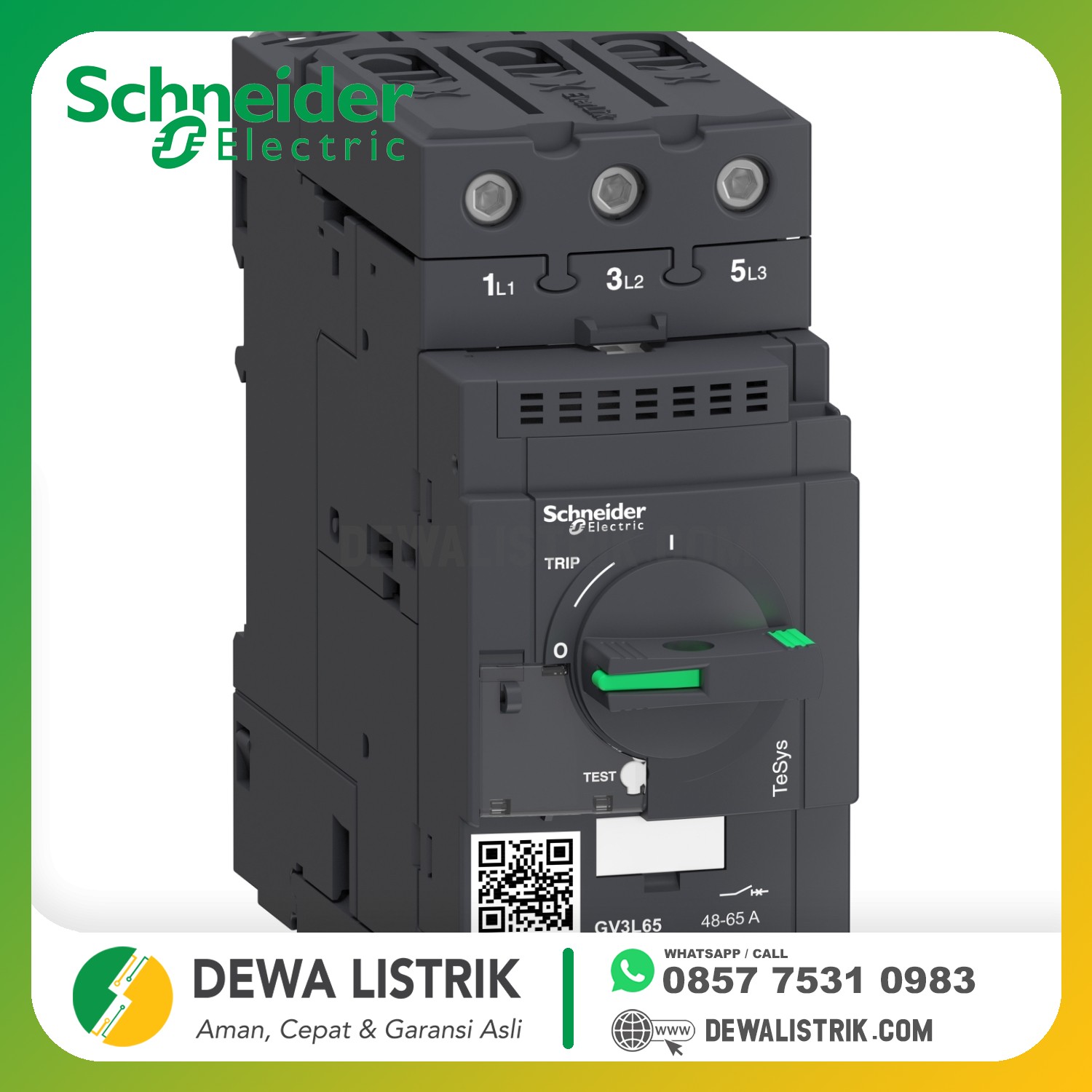

SCHNEIDER - MAGNETIC BREAKER 65A

Category: CIRCUIT BREAKER
No Referensi: GV3L65
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
TeSys
product name
TeSys GV3
device short name
GV3L
device application
Motor
poles description
3P
network type
AC
utilisation category
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
network frequency
50/60 Hz
breaking capacity
100 kA Icu at 230/240 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz
12 kA Icu at 500 V AC 50/60 Hz
6 kA Icu at 690 V AC 50/60 Hz
50 kA Icu at 400/415 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity
100 % at 230/240 V AC 50/60 Hz
100 % at 400/415 V AC 50/60 Hz
100 % at 440 V AC 50/60 Hz
50 % at 500 V AC 50/60 Hz
50 % at 690 V AC 50/60 Hz
trip unit technology
Magnetic
magnetic tripping current
910 A
Complementary
fixing mode
35 mm symmetrical DIN rail: clipped
Panel: screwed (with 3 x M4 screws)
operating position
Any position
motor power kW
55 kW at 690 V AC 50/60 Hz
30 kW at 400/415 V AC 50/60 Hz
37 kW at 500 V AC 50/60 Hz
control type
Rotary knob
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
IEC 60947-2 6 kV
mechanical durability
50000 cycles
electrical durability
50000 cycles for AC-3 at 415 V
maximum operating rate
25 cyc/h
connections - terminals
EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid
EverLink BTR screw connectors 2 cable(s) 1…25 mm² solid
EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end
EverLink BTR screw connectors 2 cable(s) 1…25 mm² flexible without cable end
EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end
EverLink BTR screw connectors 2 cable(s) 1…25 mm² flexible with cable end
tightening torque
5 N.m on EverLink BTR screw connectors for cable 25 mm²
8 N.m on EverLink BTR screw connectors for cable 35 mm²
mechanical robustness
Shocks: 15 Gn for 11 ms closed conforming to IEC 60068-2-27
Shocks: 30 Gn for 11 ms opened conforming to IEC 60068-2-27
Vibrations: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
suitability for isolation
Yes conforming to IEC 60947-1
height
132 mm
width
55 mm
depth
136 mm
net weight
0.96 kg
