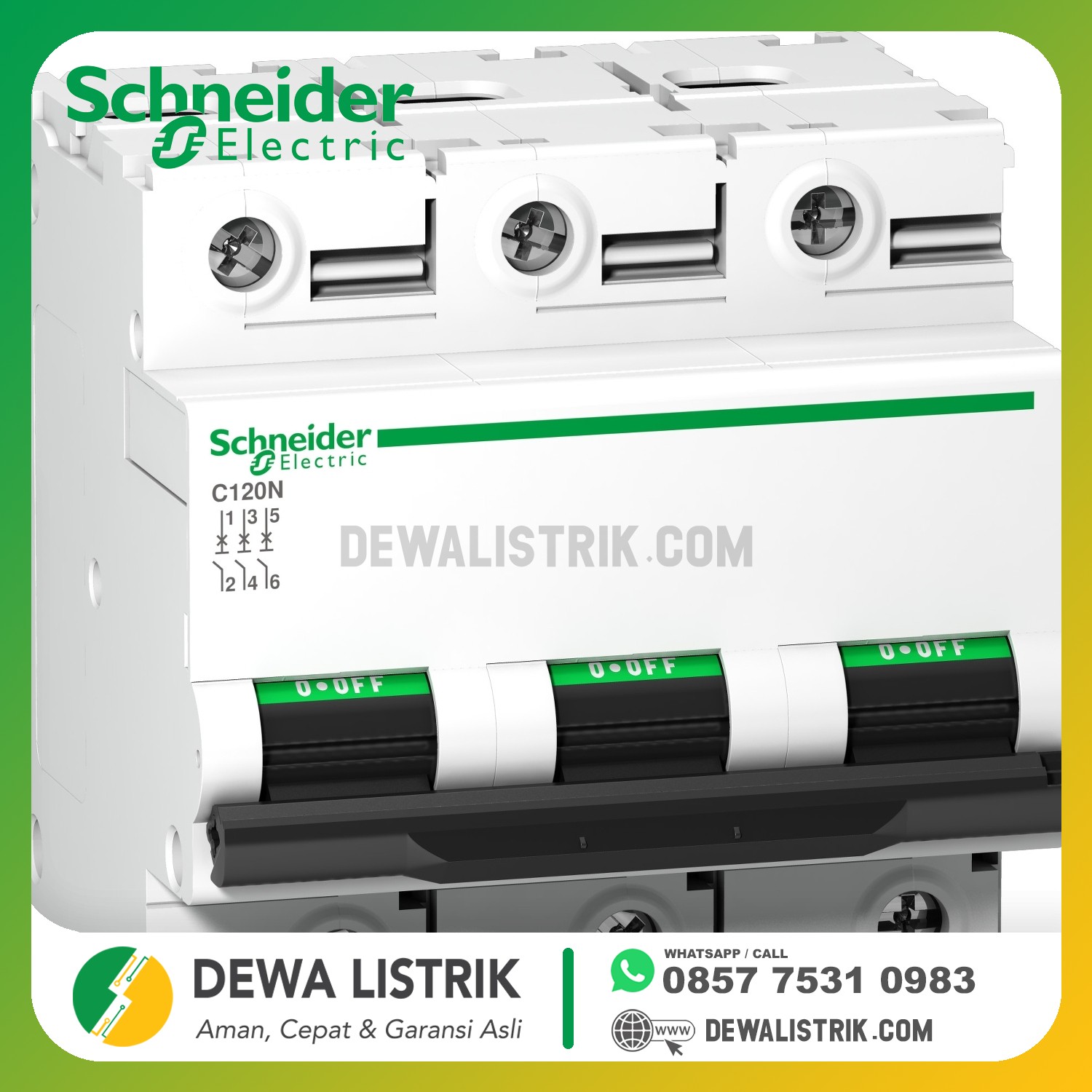

SCHNEIDER - MCB C120N 3P 80A C 1000 - 10KA

Category: ACTI9
No Referensi: A9N18365
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
C120
range
Acti 9
product name
C120
product or component type
Miniature circuit-breaker
device short name
C120N
device application
Distribution
poles description
3P
number of protected poles
3
[In] rated current
80 A at 30 °C
network type
AC
trip unit technology
Thermal-magnetic
curve code
C
breaking capacity
10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2
suitability for isolation
Yes conforming to IEC 60947-2
Complementary
network frequency
50/60 Hz
[Ue] rated operational voltage
<= 375 V DC
380...415 V AC 50/60 Hz
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
230...400 V AC 50/60 Hz
magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
10 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC
limitation class
3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-2
contact position indicator
Yes
control type
Toggle
local signalling
ON/OFF indication
mounting mode
Clip-on
mounting support
35 mm symmetrical DIN rail
comb busbar and distribution block compatibility
YES
9 mm pitches
9
height
81 mm
width
81 mm
depth
73 mm
net weight
0.615 kg
colour
White
mechanical durability
20000 cycles
electrical durability
5000 cycles conforming to IEC 60947-2
connections - terminals
Tunnel type terminals1…50 mm² rigid
Tunnel type terminals1.5…35 mm² flexible
wire stripping length
15 mm
tightening torque
3.5 N.m
earth-leakage protection
Separate block
Environment
standards
EN/IEC 60898-1
EN/IEC 60947-2
product certifications
EAC
IP degree of protection
IP20 conforming to IEC 60529
pollution degree
3 conforming to IEC 60947-2
overvoltage category
IV
tropicalisation
2 conforming to IEC 60068-1
relative humidity
95 % at 55 °C
operating altitude
2000 m
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
