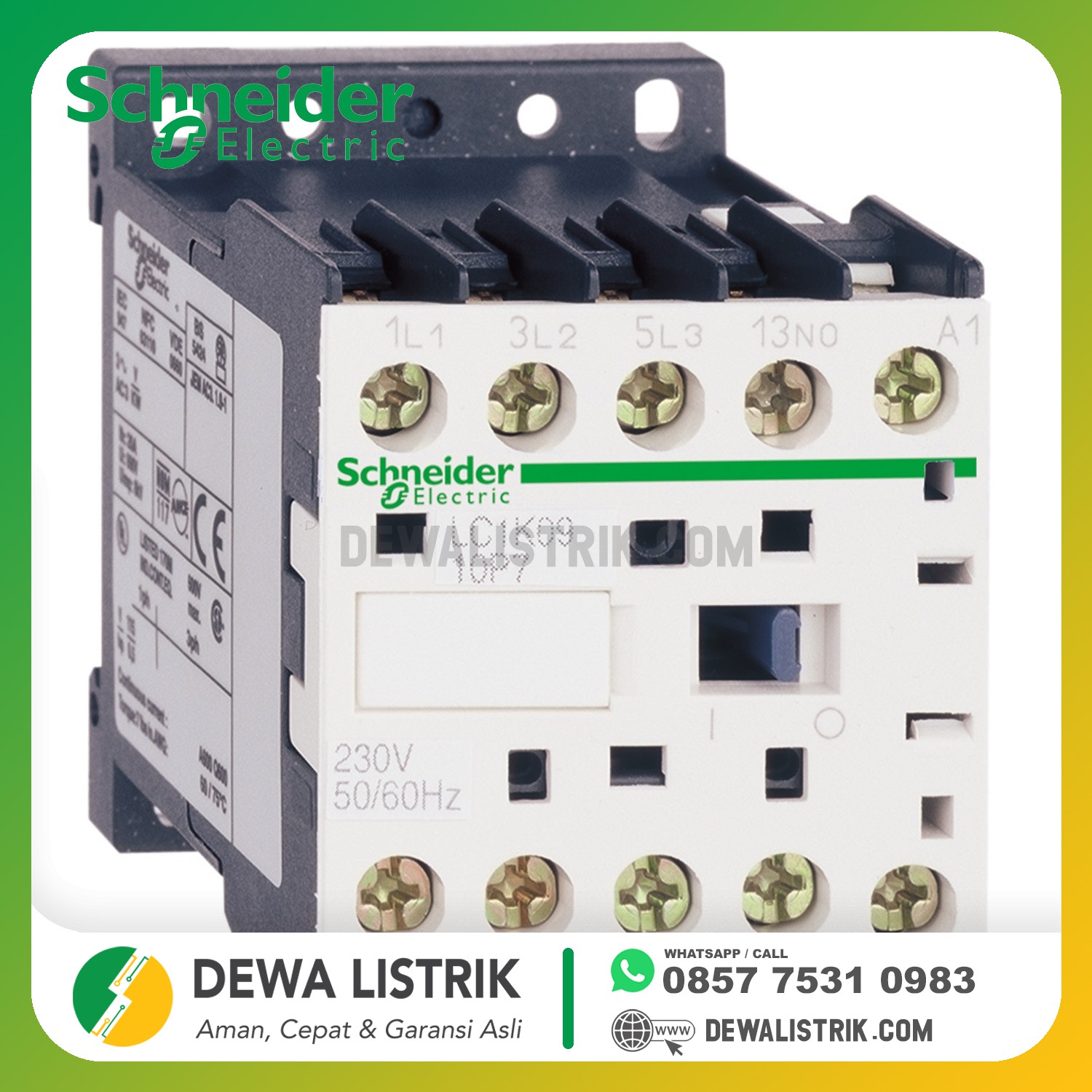

SCHNEIDER - MINI KONTAKTOR / CONTACTOR 3P 12A 24VAC

TeSys

Contactor

TeSys K

LC1K

Control

Motor control
Resistive load

AC-1
AC-3
AC-4

3P

3 NO

690 V AC 50/60 Hz for power circuit
<= 690 V AC 50/60 Hz for signalling circuit

20 A (<= 50 °C) at <= 440 V AC AC-1 for power circuit
16 A (<= 70 °C) at 690 V AC AC-1 for power circuit
12 A at <= 440 V AC AC-3 for power circuit

AC 50/60 Hz

24 V AC 50/60 Hz

3 kW at 220...230 V AC 50/60 Hz AC-3
2.2 kW at 400 V AC 50/60 Hz AC-4
5.5 kW at 440 V AC 50/60 Hz AC-3
5.5 kW at 380...415 V AC 50/60 Hz AC-3
4 kW at 480 V AC 50/60 Hz AC-3
4 kW at 500...600 V AC 50/60 Hz AC-3
4 kW at 660...690 V AC 50/60 Hz AC-3

1 NO

8 kV

III

20 A at <= 50 °C for power circuit
10 A at <= 50 °C for signalling circuit

110 A AC for signalling circuit conforming to IEC 60947
144 A AC for power circuit conforming to NF C 63-110
144 A AC for power circuit conforming to IEC 60947

110 A at 440 V conforming to IEC 60947
80 A at 500 V conforming to IEC 60947
70 A at 660...690 V conforming to IEC 60947

25 A <= 50 °C >= 15 min power circuit
80 A 1 s signalling circuit
90 A 500 ms signalling circuit
110 A 100 ms signalling circuit
115 A <= 50 °C 1 s power circuit
105 A <= 50 °C 5 s power circuit
100 A <= 50 °C 10 s power circuit
75 A <= 50 °C 30 s power circuit
55 A <= 50 °C 1 min power circuit
50 A <= 50 °C 3 min power circuit

25 A gG at <= 440 V for power circuit
25 A aM for power circuit
10 A gG for signalling circuit conforming to IEC 60947
10 A gG for signalling circuit conforming to VDE 0660

3 mOhm at 50 Hz - Ith 20 A for power circuit

690 V for signalling circuit conforming to IEC 60947-4-1
690 V for signalling circuit conforming to IEC 60947-5-1
600 V for signalling circuit conforming to UL 508
600 V for power circuit conforming to CSA C22.2 No 14
600 V for signalling circuit conforming to CSA C22.2 No 14
690 V for power circuit conforming to IEC 60947-4-1
600 V for power circuit conforming to UL 508

> 10 MOhm for signalling circuit

30 VA at 20 °C

4.5 VA at 20 °C

1.3 W

0.2...0.75 Uc at <= 50 °C drop-out
0.8...1.15 Uc at <= 50 °C operational

Screw clamp terminals 2 cable(s) 4 mm² - cable stiffness: solid
Screw clamp terminals 2 cable(s) 4 mm² - cable stiffness: flexible - without cable end
Screw clamp terminals 2 cable(s) 1.5 mm² - cable stiffness: flexible - with cable end

3600 cyc/h

Type instantaneous (1 NO)

<= 400 Hz

5 mA for signalling circuit

17 V for signalling circuit

Plate
Rail

1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm

10...20 ms coil de-energisation and NO opening
10...20 ms coil energisation and NO closing

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

0.5 mm

10 Mcycles

0.3 Mcycles 20 A AC-1 at Ue <= 440 V
1.3 Mcycles 12 A AC-3 at Ue <= 440 V

Shocks contactor closed, on X axis 10 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Y axis 15 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on X axis 6 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Y axis 10 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27
Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6
Vibrations contactor opened 2 Gn, 5...300 Hz IEC 60068-2-6

58 mm

45 mm

57 mm

0.18 kg

BS 5424
IEC 60947
NF C 63-110
VDE 0660

CSA
UL

IP2x conforming to VDE 0106

TC conforming to IEC 60068
TC conforming to DIN 50016

-25...50 °C

-50...80 °C

2000 m without derating

V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102
