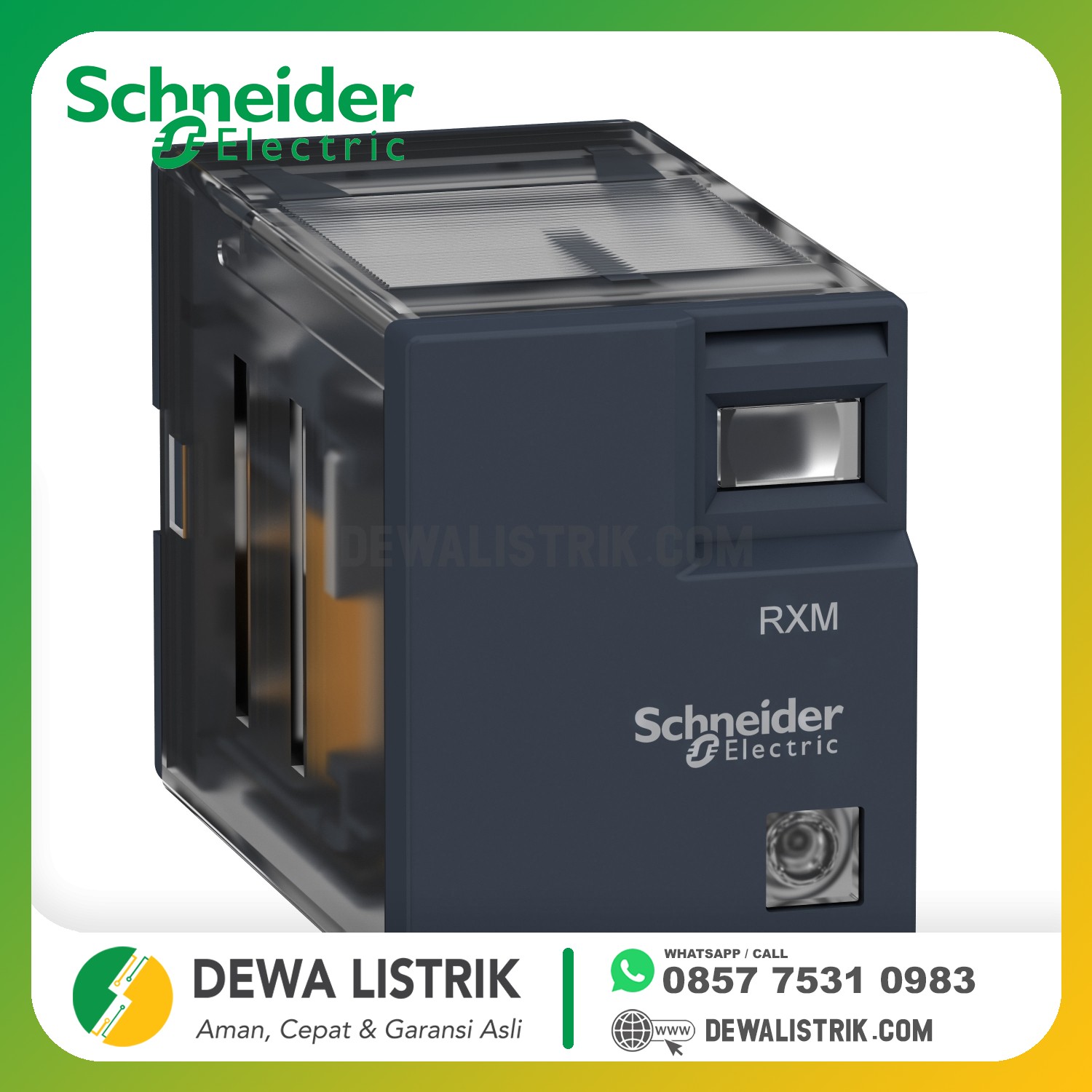

| range of product | Harmony Relay |
|---|---|
| series name | Miniature |
| product or component type | Plug-in relay |
| device short name | RXM |
| coil interference suppression | Without |
| utilisation coefficient | 20 % |
| sale per indivisible quantity | 10 |
| contact operation | Standard |
|---|---|
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| status LED | Without |
| control type | Without push-button |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| [Uimp] rated impulse withstand voltage | 3.6 kV during 1.2/50 µs conforming to IEC 61810-7 |
| contacts material | Silver alloy (Ag/Ni) |
| [Ie] rated operational current | 5 A (AC-1/DC-1) NO conforming to IEC 2.5 A (AC-1/DC-1) NC conforming to IEC |
| minimum switching current | 10 mA |
| maximum switching voltage | 250 V AC 250 V DC |
| minimum switching voltage | 17 V |
| load current | 5 A at 250 V AC 5 A at 28 V DC |
| maximum switching capacity | 1250 VA AC 140 W DC |
| minimum switching capacity | 170 mW |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| average coil consumption | 0.9 W, DC |
| drop-out voltage threshold | >= 0.1 Uc DC |
| operating time | 20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact |
| average resistance | 630 Ohm network: DC at 20 °C +/- 10 % |
| rated operational voltage limits | 19.2...26.4 V DC |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| CAD overall width | 21 mm |
| CAD overall height | 27 mm |
| CAD overall depth | 46 mm |
| net weight | 0.032 kg |
| dielectric strength | 2000 V AC between coil and contact 2000 V AC between poles 1000 V AC between contacts |
| safety reliability data | B10d = 100000 |
| standards | CE EN/IEC 61810-1 (iss. 2) |
|---|---|
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…55 °C |
| vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| shock resistance | 10 gn for opening conforming to EN/IEC 60068-2-27 5 gn for closing conforming to EN/IEC 60068-2-27 |
