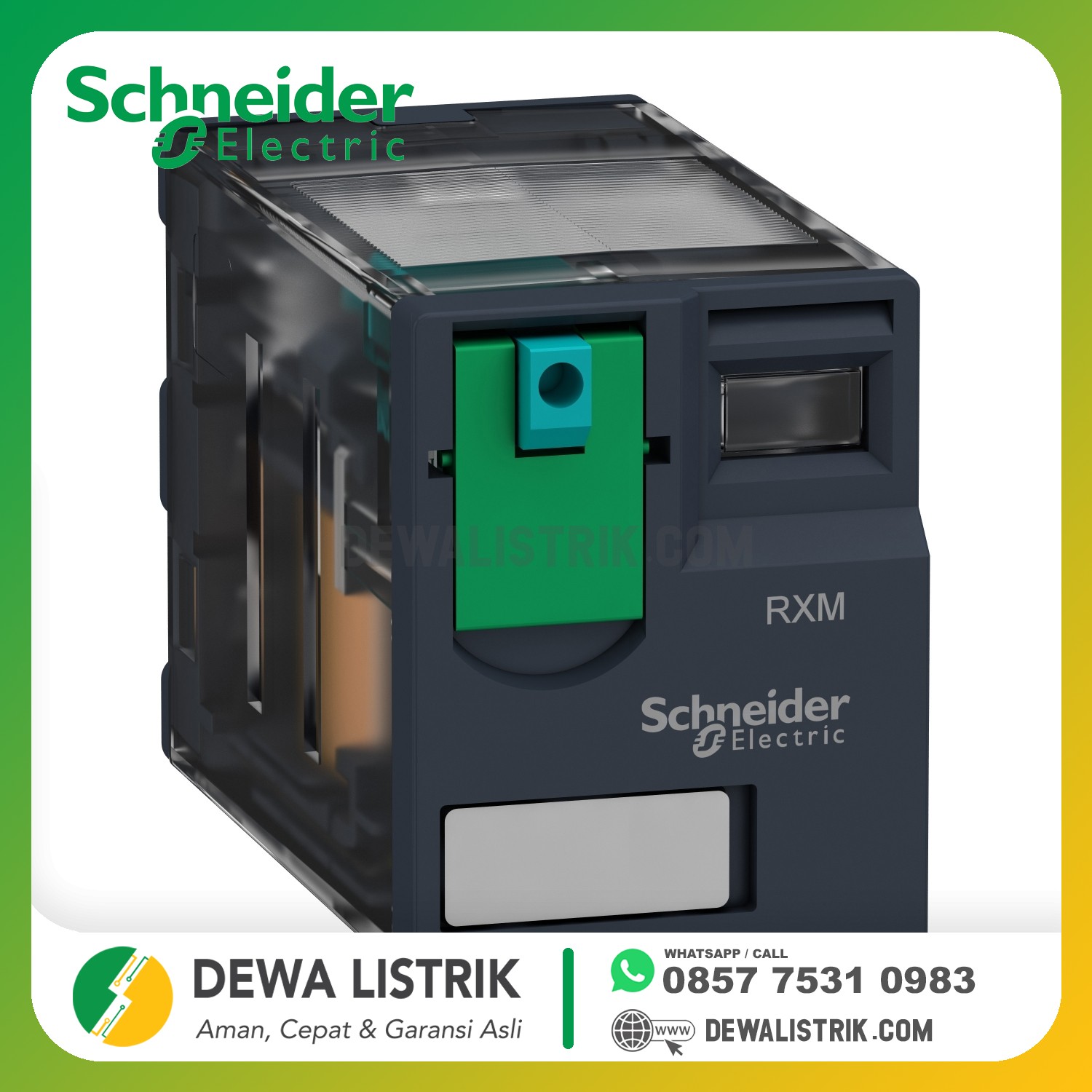

| range of product | Harmony Relay |
|---|---|
| series name | Miniature |
| product or component type | Plug-in relay |
| device short name | RXM |
| contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 110 V DC |
| [Ithe] conventional enclosed thermal current | 12 A at -40…55 °C |
| status LED | Without |
| control type | Lockable test button |
| utilisation coefficient | 20 % |
| shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| contacts material | AgNi |
| [Ie] rated operational current | 12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL |
| maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 12 A at 250 V AC 12 A at 28 V DC |
| maximum switching capacity | 3000 VA/336 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| average coil consumption in W | 0.9 W |
| drop-out voltage threshold | >= 0.1 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 13440 Ohm at 20 °C +/- 10 % |
| rated operational voltage limits | 88...121 V DC |
| safety reliability data | B10d = 100000 |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| net weight | 0.037 kg |
| device presentation | Complete product |
| dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact 2000 V AC between poles |
|---|---|
| product certifications | Lloyd's CE CSA GOST UL |
| standards | UL 508 EN/IEC 61810-1 CSA C22.2 No 14 |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…55 °C |
| vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| shock resistance | 10 gn for in operation 30 gn for not operating |
| pollution degree | 3 |
