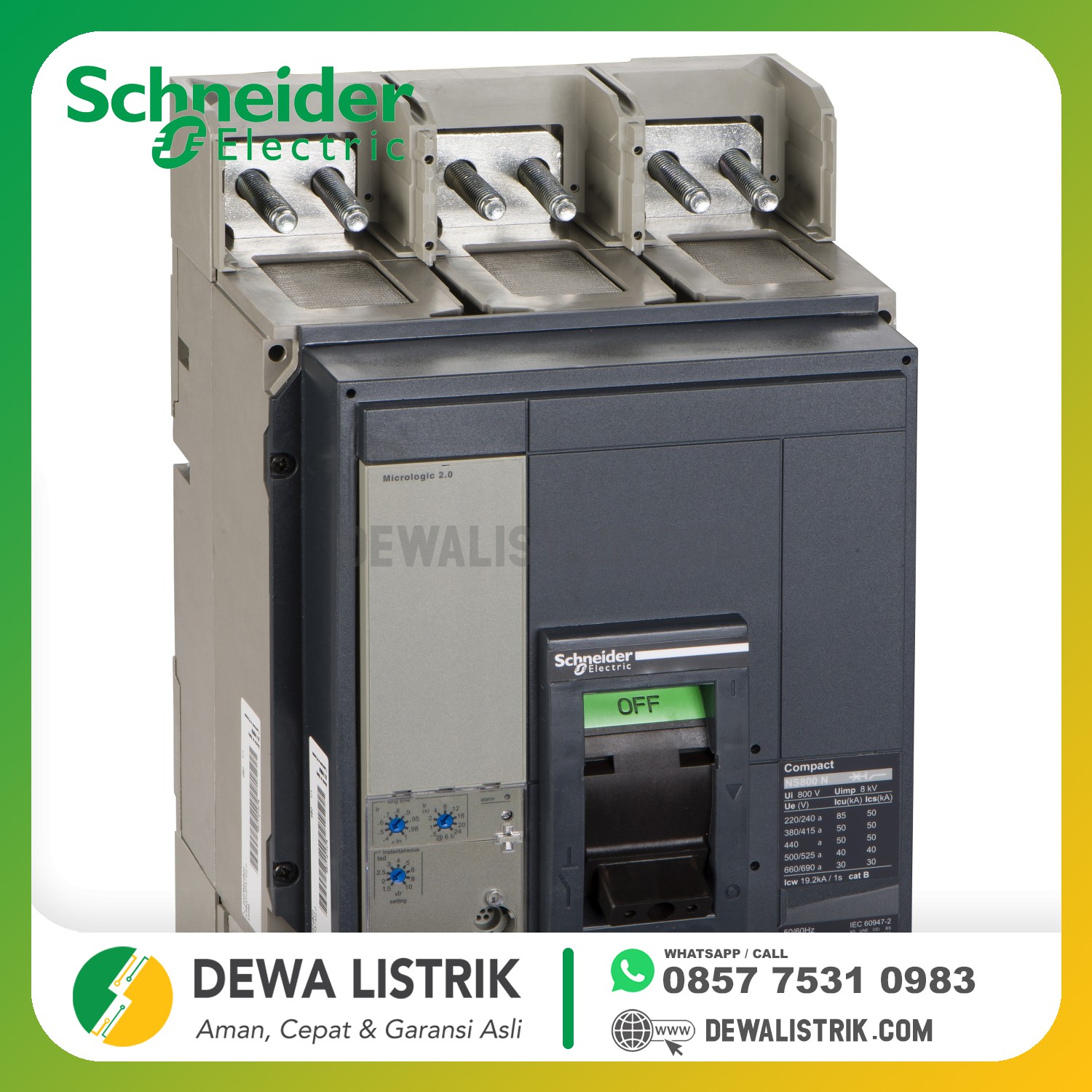

SCHNEIDER - NS800N 50KA MICROLOGIC 2.0 3P

Category: NS
No Referensi: 33466
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range
Compact
range of product
NS630b...1600
product or component type
Circuit breaker
device short name
Compact NS800N
device application
Distribution
poles description
3P
protected poles description
3t
network type
AC
breaking capacity code
N
suitability for isolation
Yes conforming to IEC 60947-2
utilisation category
Category B
trip unit name
Micrologic 2.0
trip unit technology
Electronic
trip unit rating
800 A ( 50 °C )
Complementary
network frequency
50/60 Hz
control type
Rotary handle
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
(In) rated current up to 65 °C
800 A ( 50 °C )
[Ui] rated insulation voltage
800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
circuit breaker CT rating
800 A
breaking capacity
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
Ics 30 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Ics 40 kA 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 50 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics 50 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
auxiliary contact composition
1 NO/NC
mechanical durability
10000 cycles
electrical durability
2000 cycles IEC 60947-2 690 V In AC 50/60 Hz
4000 cycles IEC 60947-2 690 V In/2 AC 50/60 Hz
5000 cycles IEC 60947-2 440 V In AC 50/60 Hz
6000 cycles IEC 60947-2 440 V In/2 AC 50/60 Hz
local signalling
Positive contact indication
[Icw] rated short-time withstand current
19.2 kA
trip unit protection functions
LI
protection type
Instantaneous short-circuit protection
Overload protection (long time)
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.4...1 x In
long time delay adjustment type
Adjustable 9 settings
[tr] long-time delay adjustment range
0.5...24 s 6 x Ir
0.7...16.6 s 7.2 x Ir
12.5...600 s 1.5 x Ir
thermal memory
20 mn
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
1.5...10 x Ir
integrated instantaneous protection
40 kA
height
327 mm
width
210 mm
depth
147 mm
Environment
standards
IEC 60947-2
product certifications
ASEFA
ASTA
power losses
15 W
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
pollution degree
3 conforming to IEC 60947
ambient air temperature for operation
-25...70 °C
ambient air temperature for storage
-50...85 °C
