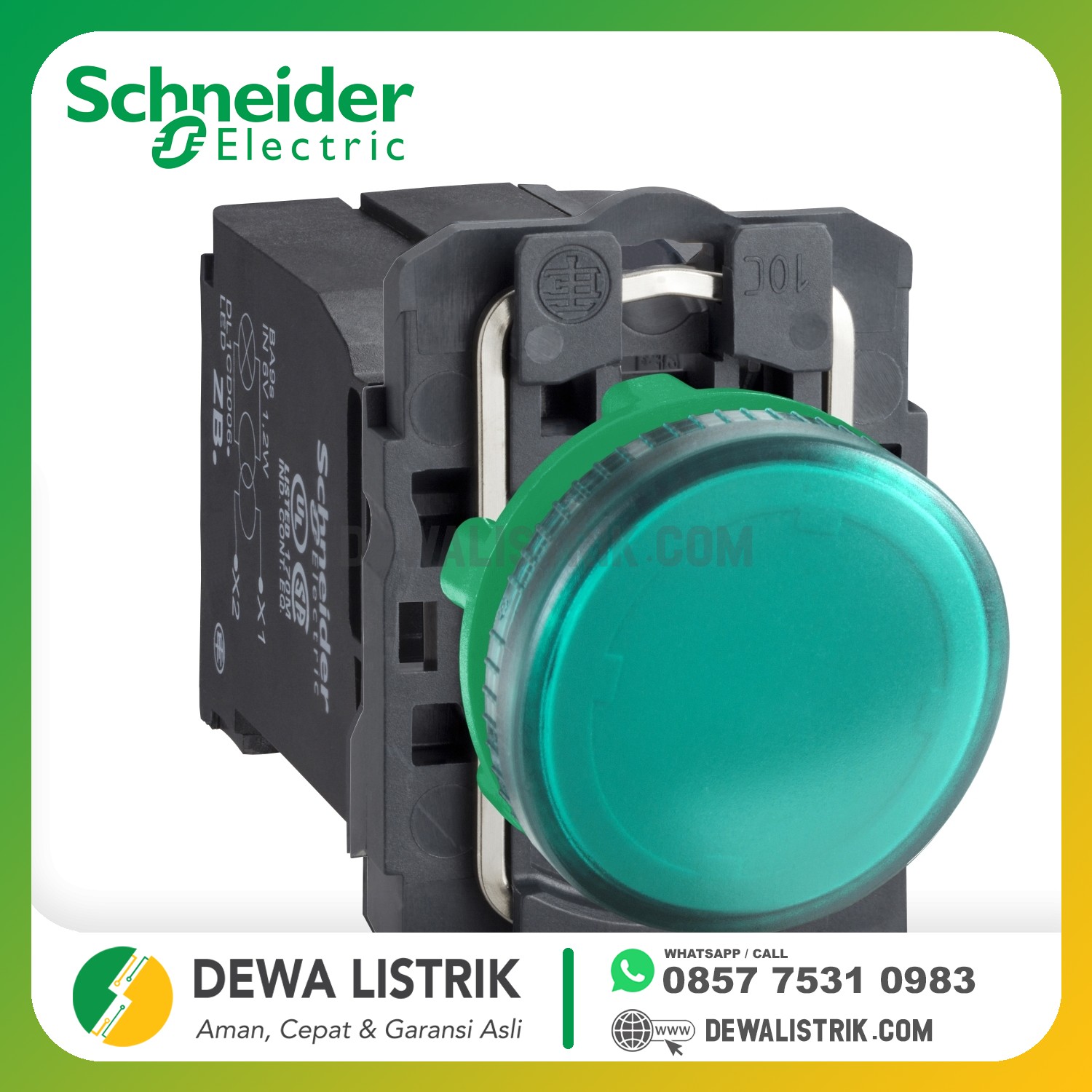

SCHNEIDER - PILOT LAMP 230V TRANSFORMER

Category: PUSH BUTTON
No Referensi: XB5AV43
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Harmony XB5
product or component type
Pilot light
device short name
XB5
bezel material
Dark grey plastic
fixing collar material
Plastic
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Green
operator additional information
With plain lens
light source
Incandescent
bulb base
BA 9s
light block supply
Via integral transformer 1.2 VA 6 V
light source colour
Green
[Us] rated supply voltage
230...240 V AC at 50/60 Hz
[Us] rated supply voltage
230...240 V AC 50/60 Hz
Complementary
height
42 mm
width
30 mm
depth
55 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0.11 kg
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
EN 60947-1 6 kV
signalling type
Steady
device presentation
Complete product
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…55 °C
electrical shock protection class
Class II conforming to IEC 60536
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK05 conforming to IEC 50102
standards
EN/IEC 60947-5-1
JIS C8201-5-1
CSA C22.2 No 14
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-1
product certifications
CSA
UL listed
vibration resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
