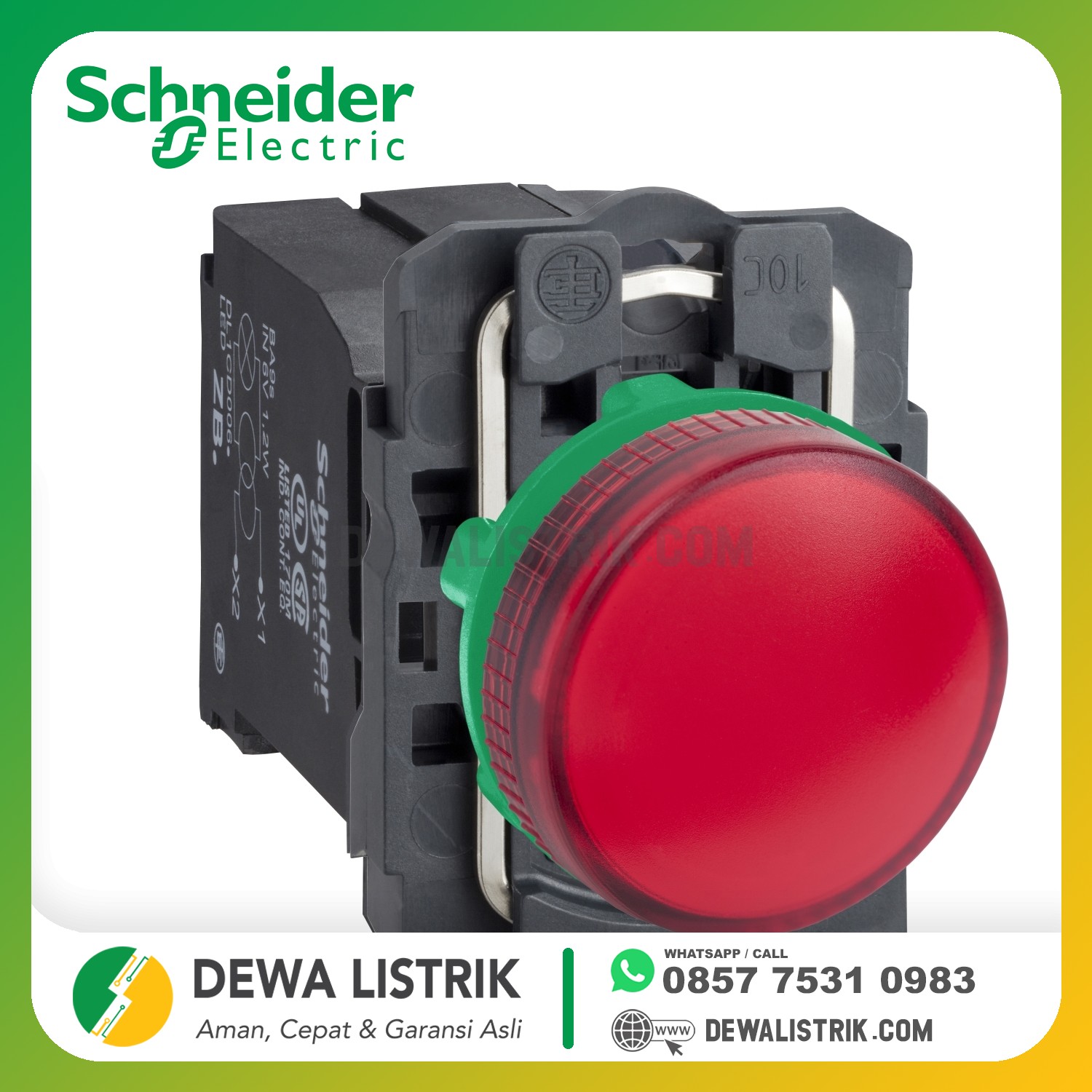

| range of product | Harmony XB5 |
|---|---|
| product or component type | Pilot light |
| device short name | XB5 |
| bezel material | Dark grey plastic |
| fixing collar material | Plastic |
| head type | Standard |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 1 |
| shape of signaling unit head | Round |
| cap/operator or lens colour | Red |
| operator additional information | With plain lens |
| light source | Incandescent |
| bulb base | BA 9s |
| light block supply | Via integral transformer 1.2 VA 6 V |
| light source colour | Red |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| height | 42 mm |
|---|---|
| width | 30 mm |
| depth | 55 mm |
| terminals description ISO n°1 | (X1-X2)PL |
| net weight | 0.11 kg |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 |
| signalling type | Steady |
| device presentation | Complete product |
| protective treatment | TH |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…55 °C |
| electrical shock protection class | Class II conforming to IEC 60536 |
| overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 50102 |
| standards | EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C8201-5-1 UL 508 JIS C8201-1 |
| product certifications | UL listed CSA |
