| range of product | Harmony Easy XA2 |
|---|---|

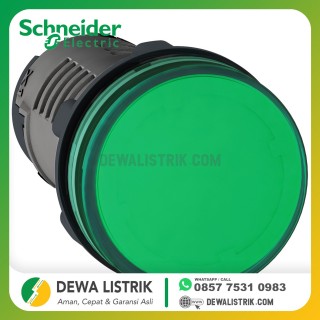

| product or component type | Monolithic pilot light |
| device short name | XA2 |
| mounting diameter | 22 mm |
| shape of signaling unit head | Round |
| cap/operator or lens colour | Green |
| light source | LED |
| bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
| height | 29 mm |
|---|---|
| width | 29 mm |
| depth | 53 mm |
| terminals description ISO n°1 | (X1-X2)PL |
| net weight | 0.02 kg |
| device mounting | Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| marking | CE CCC |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| tightening torque | 0.8…1 N.m conforming to EN 60947-1 |
| shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 |
| signalling type | Steady |
| supply voltage limits | 0.8…1.2 V AC |
| current consumption | <= 20 mA |
| service life | 40000 h at rated voltage and 25 °C |
| compatibility code | XA2E |
| ambient air temperature for storage | -40…70 °C |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 (front face) conforming to IEC 60529 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| standards | IEC 60947-1 IEC 60947-5-1 GB 14048.5 GB 14048.1 |
| product certifications | CE CCC |
| vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
