| range | PowerLogic |
|---|---|

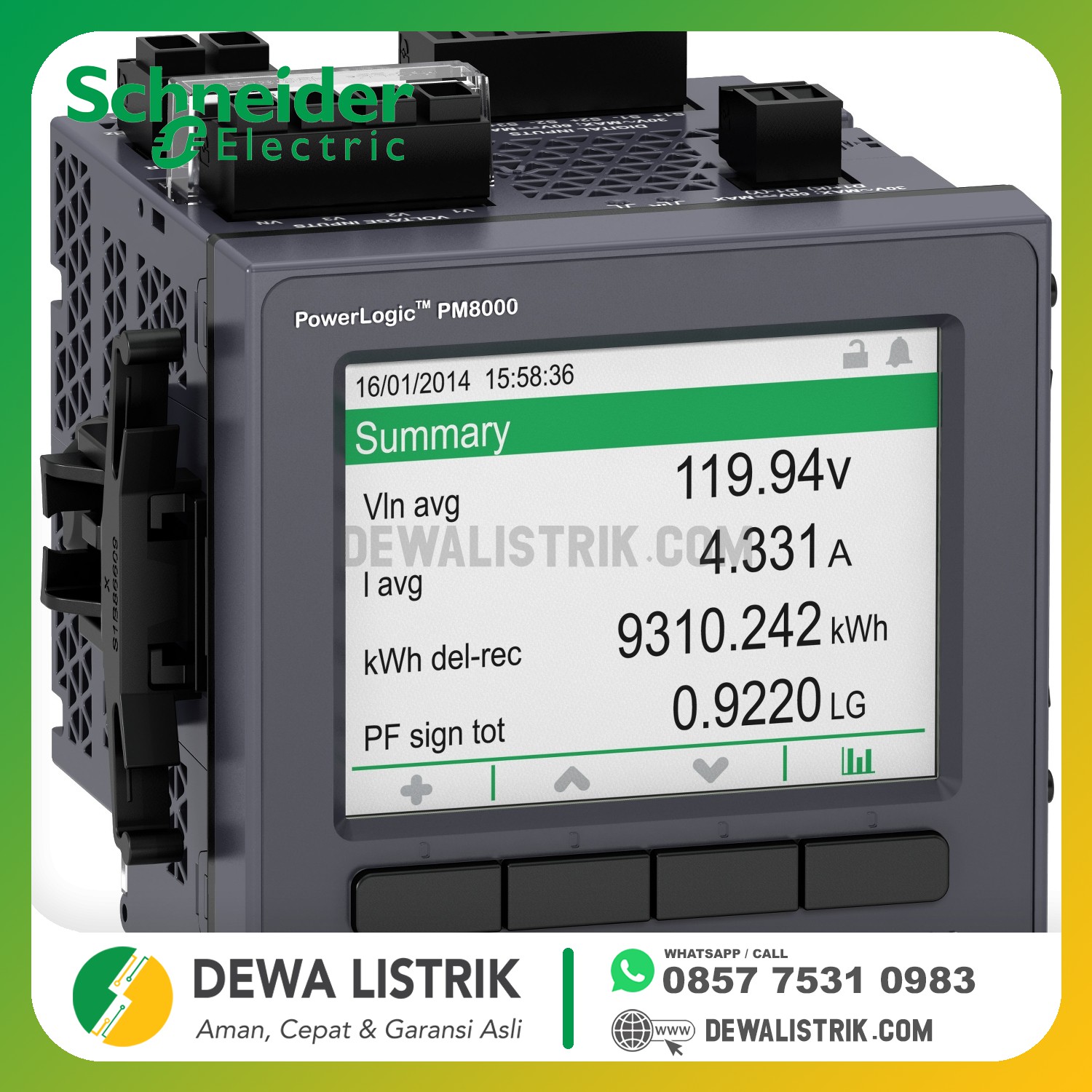

| product name | PowerLogic PM8000 |
| device short name | PM8240 |
| product or component type | Power meter |
| power quality analysis | Waveform capture Harmonic distortion Programmablity (logic and math functions) Voltage sag and swell detection Up to the 63rd harmonic Compliance report EN 50160 Power quality monitoring IEC 62586 Power quality measurement IEC 61000-4-30 : class S |
|---|---|
| device application | WAGES metering Power monitoring |
| type of measurement | Power factor (total) Apparent power (total) Active and reactive power (total) Active and reactive power (per phase, rms) Apparent power (per phase, rms) Power factor (per phase, rms) Voltage Current Frequency |
| supply voltage | 90...415 V AC +/- 10 % (45...65 Hz) 110...415 V DC +/- 10 % |
| network frequency | 50 Hz 60 Hz |
| [In] rated current | 1 A 10 A 5 A |
| poles description | 1P + N 3P 3P + N |
| power consumption in VA | 18 VA at 415 V AC |
| display type | Colour TFT LCD |
| display resolution | 320 x 240 pixels QVGA |
| sampling rate | 256 samples/cycle |
| measurement current | 50...10000 mA |
| analogue input type | Current (impedance 0.3 mOhm) Voltage (impedance 5 MOhm) |
| measurement voltage | 57...400 V AC 42...69 Hz between phase and neutral 100...690 V AC 42...69 Hz between phases |
| frequency measurement range | 42...69 Hz |
| number of inputs | 3 digital 30 V AC 3 digital 60 V DC |
| measurement accuracy | +/- 0.2 % active energy +/- 0.1 % voltage +/- 0.1 % current |
| accuracy class | Class 0.2 (active energy according to ANSI C12.20) Class 0.2S (active energy according to IEC 62053-22) Class 0.2 (active power according to IEC 61557-12) Class 0.5S (reactive energy according to IEC 62053-24) Class 0.5 (power factor according to IEC 61557-12) Class 0.2 (voltage according to IEC 61557-12) Class 0.2 (current according to IEC 61557-12) |
| number of outputs | 1 pulse |
| information displayed | Voltage Current Frequency Power Energy consumption Harmonic distortion |
| communication port protocol | DNP3 IEC 61850 Modbus RTU 2-wire, : 115 kbauds, ION 2-wire, : 115 kbauds, Modbus TCP/IP Ethernet Modbus TCP/IP daisy chain : 10/100 Mbit/s, RSTP 801.1d 2004 |
| communication port support | Ethernet RS485 (screw terminal block) |
| communication network type | IPv6 (internet protocol) |
| data recording | Data logs Event logs Min/max of instantaneous values Sequence of event recording Time stamping Trending/forecasting GPS synchronisation Alarm logs Harmonics logs Sag and swell logs Waveform logs |
| memory capacity | 512 MB |
| web services | Alarm notification by e-mail File upload/download via FTP HTTP server Web server Customizable home page Viewing of captured waveform |
| communication service | DHCP NTP time synchronization SMTP e-mail notification RSTP support |
| cybersecurity | Password protection Port hardening Robust security logs Enable/disable communication ports Syslog protocol support |
| mounting mode | Flush-mounted |
| mounting support | Framework |
| installation category | III |
| Safety Construction | IEC 61010-1 : CAT III, 400...690 V ed. 3 EN 61010-1 : CAT III, 400...690 V ed. 3 UL 61010-1 : CAT III, 347...600 V ed. 3 CSA C22.2 No 61010-1 : CAT III, 347...600 V ed. 3 |
| standards | IEC 61557-12 IEC 62053-22 IEC 62052-11 IEC 62053-24 |
| product certifications | N998 China RoHS CULus CE |
| width | 96 mm |
| depth | 77.5 mm |
| height | 96 mm |
| product weight | 581 g |
