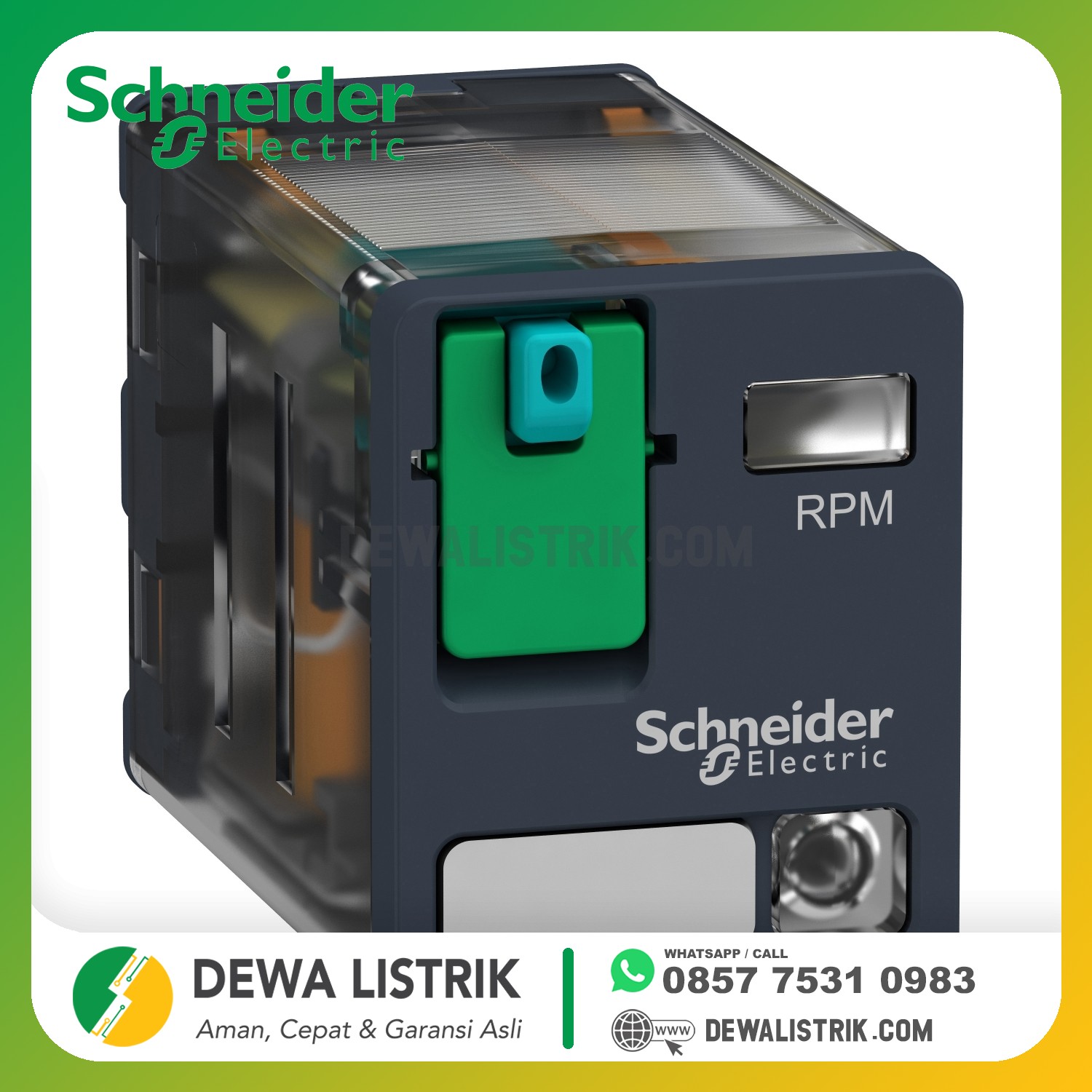

| range of product | Harmony Relay |
|---|---|
| series name | Power |
| product or component type | Plug-in relay |
| device short name | RPM |
| contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| status LED | With |
| control type | Lockable test button |
| utilisation coefficient | 20 % |
| shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| contacts material | AgNi |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
| maximum switching voltage | 250 V conforming to IEC |
| Resistive load current | 15 A at 250 V AC 15 A at 28 V DC |
| maximum switching capacity | 3750 VA 420 W |
