| range of product | Harmony XB5 |
|---|---|

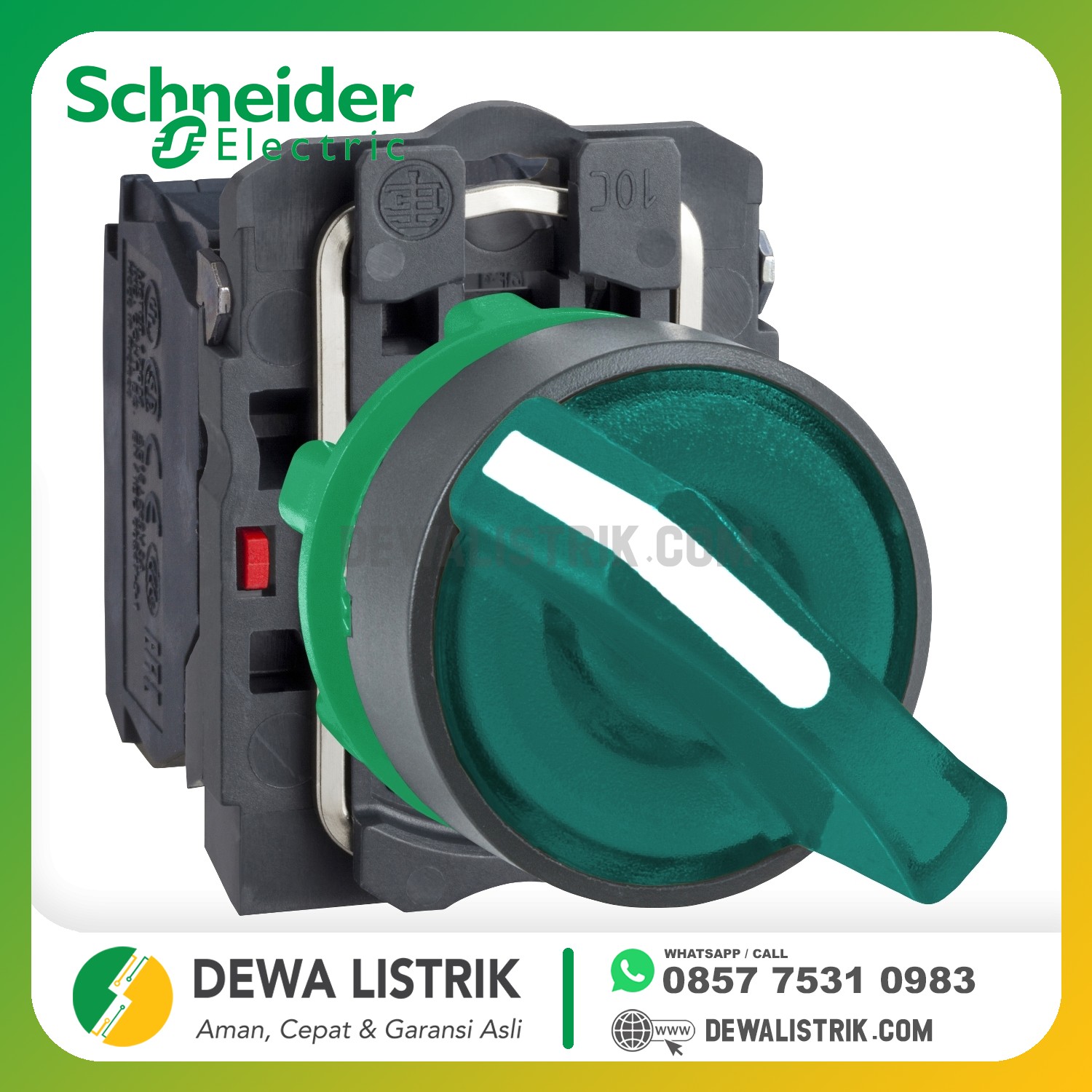

| product or component type | Illuminated selector switch |
| device short name | XB5 |
| bezel material | Dark grey plastic |
| head type | Standard |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 1 |
| shape of signaling unit head | Round |
| type of operator | stay put |
| operator profile | Green standard handle |
| operator position information | 2 positions 90° |
| contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| height | 42 mm |
|---|---|
| width | 30 mm |
| depth | 70 mm |
| terminals description ISO n°1 | (13-14)NO (11-12)NC |
| net weight | 0.516 kg |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| positive opening | With conforming to EN/IEC 60947-5-1 appendix K |
| operating torque | 0.14 N.m NO changing electrical state |
| mechanical durability | 1000000 cycles |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| contacts material | Silver alloy (Ag/Ni) |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| signalling type | Steady |
| light source | Protected LED |
| supply voltage limits | 195…264 V AC |
| current consumption | 14 mA |
| service life | 100000 h at rated voltage and 25 °C |
| surge withstand | 1 kV conforming to IEC 61000-4-5 |
| device presentation | Complete product |
| protective treatment | TH |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C8201-1 |
| product certifications | RINA CSA DNV BV LROS (Lloyds register of shipping) GL UL |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| electromagnetic emission | Class B conforming to IEC 55011 |
