| range of product | Harmony Relay |
|---|---|

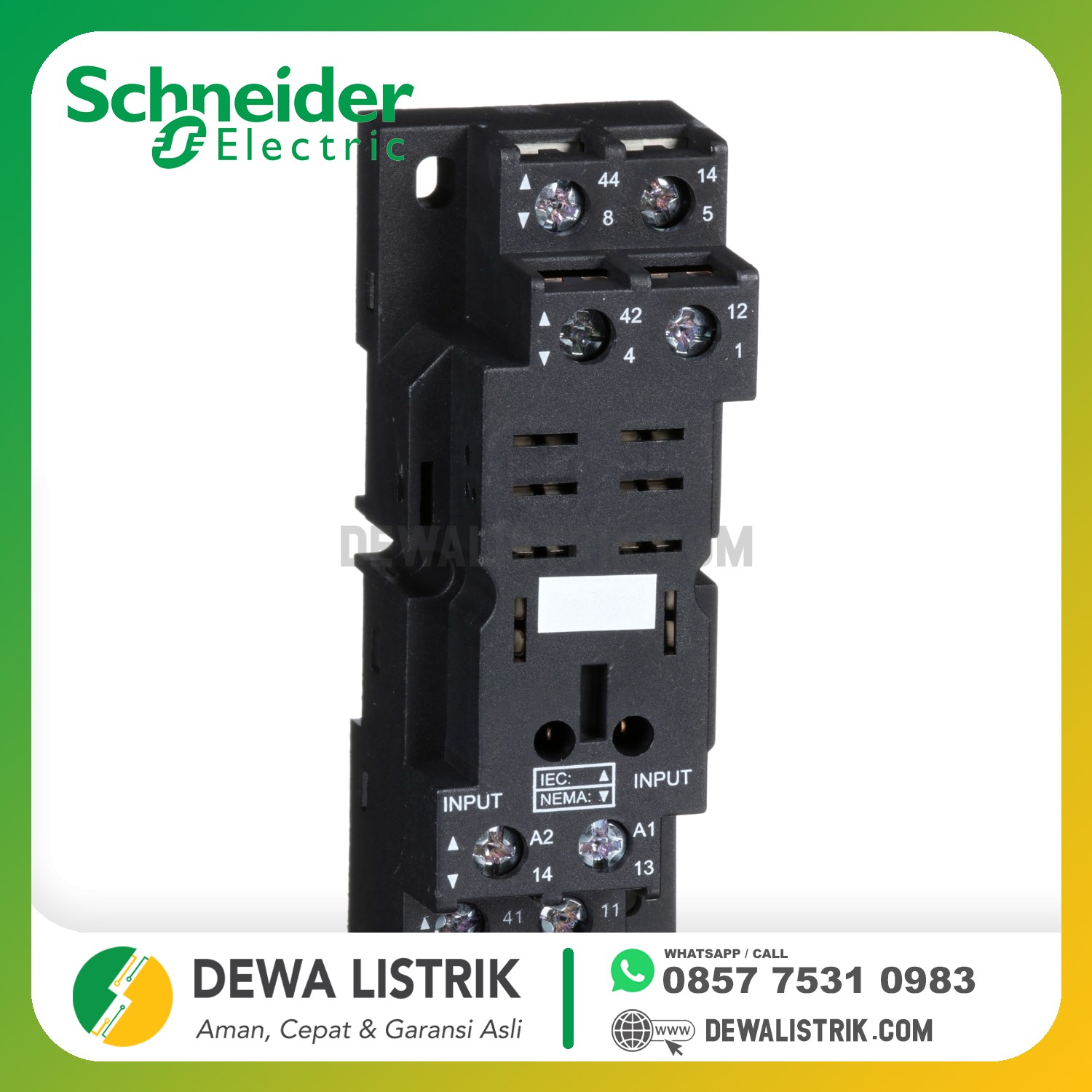

| product or component type | Socket |
| contact terminal arrangement | Mixed |
| product compatibility | Plug-in relay RPM with 2 C/O contact |
| shape of pin | Flat |
| device short name | RPZ |
| sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 16 A |
|---|---|
| [Ue] rated operational voltage | < 250 V |
| tightening torque | < 1 N.m for M3.5 screw(s) |
| fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| marking | CE |
| width | 30 mm |
| net weight | 0.054 kg |
| connections - terminals | - screw clamp terminals, flexible cable with cable end 1 x 0.5...2 x 1.5 mm² / AWG 20...AWG 14 - screw clamp terminals, solid cable without cable end 1 x 0.5...2 x 1.5 mm² / AWG 20...AWG 12 |
|---|---|
| standards | IEC 61984 |
| product certifications | UL CSA |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| dielectric strength | 2500 V |
