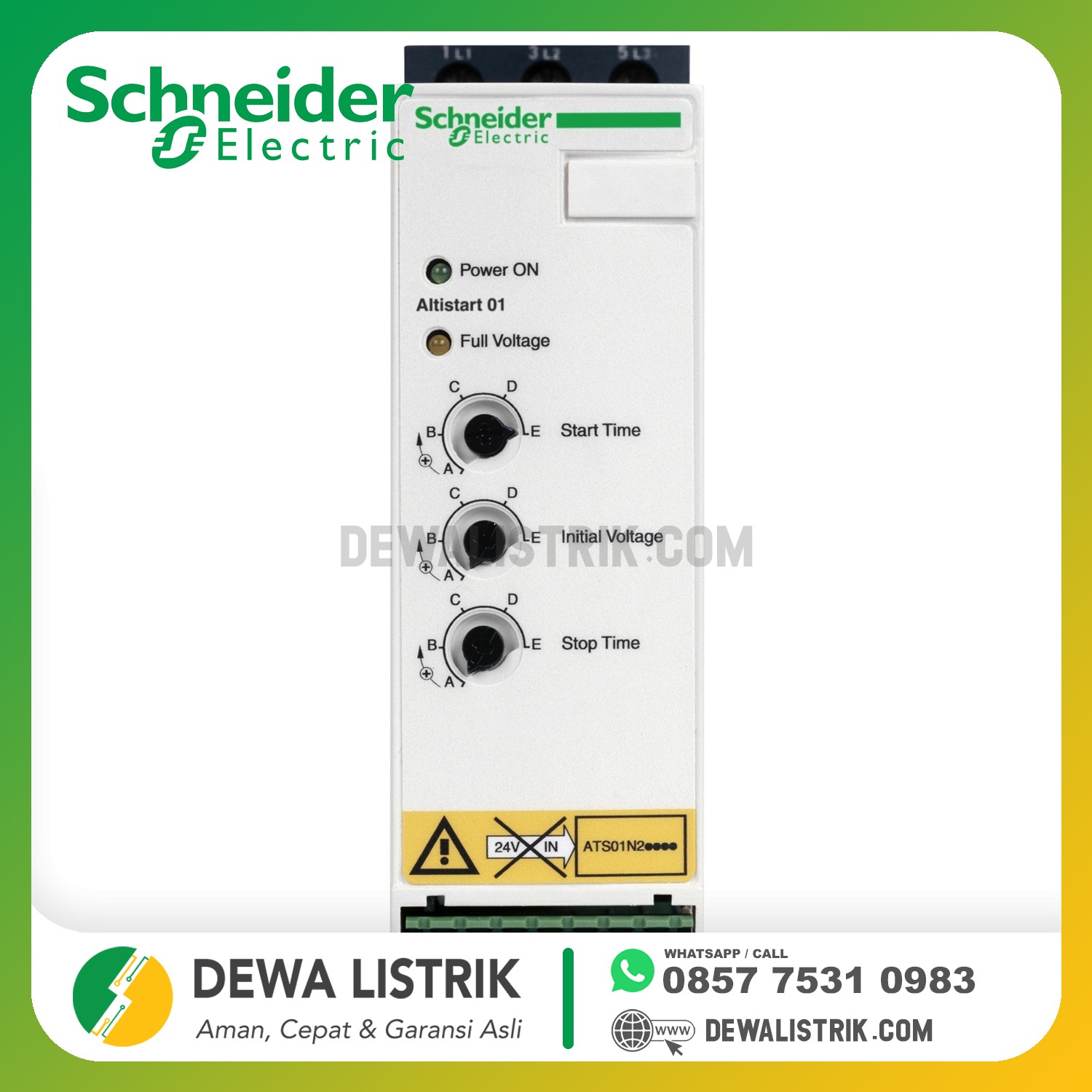

SCHNEIDER - SOFT-START STOP 22A 380 415V

Category: SOFT STARTER
No Referensi: ATS01N222QN
HUBUNGI KAMI

Call / Whatsapp:


Whatsapp Only:


Tokopedia:

Main
range of product
Altistart 01
product or component type
Soft starter
product destination
Asynchronous motors
product specific application
Simple machine
device short name
ATS01
network number of phases
3 phases
[Us] rated supply voltage
380...415 V - 10...10 %
motor power kW
11 kW, 3 phases at 380...415 V
7.5 kW, 3 phases at 380...415 V
IcL starter rating
22 A
utilisation category
AC-53B conforming to EN/IEC 60947-4-2
current consumption
110 A at nominal load
type of start
Start with voltage ramp
power dissipation in W
124.5 W in transient state
4.5 W at full load and at end of starting
Complementary
assembly style
With heat sink
function available
Integrated bypass
supply voltage limits
342…456 V
supply frequency
50...60 Hz - 5...5 %
network frequency
47.5...63 Hz
output voltage
<= power supply voltage
[Uc] control circuit voltage
Built into the starter
starting time
1 s / 100
5 s / 20
10 s / 10
Adjustable from 1 to 10 s
deceleration time symb
Adjustable from 1 to 10 s
starting torque
30...80 % of starting torque of motor connected directly on the line supply
discrete input type
Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
discrete input voltage
24...40 V
discrete input logic
Positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA
discrete output current
2 A DC-13
3 A AC-15
discrete output type
Open collector logic LO1 end of starting signal
Relay outputs R1A, R1C NO
discrete output voltage
24 V (voltage limits: 6...30 V) open collector logic
minimum switching current
10 mA at 6 V DC for relay outputs
maximum switching current
Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load
Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load
display type
1 LED (green) for starter powered up
1 LED (yellow) for nominal voltage reached
tightening torque
0.5 N.m
1.9…2.5 N.m
electrical connection
4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
Screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit
Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit
Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
marking
CE
operating position
Vertical +/- 10 degree
height
154 mm
width
45 mm
depth
131 mm
net weight
0.56 kg
compatibility code
ATS01N2
Motor power range AC-3
7…11 kW at 380…440 V 3 phases
motor starter type
Soft starter
