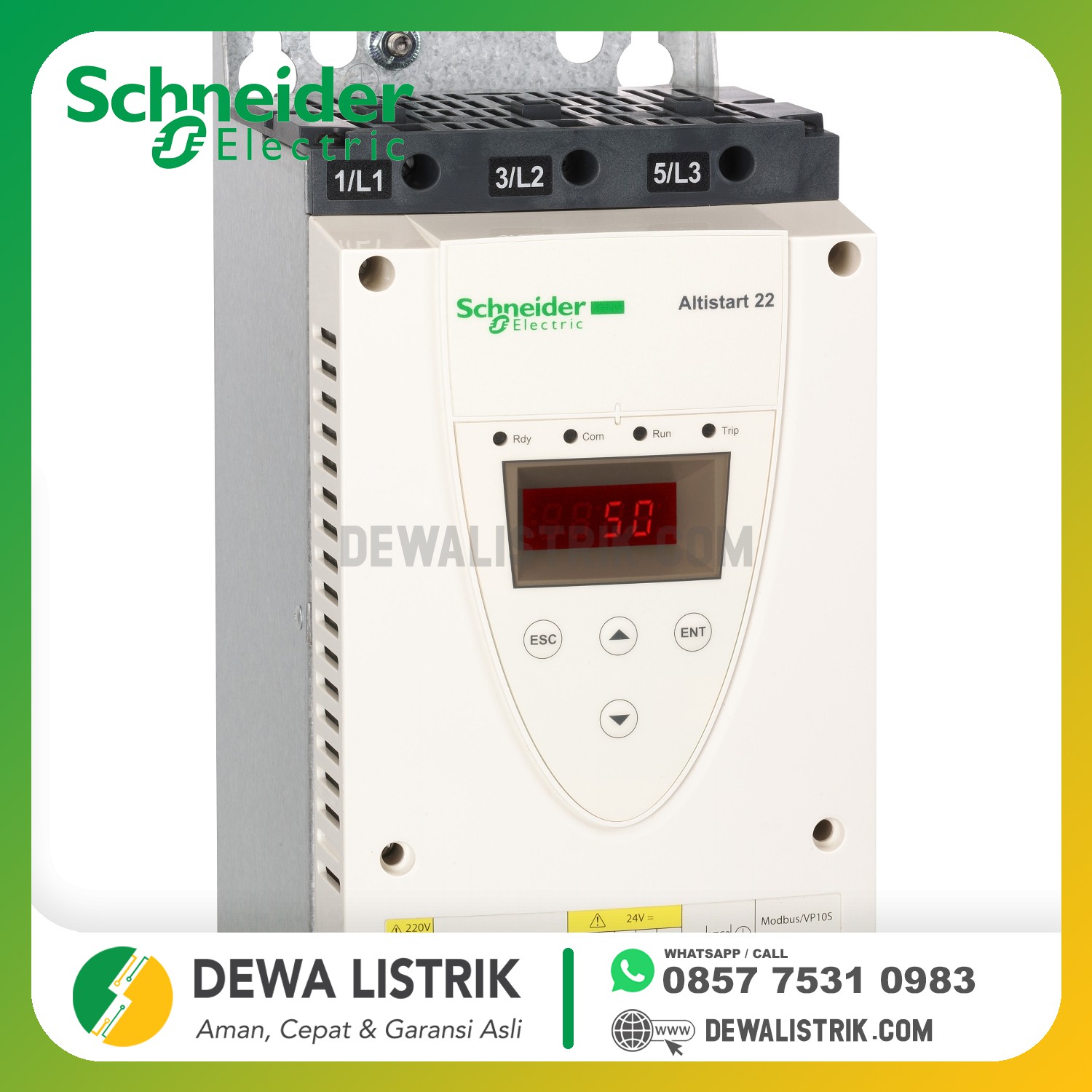

range of product | Altistart 22 |
---|---|
product or component type | Soft starter |
product destination | Asynchronous motors |
product specific application | Pumps and fans |
component name | ATS22 |
network number of phases | 3 phases |
[Us] rated supply voltage | 230...440 V - 15...10 % |
motor power kW | 11 kW 230 V 22 kW 400 V 22 kW 440 V |
factory setting current | 42 A |
power dissipation in W | 48 W for standard applications |
utilisation category | AC-53A |
type of start | Start with torque control (current limited to 3.5 In) |
IcL starter rating | 47 A connection in the motor supply line for standard applications |
IP degree of protection | IP20 |
assembly style | With heat sink |
---|---|
function available | Internal bypass |
supply voltage limits | 195...484 V |
supply frequency | 50...60 Hz - 10...10 % |
network frequency | 45...66 Hz |
device connection | In the motor supply line To the motor delta terminals |
[Uc] control circuit voltage | 230 V -15...10 % 50/60 Hz |
control circuit consumption | 20 W |
discrete output number | 2 |
discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
minimum switching current | 100 mA 12 V DC relay outputs |
maximum switching current | 5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs |
discrete input number | 3 |
discrete input type | Logic LI1, LI2, LI3 5 mA 4.3 kOhm |
discrete input voltage | 24 V <= 30 V |
discrete input logic | Positive logic LI1, LI2, LI3 < 5 V and <= 2 mA > 11 V >= 5 mA |
output current | 0.4...1 Icl adjustable |
PTC probe input | 750 Ohm |
communication port protocol | Modbus |
connector type | 1 RJ45 |
communication data link | Serial |
physical interface | RS485 multidrop |
transmission rate | 4800, 9600 or 19200 bps |
installed device | 31 |
protection type | Phase failure line Thermal protection starter Thermal protection motor |
marking | CE |
type of cooling | Forced convection |
operating position | Vertical +/- 10 degree |
height | 265 mm |
width | 130 mm |
depth | 169 mm |
product weight | 7 kg |
Motor power range AC-3 | 7...11 kW at 200...240 V 3 phases 15...25 kW at 380...440 V 3 phases |
motor starter type | Soft starter |
electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2 Damped oscillating waves level 3 IEC 61000-4-12 Electrostatic discharge level 3 IEC 61000-4-2 Immunity to electrical transients level 4 IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 Voltage/current impulse level 3 IEC 61000-4-5 |
---|---|
standards | EN/IEC 60947-4-2 |
product certifications | CCC CSA C-Tick GOST UL |
vibration resistance | 1.5 mm 2...13 Hz EN/IEC 60068-2-6 1 gn 13...200 Hz EN/IEC 60068-2-6 |
shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
noise level | 45 dB |
pollution degree | Level 2 IEC 60664-1 |
relative humidity | 0...95 % without condensation or dripping water EN/IEC 60068-2-3 |
ambient air temperature for operation | -10...40 °C without derating > 40...< 60 °C with current derating 2.2 % per °C |
ambient air temperature for storage | -25...70 °C |
operating altitude | <= 1000 m without derating > 1000...< 2000 m with current derating of 2.2 % per additional 100 m |
