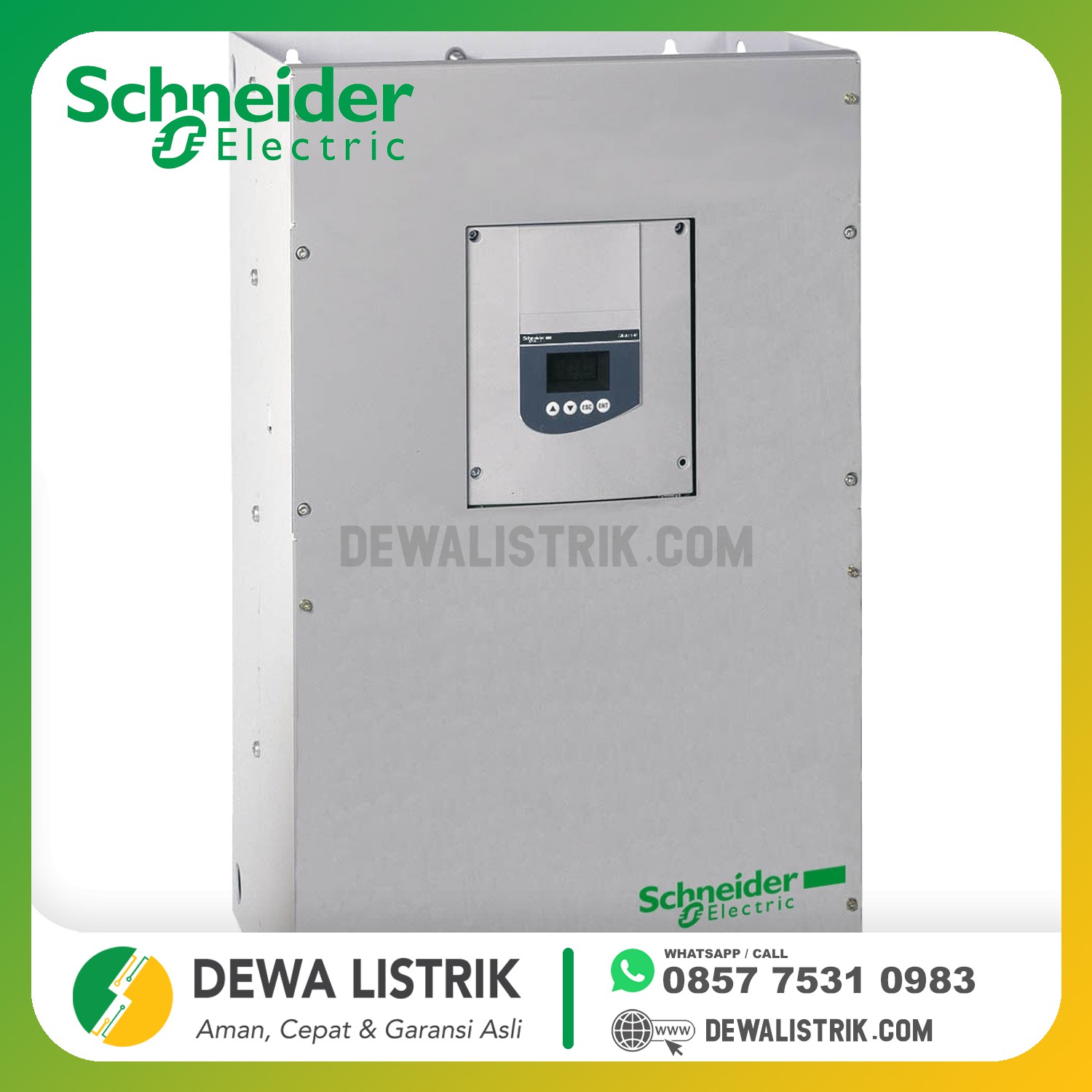

| range of product | Altistart 48 |
|---|---|
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| product specific application | Heavy duty industry and pumps |
| device short name | ATS48 |
| power supply voltage | 230...415 V (- 15...10 %) |
| motor power kW | 90 kW at 230 V (connection in the motor supply line) for severe applications 110 kW at 230 V (connection in the motor supply line) for standard applications 160 kW at 230 V (connection to the motor delta terminals) for severe applications 160 kW at 400 V (connection in the motor supply line) for severe applications 220 kW at 230 V (connection to the motor delta terminals) for standard applications 220 kW at 400 V (connection in the motor supply line) for standard applications 250 kW at 400 V (connection to the motor delta terminals) for severe applications 315 kW at 400 V (connection to the motor delta terminals) for standard applications |
| power dissipation in W | For severe applications 1017 W For standard applications 1339 W |
| utilisation category | AC-53A |
| type of start | Start with torque control (current limited to 5 In) |
| Icl nominal current | 410 A (connection in the motor supply line) for severe applications 710 A (connection to the motor delta terminals) for severe applications 710 A (connection to the motor delta terminals) for standard applications 410 A (connection in the motor supply line) for standard applications |
| IP degree of protection | IP00 |
| assembly style | With heat sink |
|---|---|
| function available | External bypass (optional) |
| power supply voltage limits | 195...456 V |
| power supply frequency | 50...60 Hz (- 5...5 %) |
| power supply frequency limits | 47.5...63 Hz |
| device connection | In the motor supply line To the motor delta terminals |
| factory setting current | 388 A |
| [Uc] control circuit voltage | 220 - 15 % to 415 + 10 %, 50/60 Hz |
| control circuit consumption | 80 W |
| discrete output number | 2 |
| discrete output type | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO |
| output absolute accuracy precision | +/- 5 % |
| minimum switching current | Relay outputs 10 mA at 6 V DC |
| maximum switching current | Logic output 0.2 A at 30 V DC Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms |
| discrete input number | 5 |
| discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| discrete input voltage | 24 V (<= 30 V) |
| discrete input logic | Positive logic (Stop, Run, LI3, LI4) state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA |
| starting current | Adjustable 0.4...1.3 Icl |
| analogue output type | (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm |
| communication port protocol | Modbus |
| connector type | 1 RJ45 |
| communication data link | Serial |
| physical interface | RS485 multidrop |
| transmission rate | 4800, 9600 or 19200 bps |
| max nodes number | 31 |
| protection type | Phase failure (line) Thermal protection (motor) Thermal protection (starter) |
| marking | CE |
| type of cooling | Forced convection |
| operating position | Vertical +/- 10 degree |
| height | 670 mm |
| width | 400 mm |
| depth | 300 mm |
| product weight | 51.4 kg |
| Motor power range AC-3 | 55...100 kW at 200...240 V 3 phases 110...220 kW at 380...440 V 3 phases 110...220 kW at 200...240 V 3 phases 250...500 kW at 380...440 V 3 phases |
| motor starter type | Soft starter |
| electromagnetic compatibility | Conducted and radiated emissions conforming to IEC 60947-4-2 level A Damped oscillating waves conforming to IEC 61000-4-12 level 3 Electrostatic discharge conforming to IEC 61000-4-2 level 3 Immunity to electrical transients conforming to IEC 61000-4-4 level 4 Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3 Voltage/current impulse conforming to IEC 61000-4-5 level 3 |
|---|---|
| standards | EN/IEC 60947-4-2 |
| product certifications | CCC CSA C-Tick DNV GOST NOM 117 SEPRO TCF UL |
| vibration resistance | 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6 |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| noise level | 55 dB |
| pollution degree | Level 3 conforming to IEC 60664-1 |
| relative humidity | 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| ambient air temperature for operation | 40...60 °C with current derating of 2 % per °C -10...40 °C without derating |
| ambient air temperature for storage | -25...70 °C |
| operating altitude | <= 1000 m without derating > 1000...2000 m with current derating of 2.2 % per additional 100 m |
