| range of product | Zelio Logic |
|---|---|
| product or component type | Modular discovery packs |
| discrete input number | 6 |
| number of outputs | 4 relay |

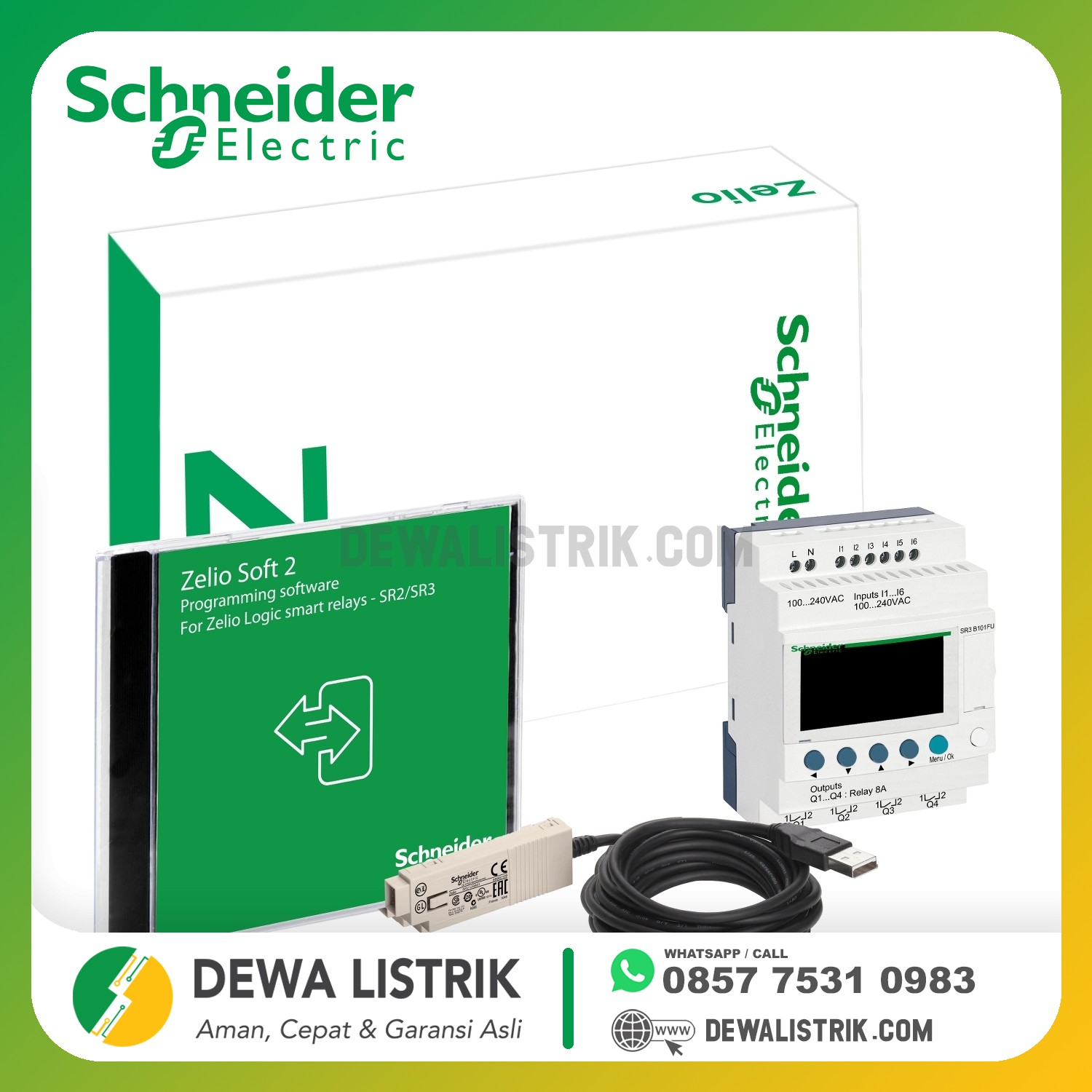

| kit composition | SR3B101FU Cable PC SR2USB01 for connection to PC Zelio Soft 2 programming software CD-ROM |
|---|---|
| input/output number | 10 |
| local display | With |
| number or control scheme lines | 120 with ladder programming 0…200 with FBD programming |
| cycle time | 6…90 ms |
| backup time | 10 years at 25 °C |
| clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V |
| supply voltage limits | 85…264 V |
| supply frequency | 50/60 Hz |
| maximum supply current | 30 mA at 240 V (without extension) 40 mA at 240 V (with extensions) 80 mA at 100 V (with extensions) 80 mA at 100 V (without extension) |
| power consumption in VA | 12 VA with extensions 7 VA without extension |
| isolation voltage | 1780 V |
| protection type | Against inversion of terminals (control instructions not executed) |
| discrete input voltage | 100...240 V AC |
| discrete input current | 0.6 mA |
| discrete input frequency | 47...53 Hz 57...63 Hz |
| voltage state 1 guaranteed | >= 79 V for discrete input |
| voltage state 0 guaranteed | <= 40 V for discrete input |
| current state 1 guaranteed | >= 0.17 mA (discrete input) |
| current state 0 guaranteed | <= 0.5 mA (discrete input) |
| input impedance | 350 kOhm for discrete input |
| output voltage limits | 5...30 V DC (relay output) 24...250 V AC |
| contacts type and composition | NO for relay output |
| output thermal current | 8 A for all 4 outputs for relay output |
| electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| switching capacity in mA | >= 10 mA at 12 V (relay output) |
| operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| clock | With |
| response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| overvoltage category | III conforming to EN/IEC 60664-1 |
| net weight | 0.7 kg |
| immunity to microbreaks | 10 ms |
|---|---|
| product certifications | GOST C-Tick GL CSA UL |
| standards | EN/IEC 61000-4-2 level 3 EN/IEC 61000-4-4 level 3 EN/IEC 61000-4-12 EN/IEC 61000-4-5 EN/IEC 61000-4-11 EN/IEC 61000-4-3 EN/IEC 61000-4-6 level 3 EN/IEC 60068-2-6 Fc EN/IEC 60068-2-27 Ea |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| environmental characteristic | EMC directive conforming to EN/IEC 61000-6-2 EMC directive conforming to EN/IEC 61000-6-3 EMC directive conforming to EN/IEC 61000-6-4 EMC directive conforming to EN/IEC 61131-2 zone B Low voltage directive conforming to EN/IEC 61131-2 |
| disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| pollution degree | 2 conforming to EN/IEC 61131-2 |
| ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| ambient air temperature for storage | -40…70 °C |
| operating altitude | 2000 m |
| maximum altitude transport | 3048 m |
| relative humidity | 95 % without condensation or dripping water |
