| range | TeSys |
|---|---|

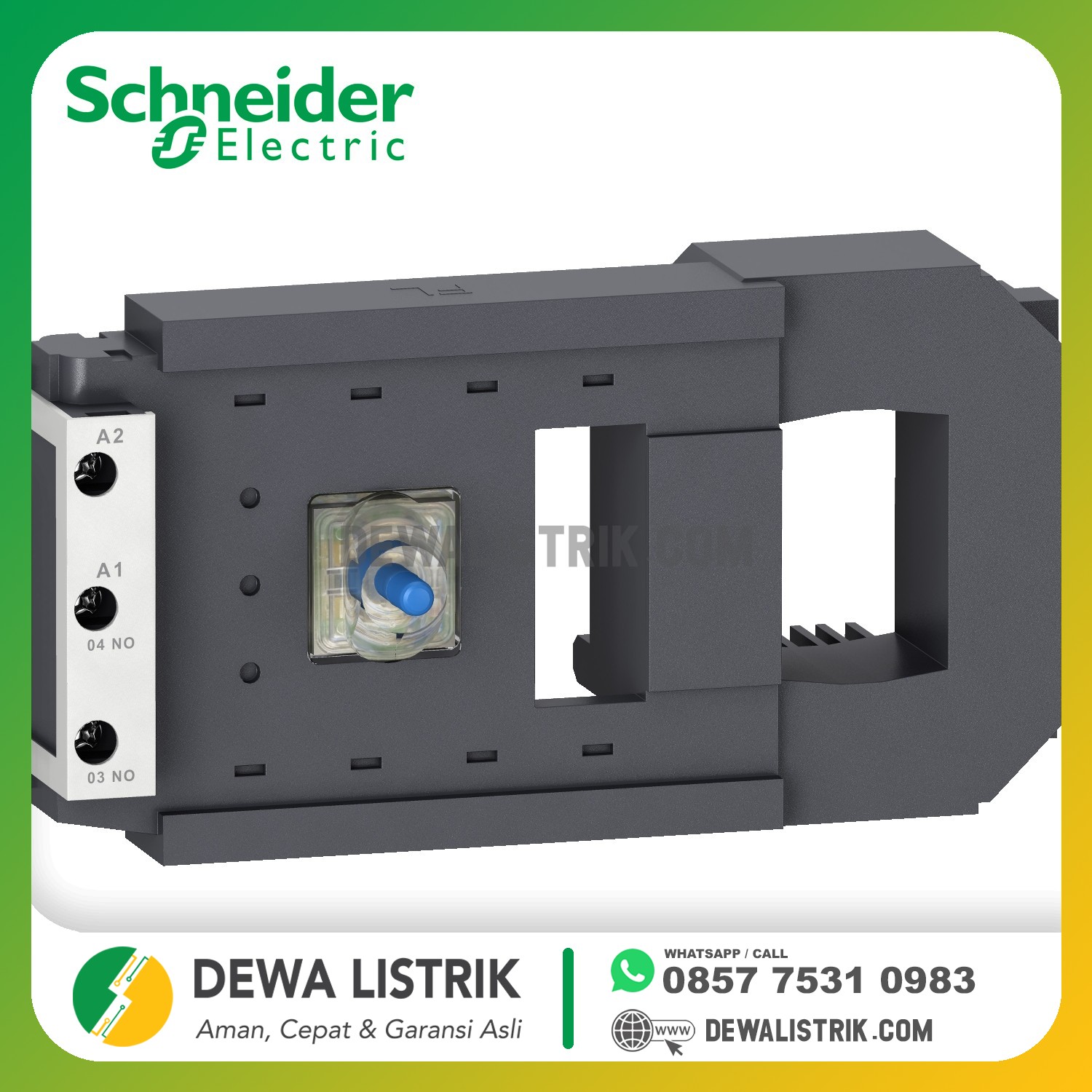

| product or component type | Contactor coil |
| device short name | LX1FL |
| range compatibility | TeSys F LC1F contactor |
| product compatibility | LC1F630 LC1F1250 |
| control circuit type | AC at 40...400 Hz |
| [Uc] control circuit voltage | 220...240 V AC 40...400 Hz |
| average resistance | 25.5 Ohm inrush at 20 °C 730 Ohm holding at 20 °C |
| inductance of closed circuit | 3.35 H |
| operating time | 100...200 ms opening 40...80 ms closing |
| mechanical durability | 5 Mcycles |
| maximum operating rate | 1200 cyc/h 55 °C |
| coil technology | Without built-in suppressor module |
|---|---|
| control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C) |
| inrush power in VA | 1650 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| hold-in power consumption in VA | 22 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 20 W at 40...400 Hz |
| ambient air temperature for operation | -5…55 °C |
|---|---|
| net weight | 1.5 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.41 kg |
| Package 1 Height | 10 cm |
| Package 1 width | 11.5 cm |
| Package 1 Length | 23 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 9.027 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Weight | 83.036 kg |
| Package 3 Height | 77 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 60 cm |
