| range of product | Zelio Time |
|---|---|

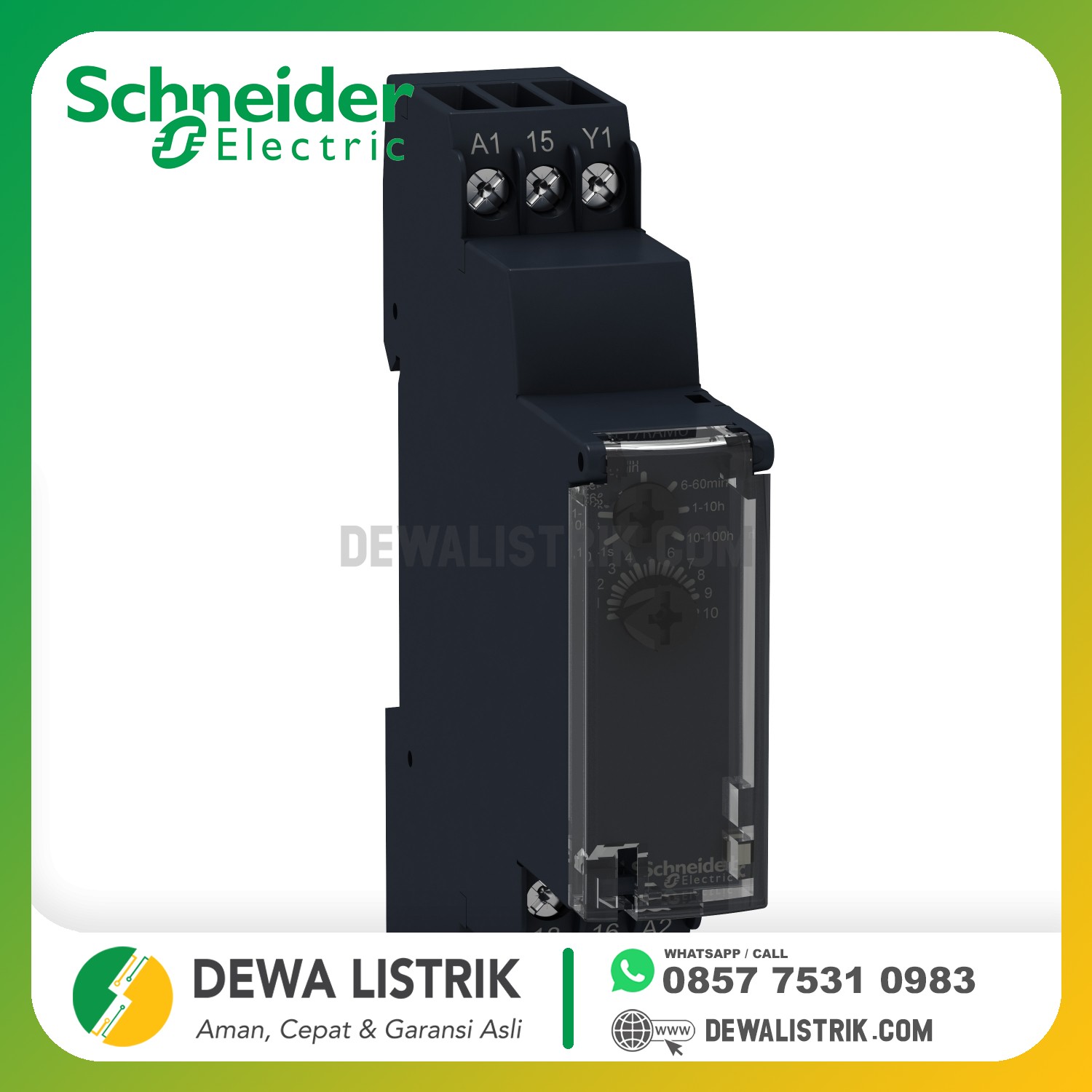

| product or component type | Modular timing relay |
| discrete output type | Relay |
| width | 17.5 mm |
| device short name | RE17R |
| time delay type | At A |
| time delay range | 1...10 min 10...100 h 0.1...1 s 6...60 s 6...60 min 1...10 s 1...10 h |
| nominal output current | 8 A |
| contacts type and composition | 1 C/O |
|---|---|
| contacts material | Cadmium free |
| height | 90 mm |
| depth | 72 mm |
| control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz 24 V DC |
| voltage range | 0.85...1.1 Us |
| supply frequency | 50...60 Hz +/- 5 % |
| release of input voltage | 10 V |
