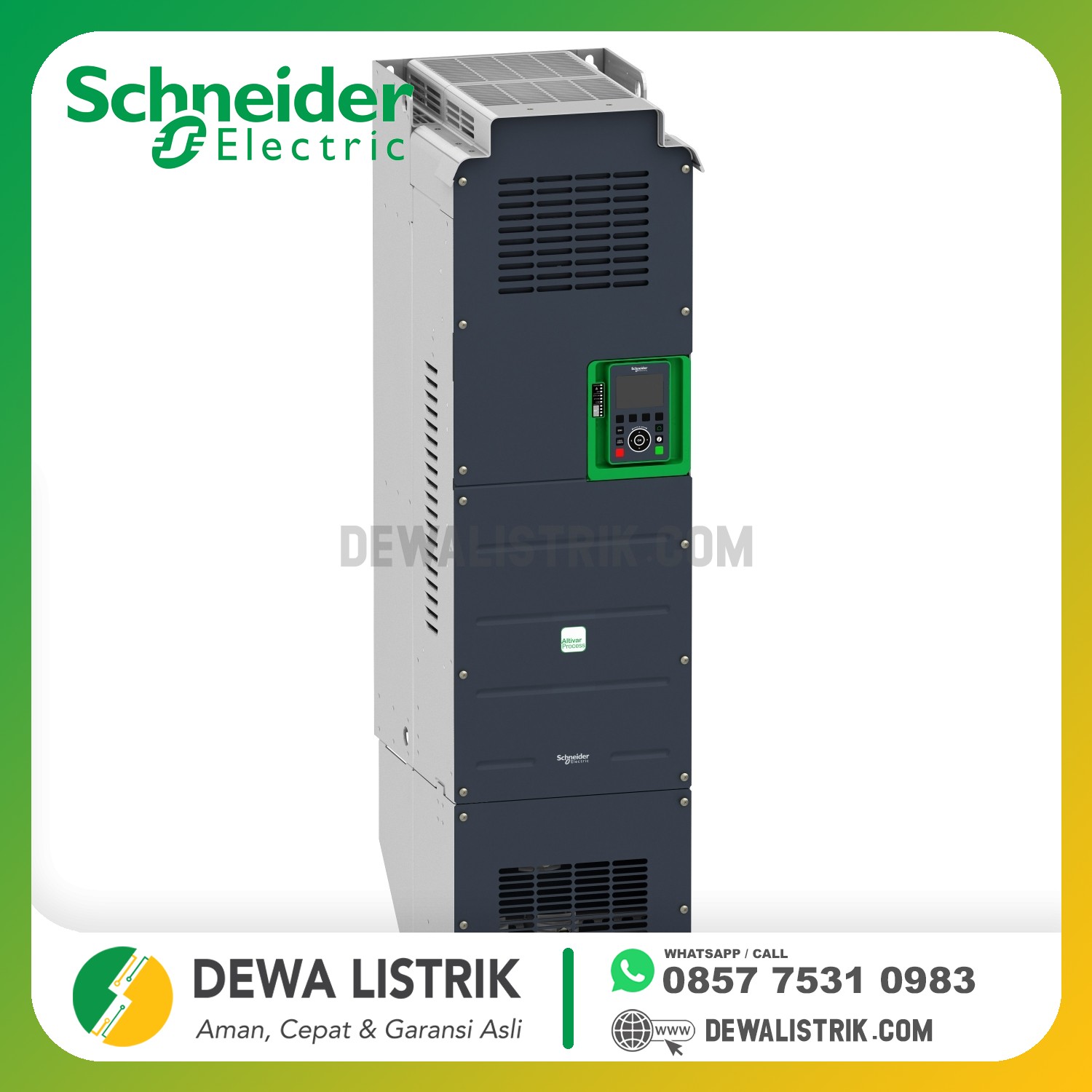

| range of product | Altivar Process ATV600 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Process and utilities |
| device short name | ATV630 |
| variant | Standard version |
| product destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| IP degree of protection | IP00 conforming to IEC 61800-5-1 IP00 conforming to IEC 60529 IP21 (with kit VW3A9704) conforming to IEC 61800-5-1 IP21 (with kit VW3A9704) conforming to IEC 60529 |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| motor power kW | 110 kW (normal duty) 90 kW (heavy duty) |
| motor power hp | 150 hp normal duty 125 hp heavy duty |
| line current | 201 A at 380 V (normal duty) 165 A at 480 V (normal duty) 170 A at 380 V (heavy duty) 143 A at 480 V (heavy duty) |
| prospective line Isc | 50 kA |
| apparent power | 121.8 kVA at 480 V (normal duty) 102.6 kVA at 480 V (heavy duty) |
| continuous output current | 211 A at 2.5 kHz for normal duty 173 A at 2.5 kHz for heavy duty |
| maximum transient current | 232.1 A during 60 s (normal duty) 259.5 A during 60 s (heavy duty) |
| asynchronous motor control profile | Constant torque standard Optimized torque mode Variable torque standard |
| synchronous motor control profile | Permanent magnet motor Synchronous reluctance motor |
| output frequency | 0.0001…0.5 kHz |
| speed drive output frequency | 0.1…599 Hz |
| nominal switching frequency | 2.5 kHz |
| switching frequency | 2.5...8 kHz with derating factor 2...8 kHz adjustable |
| safety function | STO (safe torque off) SIL 3 |
| discrete input logic | 16 preset speeds |
| communication port protocol | Modbus TCP Ethernet Modbus serial |
| option card | Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink |
